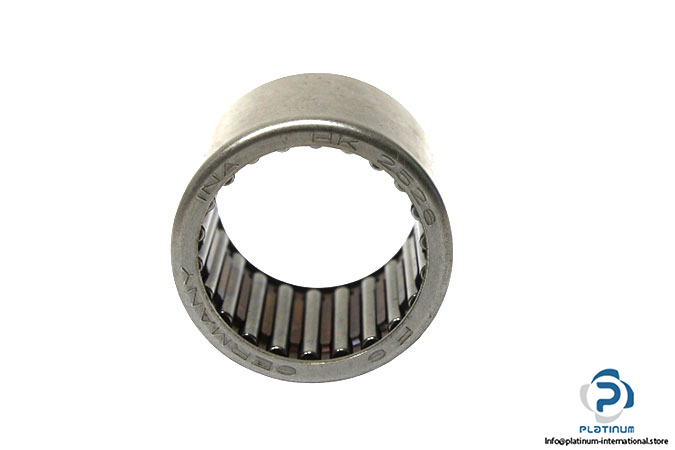

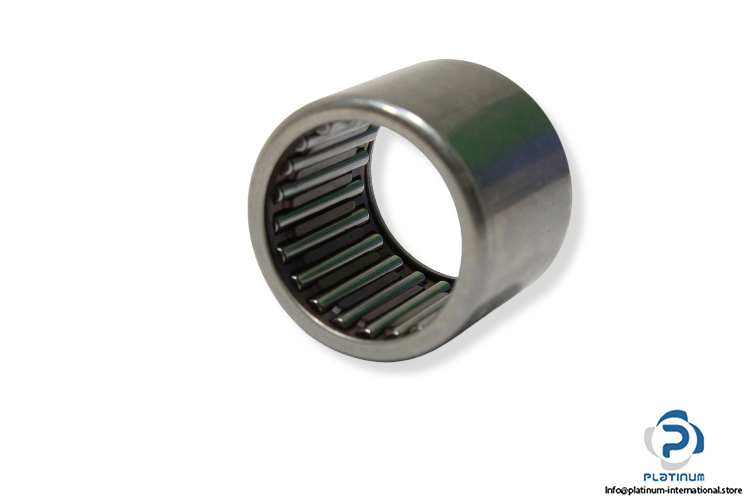

INA HK 2526 Drawn CUP Needle Roller Bearing

Manufacturer: Schaeffler INA

Type: Drawn cup needle roller bearing open end

Model: HK2526

Dimensions

Diameter under rollers F_w: 25 mm

Outer diameter D: 32 mm

Width outer ring C: 26 mm

Chamfer dimension drawn cup (outer ring) r_min: 0.8 mm

Basic load ratings:

Dynamic C: 25500 N

Static C₀: 45000 N

Fatigue load limit P_u: 6300 N

Limiting speed: 10200 rpm

Limiting speed for grease lubrication: 6100 rpm

Reference speed: 7300 rpm

Operating temperature: -30 °C…140 °C
