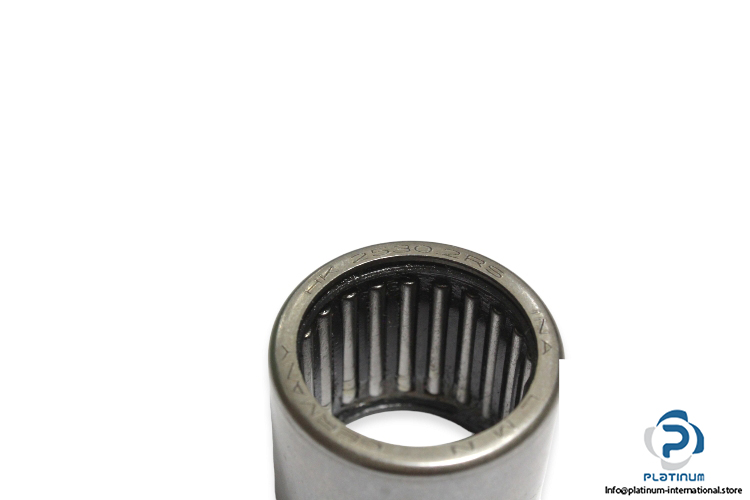

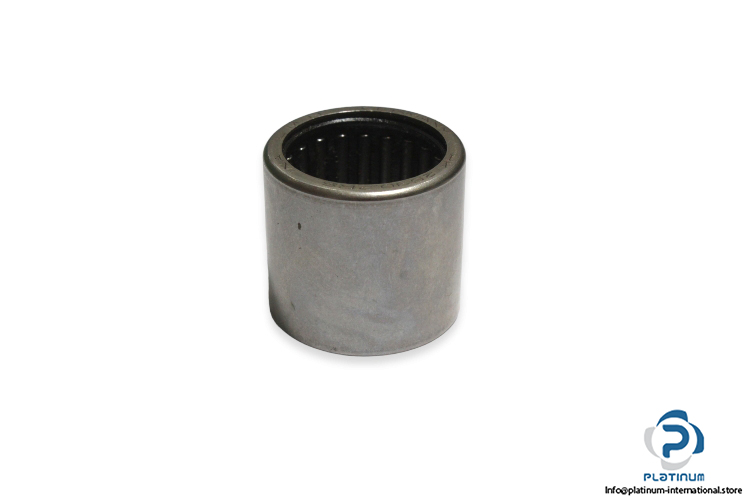

INA HK 2530 2RS Drawn CUP Needle Roller Bearing

Manufacturer: Schaeffler INA

Type:  Drawn cup needle roller bearing open end

Model: HK25302RS

Dimensions

Diameter under rollers F_w: 25 mm

Outer diameter D: 32 mm

Width outer ring C: 30 mm

Minimum chamfer dimension r_min: 0.8 mm

Basic load ratings:

Dynamic C: 25500 N

Static C₀: 45000 N

Fatigue load limit: 6300 N

Limiting speed: 6100 rpm

Limiting speed for grease lubrication: 6100 rpm

Lubricant: L271,Grease

Sealing: 2RS, Contact seal on both sides

Operating temperature: -20 °C…100 °C
