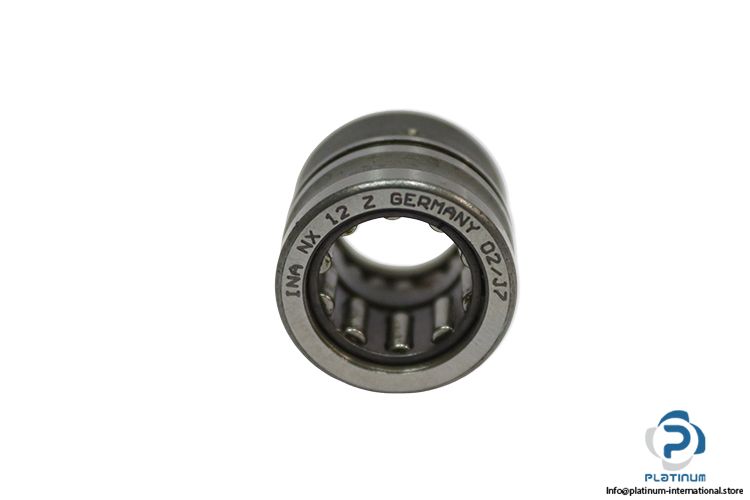

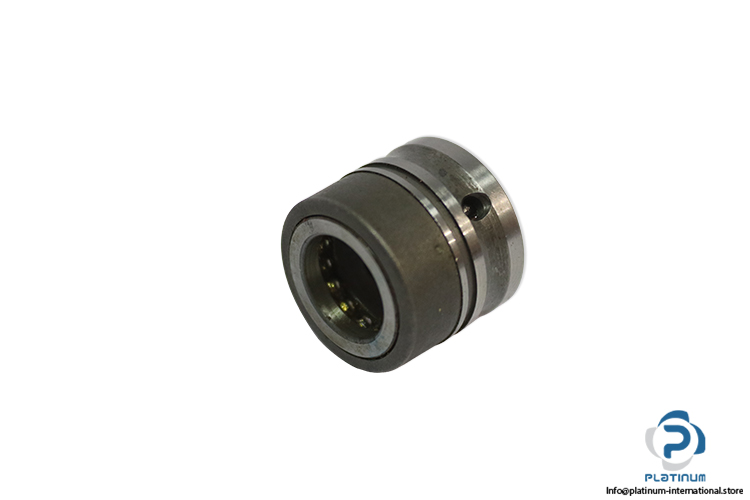

INA NX 12 Z Needle Roller/Axial Roller Bearing
Nouveau
En stock4 unitésPrêt à être expédié
19,99$
Roulement à aiguilles / rouleaux axiaux INA NX 12 Z roulement combiné à aiguilles et rouleaux axiaux avec alésage de 12 mm, conception étanche et haute capacité de charge radiale et axiale.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
INA NX 12 Z Needle Roller / Axial Roller Bearing
The INA NX 12 Z is a combined needle roller and axial roller bearing designed to support radial and axial loads within a compact bearing arrangement. It is suitable for applications requiring high load capacity and reliable rotational performance.
Manufacturer: INA / Schaeffler
Type: Needle Roller / Axial Roller Bearing
Model: NX 12 Z
| Bore Diameter (d) | 12 mm |
| Outer Diameter (D) | 21 mm |
| Width (C) | 18 mm |
| Dynamic Load Rating (Radial) | 5,400 N |
| Static Load Rating (Radial) | 4,300 N |
| Dynamic Load Rating (Axial) | 4,850 N |
| Static Load Rating (Axial) | 8,200 N |
| Fatigue Load Limit (Radial) | 840 N |
| Fatigue Load Limit (Axial) | 375 N |
| Limiting Speed | 9,500 rpm |
| Sealing | Z, Bearing with end cap |
