Kinco MT4532TE Human Machine Interface
Nouveau
En stock1 unitéPrêt à être expédié
399,99$
HUMAN MACHINE INTERFACE (HMI)
Kinco MT4532TE 10.1" TFT HMI (1024×600) with IP65 protection, 32‘bit 800 MHz RISC CPU, 128 MB Flash/64 MB SDRAM, Ethernet 10/100, USB, and multi‘protocol COM ports (RS232/RS485‘2/RS485‘4). Powered at 24 V DC (12 / 28 V range), designed for reliable, responsive operator control.10.11024x600128MB24v64MB800MHzCECertifiedCPUdcEthernetFlashHMIHumaninchIndustrialInterfaceIP65KincoMachineMT4000MT4532TEPanelportsResolutionRiscRS232RS485ScreenSdramSerialSeriesTFTTouchUSB
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

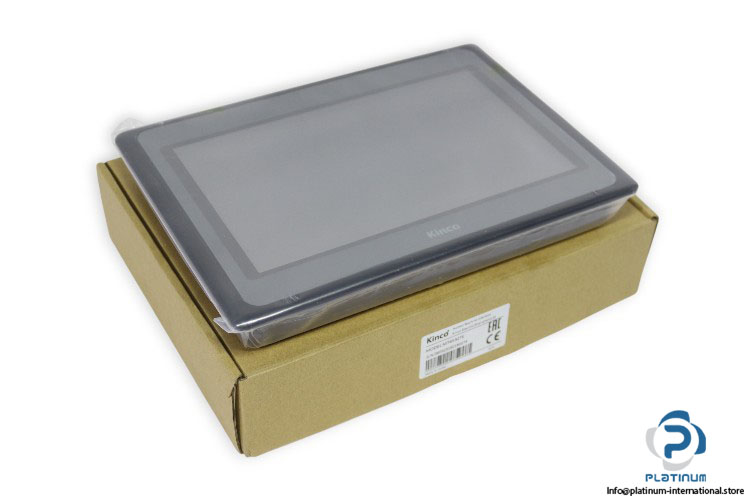

KINCO MT4532TE TOUCH SCREEN “ HUMAN MACHINE INTERFACE (HMI)
The Kinco MT4532TE is a 10.1" widescreen HMI built for reliable, responsive operator control. With an IP65 front, rich communications (Ethernet, multiple COM ports, USB), and a fast 32‘bit RISC CPU, it delivers smooth visualization and easy integration across industrial systems.

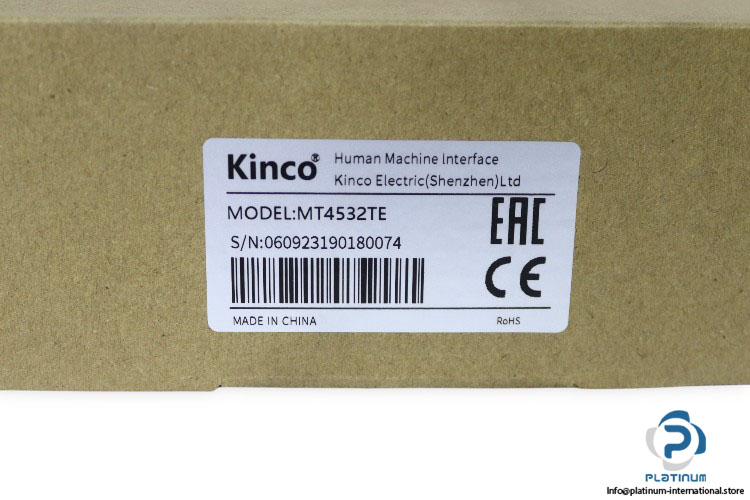

Manufacturer: KINCO
Type: Touch Screen “ Human Machine Interface
Model: MT4532TE
Series: MT4000
SN: 060923190180074
| Rated Power | 5.3 W |
| Rated Voltage | 24 V DC |
| Input Voltage Range | 12 / 28 V DC |
| Display | 10.1 16:9 TFT |
| Resolution | 1024 x 600 Pixels |
| Color | 65536 Colors |
| Backlight | LED |
| Brightness | 200 cd/m2 |
| Memory | 128 MB Flash, 64 MB SDRAM |
| CPU | 32-bit, 800 MHz RISC CPU |
| Operating Temperature | 0 / 50° C |
| Degree of Protection | IP65 |
| Dimensions | 280 x 193 x 36 mm |

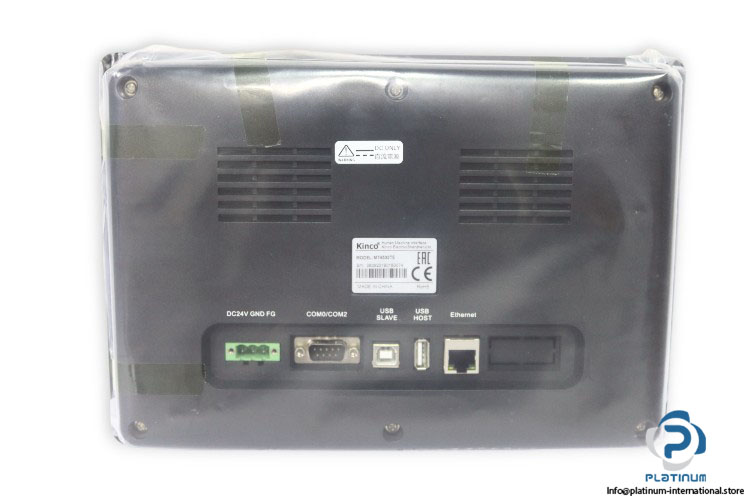

| Ports & Interfaces | Printer Port USB / Serial Port; Ethernet 10/100 Base‘T; Program Download via USB Slave / Serial Port / Ethernet |
| COM Ports | COM0: RS232 / RS485‘2 / RS485‘4, COM1: RS232 / RS485‘2 / RS485‘4, COM2: RS232 |
| Shell Material | ABS |
| Certifications | CE (EN61000‘6‘2:2005, EN61000‘6‘4:2007), FCC Class A |
