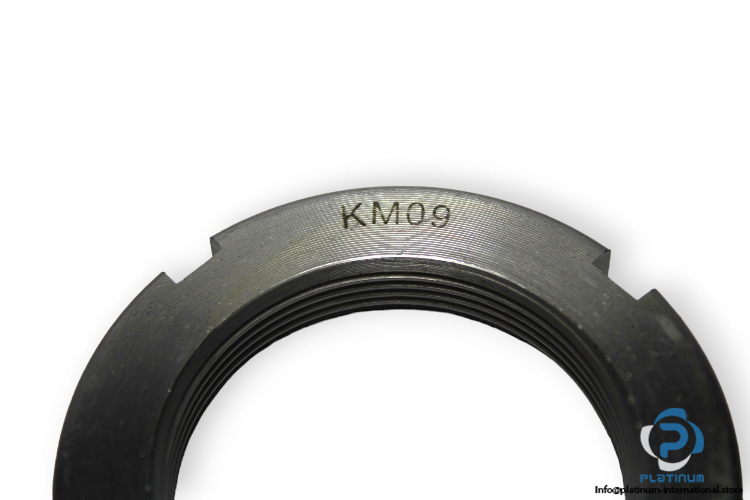

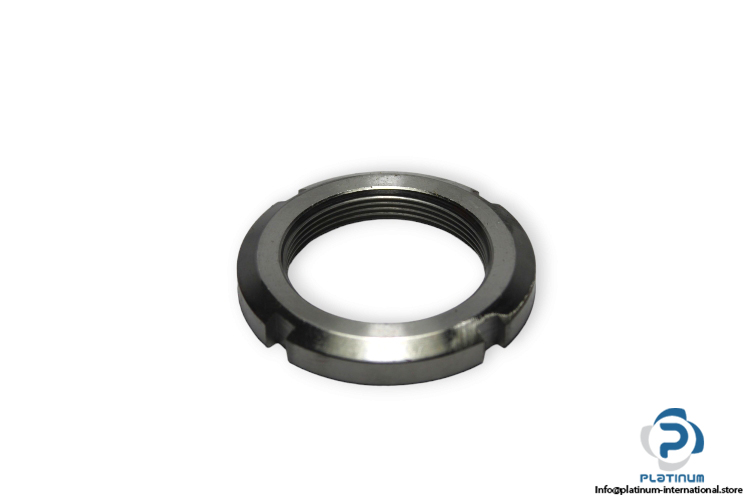

KM09 Lock NUT

Type: Locknuts
Model: KM 09

Thread designation G: M 45×1.5
Bore diameter d: 45 mm
Outside diameter d3: 65 mm
Width B: 10 mm
Diameter locating side face d1: 56 mm
Width locating slot b: 6 mm
Depth locating slot h: 2.5 mm
