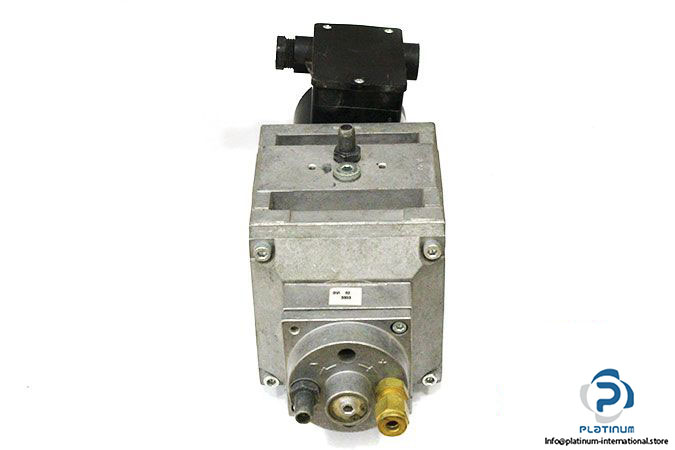

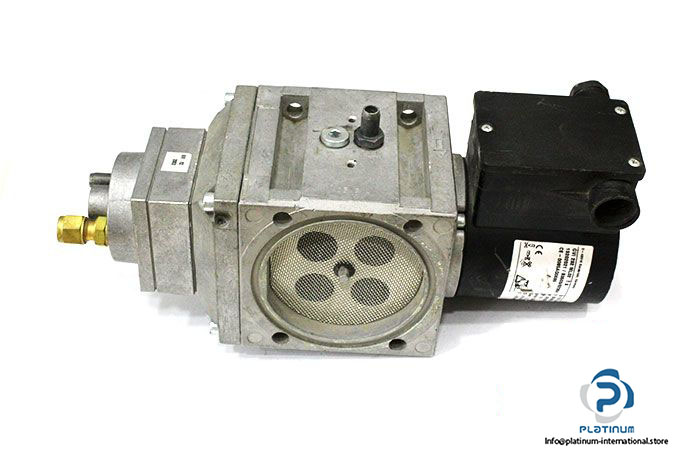

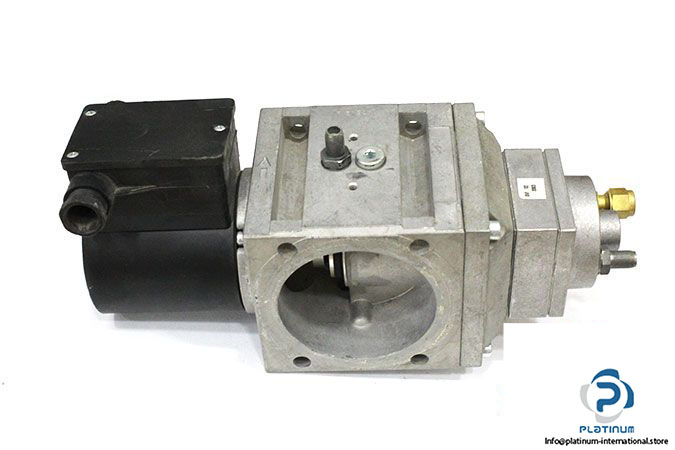

Kromschroeder GVI 232 ML02 T 3 Solenoid Valve With Gas/Air Ratio Control
400,00$
Manufacturer: KROMSCHRODER
Type: Solenoid Valve With Gas/Air Ratio Control

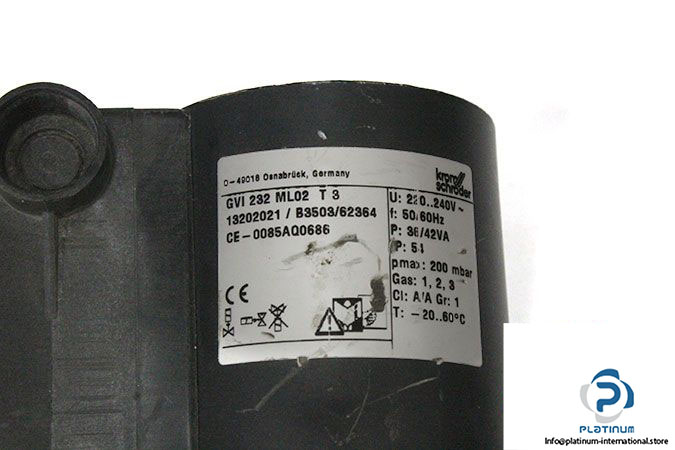

Model: GVI232ML02T3
MRN: 13202021 / B3503 / 62364
Air/gas ratio control for maintaining the gas-air ratio constant.when the solenoid valve opens the regulator maintains the gas outlet pressure constant dependent on the air impulse pressure, for minimum flow, the gas-air mixture is varied by adjusting the regulator spring. high fire is set by means of restrictors on the burner.
System: MODULINE
Power supply:
Voltage: 220 V AC
- Power: 36 VA/W
- Frequency: 50 Hz
Voltage: 240 V AC
- Power: 42 VA/ W
- Frequency: 60 Hz
Closing time: max. 1 sec.
Type of gas: natural gas, town gas, liquefied petroleum gas (LPG) and air.
Nominal diameter: 11/4 (DN 32)
Flow rate Kvs: 20 m3/h
Inlet pressure: max. 200 (100) mbar
Range of adjustment at minimum flow: -3 mbar … 8 mbar
Air control pressure pL: 0.5 … 120 mbar
Housing material: Aluminum
Valve disc material: Perbunan
Protection Class: IP54 IEC 529
Ambient temperature: -20 to +60° C
Weight: 3.4 kg
