Leuze Electronic MLD 500-T2 Safety Device Transmitter
Émetteur de faisceau lumineux de sécurité LEUZE ELECTRONIC MLD 500-T2 émetteur de la série MLD500 avec LED infrarouge, alimentation 24 V DC, protection IP67 et plage de fonctionnement de 0,5“50 m pour applications de sécurité industrielle.

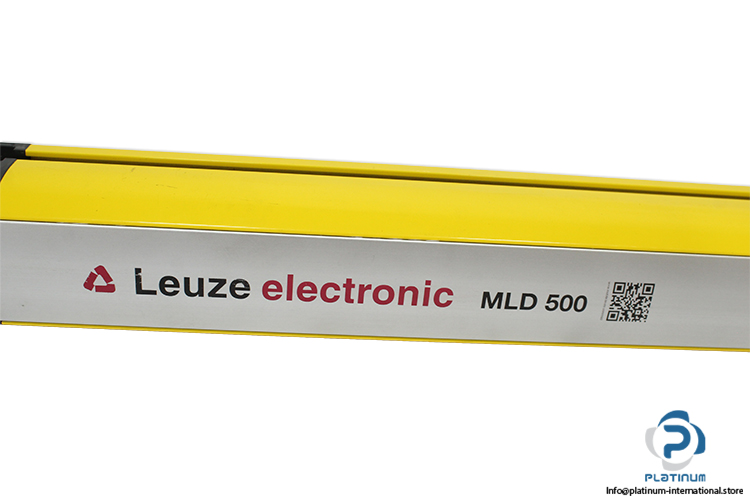

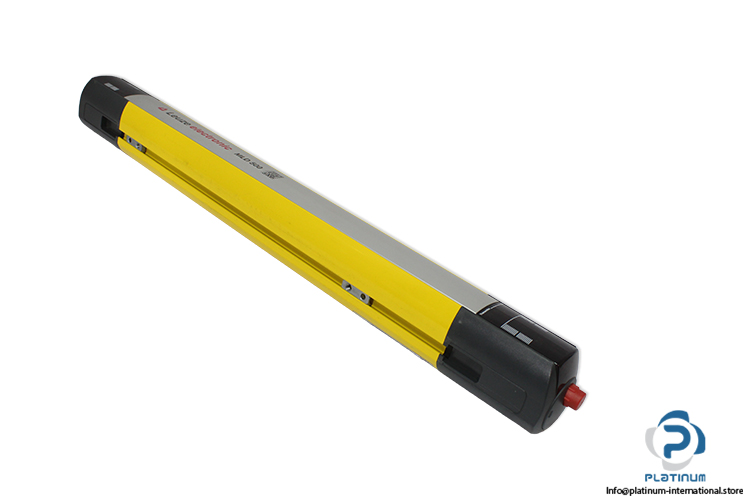

LEUZE ELECTRONIC MLD500-T2 Multiple Light Beam Safety Device Transmitter
The LEUZE ELECTRONIC MLD500T2 is a multiple light beam safety device transmitter from the MLD500 series. Designed for industrial safety applications, it operates with infrared LED technology and supports reliable protection beam deflection for safety light beam systems.

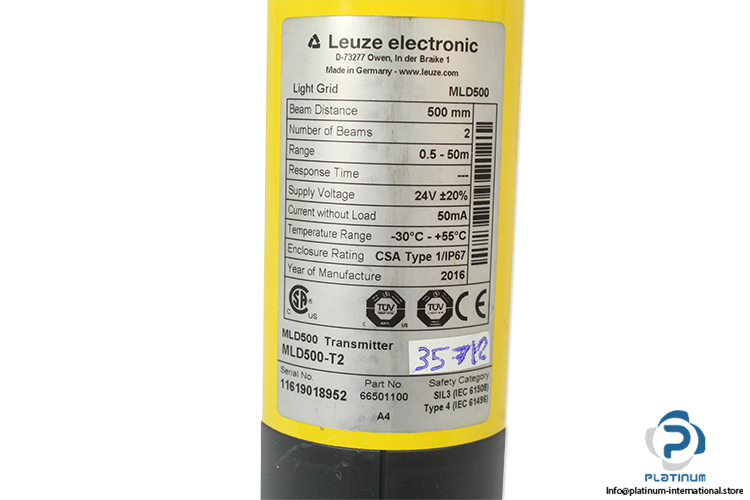

Manufacturer: LEUZE ELECTRONIC
Type: Multiple Light Beam Safety Device Transmitter
Model: MLD 500-T2
Part No.: 66501100
Serial No: 11619018952
| Series | MLD500 |
| Function | Deflecting Mirror for Single-Beam Deflection of the Protection Beam of Safety Light Beams |
| Beam Distance | 500 mm |
| Beams No. | 2 |
| Operating Range | 0.5 ... 50 m |
| Light Source | LED, Infrared |
| Wave Length | 850 nm |
| Supply Voltage | 24 V DC |
| Current Consumption Max. | 50 mA |
| Material | Aluminum |

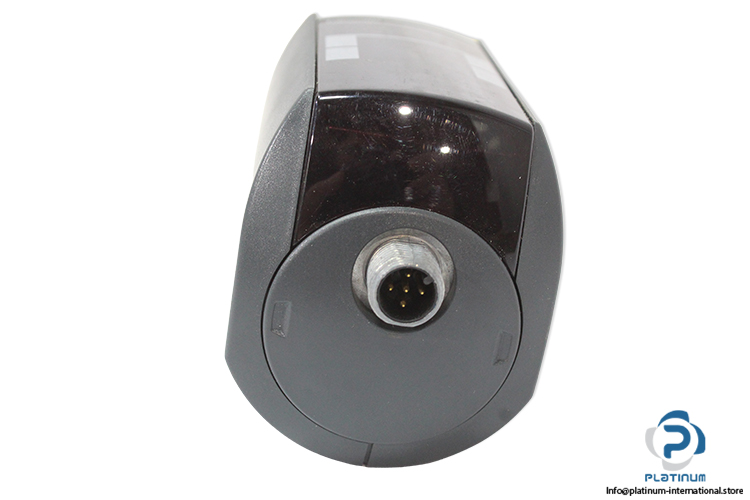

| Connection Type | Connector M12 5-Pin |
| Protection Class | IP67 |
| Ambient Temperature | -30 ... 55 °C |
| Dimensions | 52 x 600 x 64.7 mm |
