Linmot S01-72/1000 Power Supply Module
Nouveau
En stock1 unitéPrêt à être expédié
Switched-Mode Power Supply Linmot S01-72/1000 industrial switched-mode power supply with 72 V DC output, 1000 W power capacity, and wide 3-phase input range, ideal for automation and motion systems.
1000W3380500V72VAutomationdcDINEfficiencyHighIIndustrialLinmotModeModulePhasePowerrailSmpssupplyswitchedUnit
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

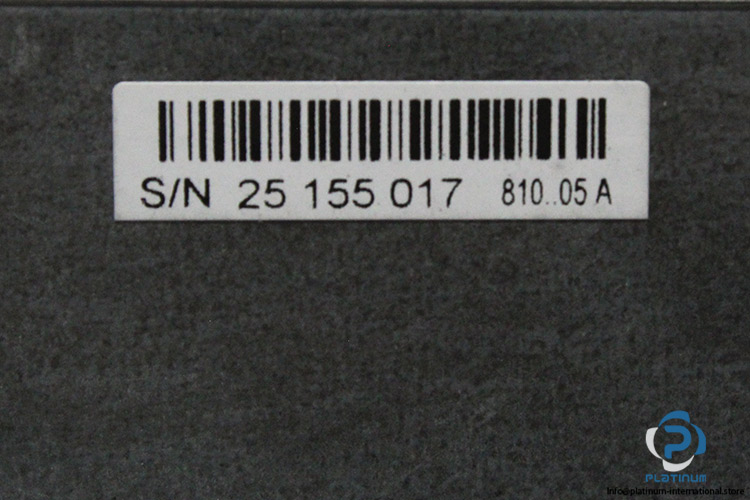

| Serial No. | 25 155 017 810 ... 05 A/ 03Y00J673520 |
| Part No. | SPH1013-7214/LI |
| Ref. No. | 14.5943.955 |
| Nominal input Voltage | 380-500 V AC / 3-phase |
| Input voltage | 340-550 V AC / 3-phase |
| Input current | 3.1 A |
| Frequency | 50/60 Hz |
| Internal fuses | 3x6.3AT / 250V |
| Output Voltage | 72 V DC |
| Output current | 13.5 A |
| Preset range Voltage | 56-80 V DC |
| Off voltage | 5 to 63 V DC |
| Output power | Max. 1000 W |
| Derating | 60-70°C/ 2 percent/K at +60°C |
| Size of wire | AWG11 Cu |
| Torque | 0.5 Nm, 5 lb in |
| Dimensions | 183 x 230 x 66 mm |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1097303 |
| Weight | 2,06 |
