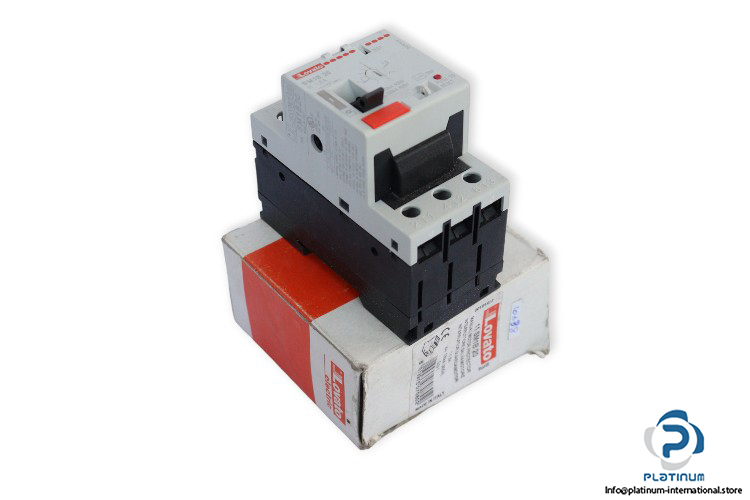

Lovato 11 SM1B 20 Motor Protection Circuit Breaker

Manufacture: Lovato electric

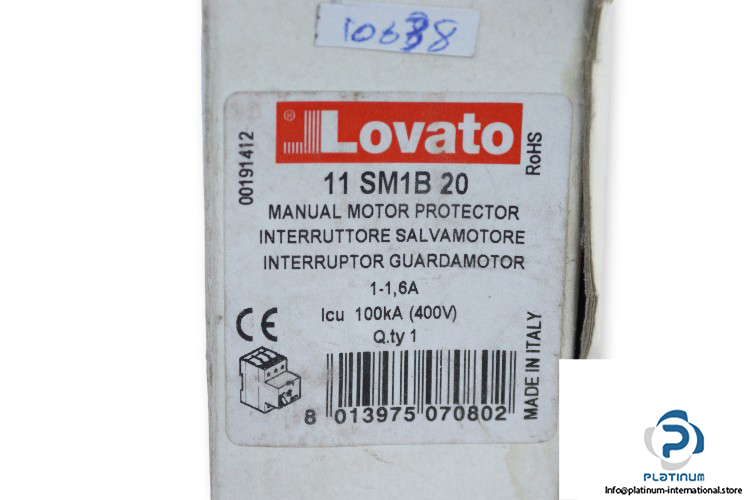

Type: Motor Protection Circuit Breaker / Manual Motor Protector

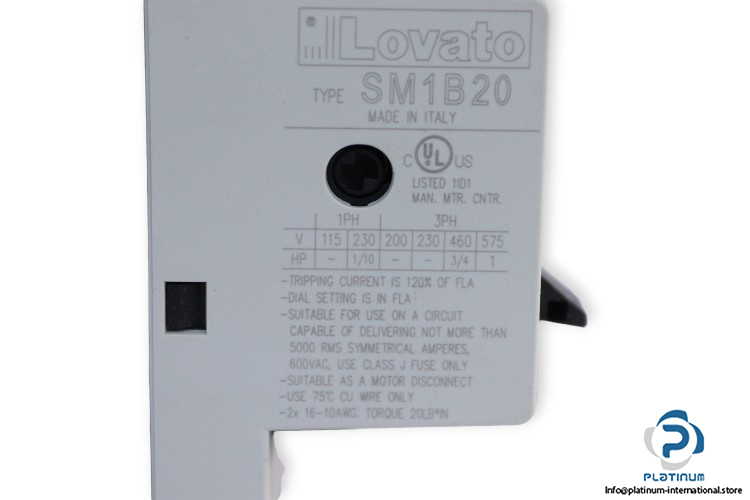

Model: 11 SM1B 20

No. of poles: 3
Rated insulation voltage Ui: 690 V
Rated impulse withstand voltage Uimp: 6 kV
Rated frequency: 50/60 Hz

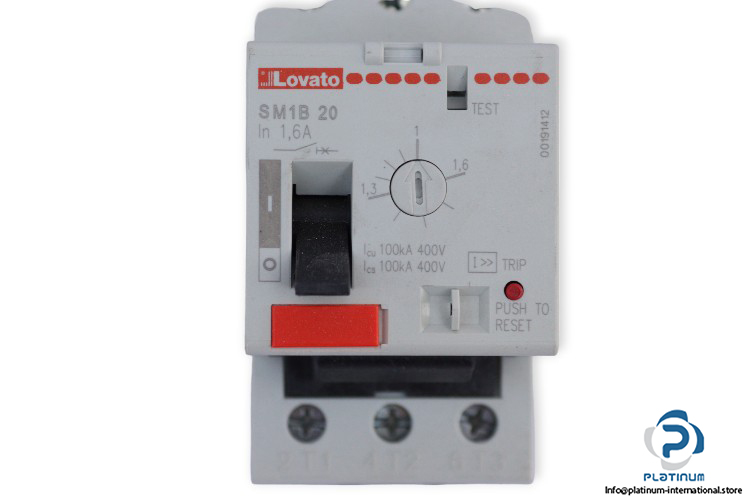

Thermal trip adjustment range: 1 … 1.6 A
Rated current (In): 2 A

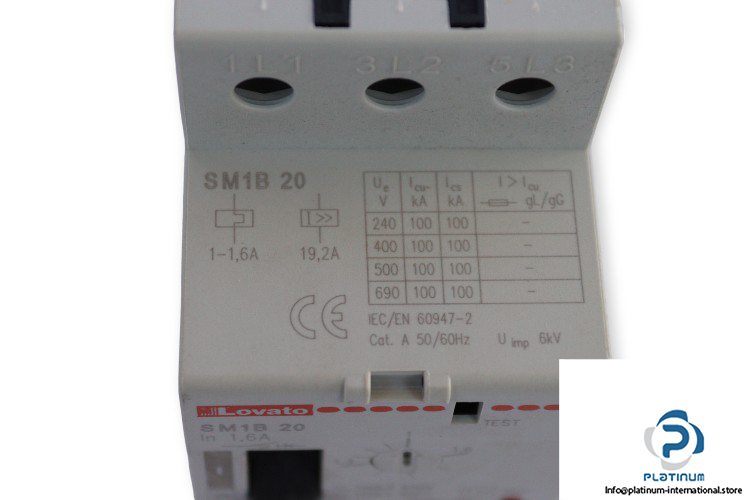

Operational short-circuit current breaking capacity (Ics) at AC: 400V, 100 kA
Maximum short-circuit current breaking capacity (Icu) at AC:
400V, 100 kA
Standard: IEC / EN 60947-2
Fixing: Screw / DIN rail, 35mm
Operating temperature: -20 … 60°C
