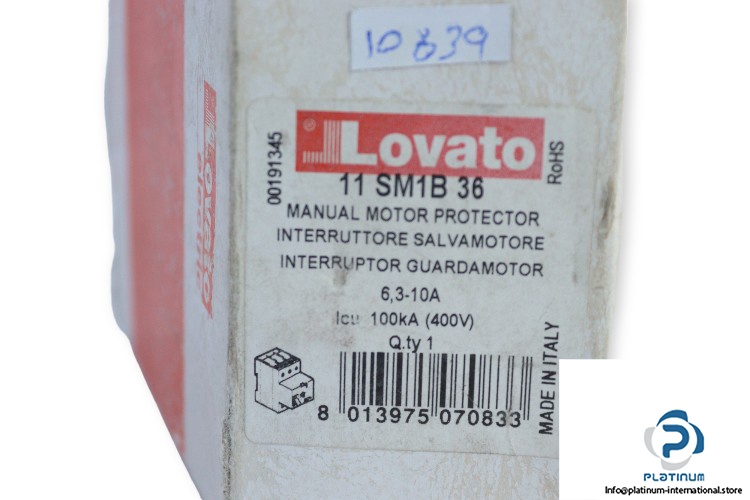

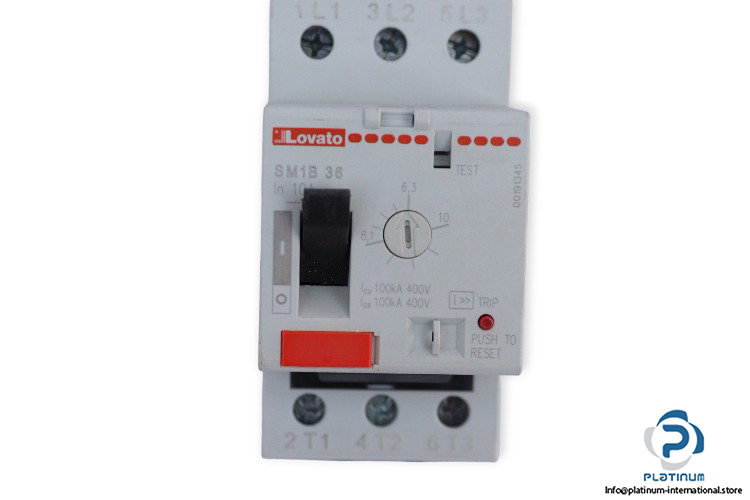

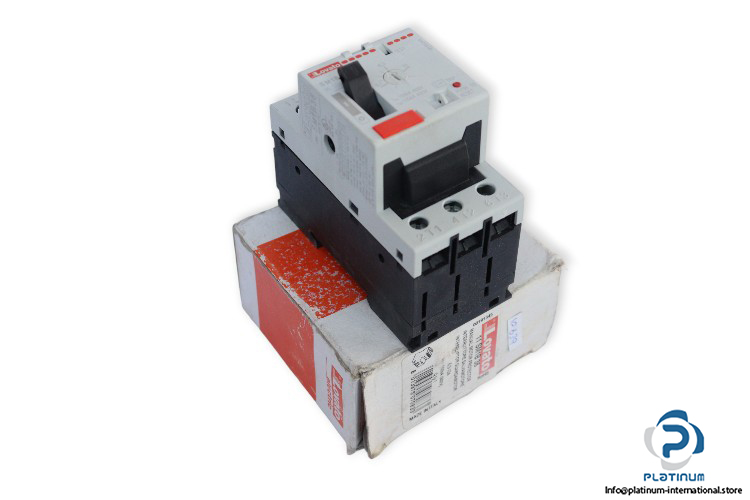

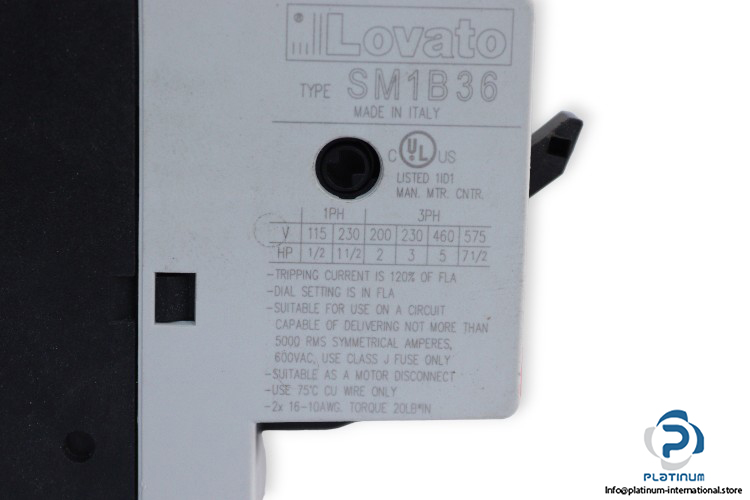

Lovato 11 SM1B 36 Motor Protection Circuit Breaker

Manufacture: Lovato electric
Type: Motor Protection Circuit Breaker / Manual Motor Protector
Model: 11 SM1B 36

No. of poles: 3
Rated insulation voltage Ui: 690 V
Rated impulse withstand voltage Uimp: 6 kV
Rated frequency: 50/60 Hz
Thermal trip adjustment range: 6.3 … 10 A
Rated current (In): 10 A
Operational short-circuit current breaking capacity (Ics) at AC: 400V, 100 kA
Maximum short-circuit current breaking capacity (Icu) at AC:
400V, 100 kA
Fixing: Screw / DIN rail, 35mm
Power terminal protection according to IEC/EN 60529: IP20
Operating temperature: -20 … 60°C
