Mapro CL 22/01 VL Side Channel Blower
Nouveau
Disponible sur demande
2 500,00$
SIDE CHANNEL BLOWER
Industrial-grade side channel blower by Mapro with explosion-protected ABB motor, delivering high negative and positive pressure performance in vacuum and pneumatic systems.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

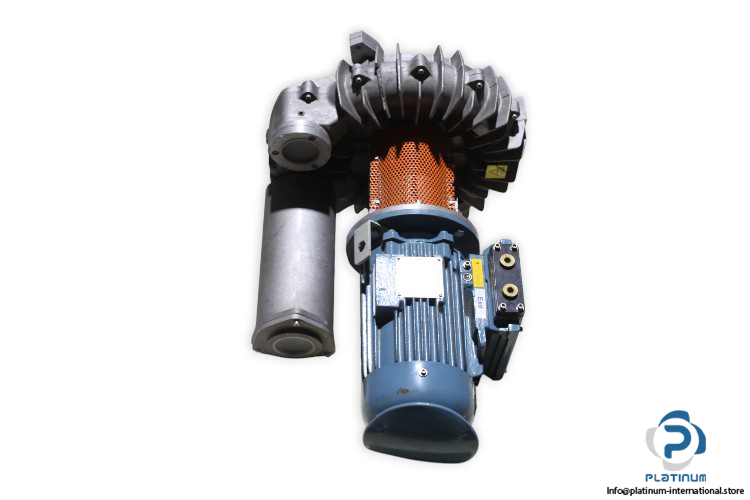

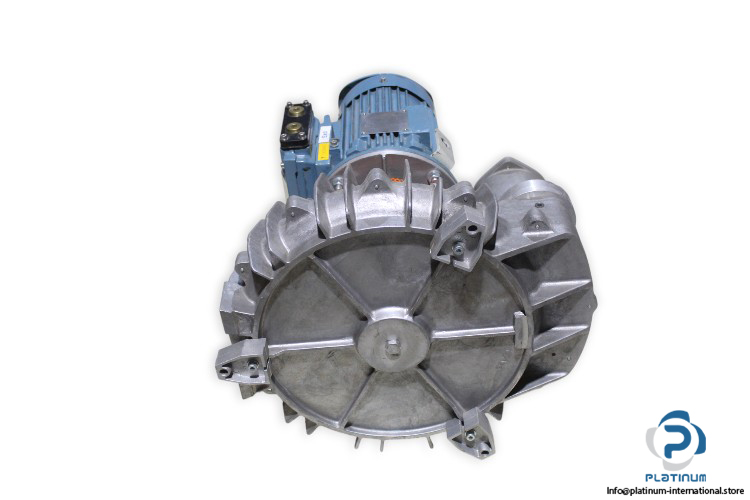

MAPRO CL 22/01 VL SIDE CHANNEL BLOWER
The Mapro CL 22/01 VL is a high-performance single-channel side blower, ideal for vacuum and pressure applications requiring reliable and explosion-protected operation. It is equipped with an ABB explosion-proof motor for enhanced safety and continuous duty in industrial environments.

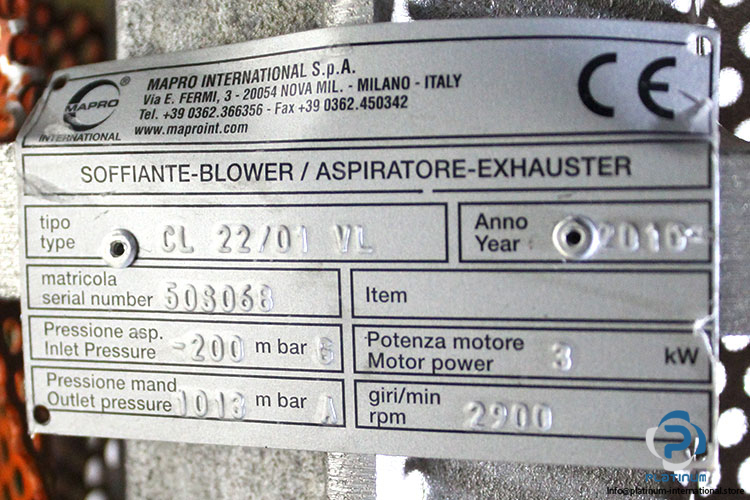

Manufacturer: Mapro
Type: Side Channel Blower
Model: CL 22/01 VL
Serial No.: 50S068
Technical Information
| Channel Design | Single |

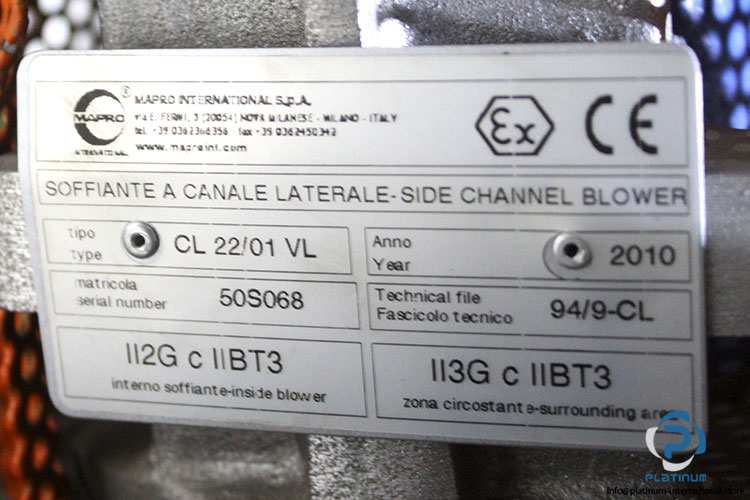

| Protection Explosion | II2G c IIBT3 / II3G c IIBT3 |
| Rated Pressure (in/out) [hPa] | -200 / 1013 |
| Rated Speed [rpm] | 2900 |
| Rated Power [kW] | 3 |

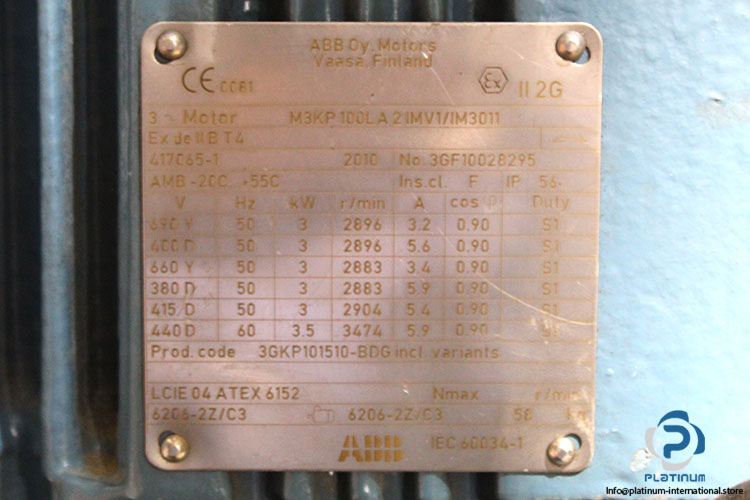

| ATTACHMENT | ABB MOTOR M3KP 100L A 2IMV1/IM3011 |
| Code | 3GKP101510-BDG / 417065-1 |
| Part No. | 3GF10028295 |
| Design | Totally enclosed fan cooled squirrel cage motor with cast iron frame, dust ignition proof |
| Rated Power [kW] | 3 / 3.5 |
| Supply Voltage [V] | 690 / 400 / 660 / 380 / 415 / 440 |
| Rated Current [A] | 3.2 / 5.6 / 3.4 / 5.9 / 5.4 / 5.9 |
| Rated Speed [rpm] | 2896 / 2883 / 2904 / 3474 |
| Frequency [Hz] | 50 / 60 |
| Protection Class [IP] | 55 |
| Power Factor [cos] | 0.90 |
| Duty | S1 |
| Insulation Class | F |
| Temperature Range | -20 to 55 °C |
| Protection Enclosure | Ex de IIB T4 |
| Bearing | 6206-2Z/03 |
