Martonair SM/925 D 200 ISO Cylinder
Utilisé
En stock1 unitéPrêt à être expédié
ISO Cylinder
The Martonair Norgren SM/925 D ISO Cylinder features a 2.50 inch bore, 200 mm stroke, double-acting mode, and square frame for reliable pneumatic performance.102.502003/8ActingActuatorAirAutomationbarboreCompressedconnectionCylinderDDoubleframeGinchIndustrialISOMartonairmmNorgrenPneumaticPressureSM/925SquareStroke
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

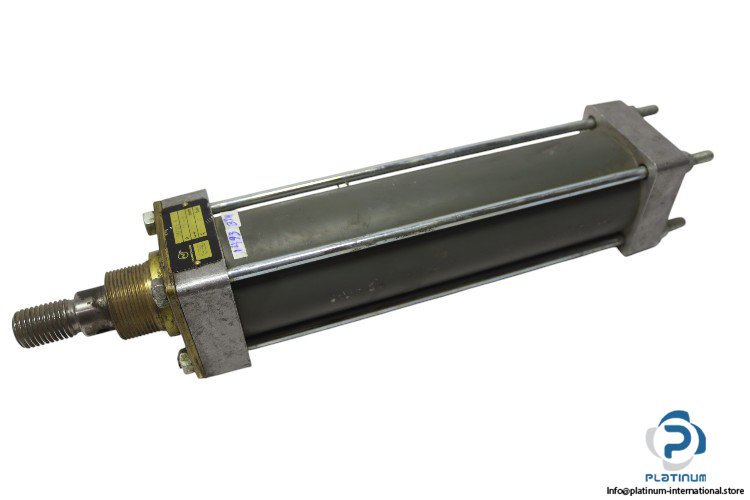

Martonair Norgren SM/925 D ISO Cylinder
The Martonair Norgren SM925D ISO Cylinder is a robust pneumatic actuator built for precision and reliability in industrial applications. With a square frame, double-acting operation, and G 3/8 pneumatic connection, it ensures consistent performance under demanding conditions.
Manufacturer: Martonair Norgren
Type: ISO Cylinder
Model: SM/925 D
| Media | Compressed Air |
| Bore Diameter | 2.50 Inch |
| Stroke | 200 mm |
| Bore x Stroke | 2.50 Inch x 200 mm |
| Rod Diameter | 25 mm |
| Frame Dimensions | 76 x 335 mm |
| Pressure Max. | 10 bar |
| Pneumatic Connection | G 3/8 |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
