Martonair SPWG/4519 ISO Cylinder
Utilisé
En stock1 unitéPrêt à être expédié
ISO Cylinder
The Martonair Norgren SPWG/4519 ISO Cylinder is a compact pneumatic actuator featuring a 50 x 50 mm bore and stroke, 16 bar pressure rating, square body, and G 1/4 pneumatic connection.1/41650ActingActuatorAirAutomationbarboreCompressedconnectionCylinderdiameterDoubleEndframeGIndustrialISOmaleMartonairmmNorgrenPneumaticPressureRODSPWG/4519SquareStroke
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

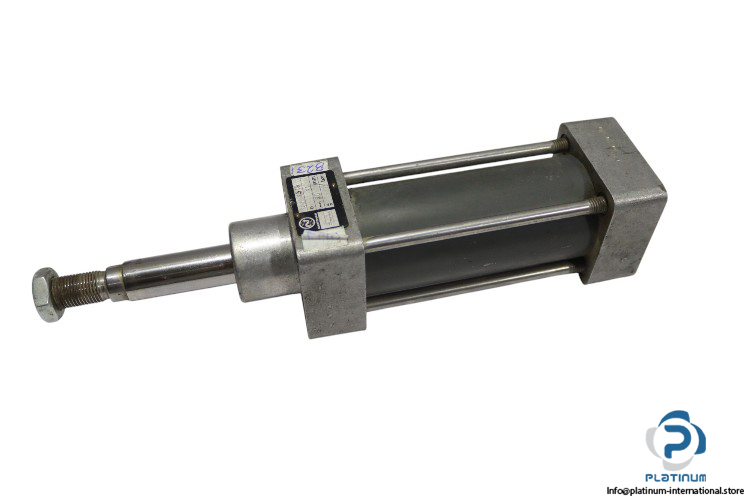

Martonair Norgren SPWG/4519 ISO Cylinder
The Martonair Norgren SPWG4519 ISO Cylinder is a compact and efficient pneumatic actuator designed for reliable operation in industrial environments. Featuring a square shape and one-sided rod direction, it offers robust performance with a maximum pressure of 16 bar and precise stroke control.
Manufacturer: Martonair Norgren
Type: ISO Cylinder
Model: SPWG/4519
| Media | Compressed Air |
| Bore Diameter | 50 mm |
| Stroke | 50 mm |
| Bore x Stroke | 50 x 50 mm |
| Rod Diameter | 20 mm |
| Frame Dimensions | 64 x 210 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max. | 16 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
