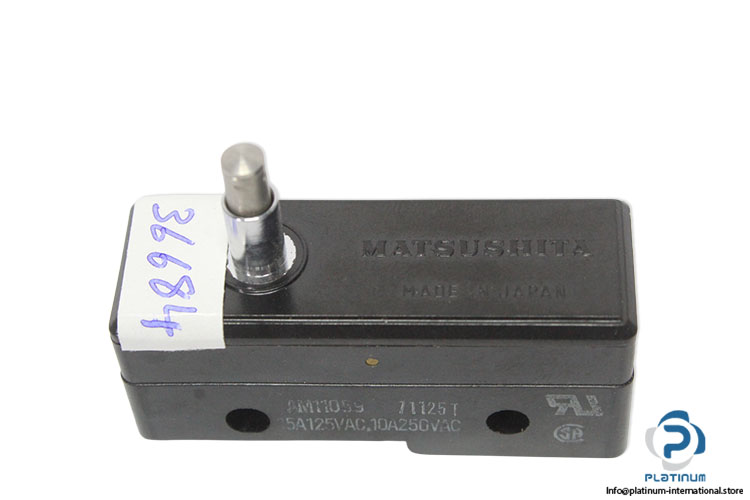

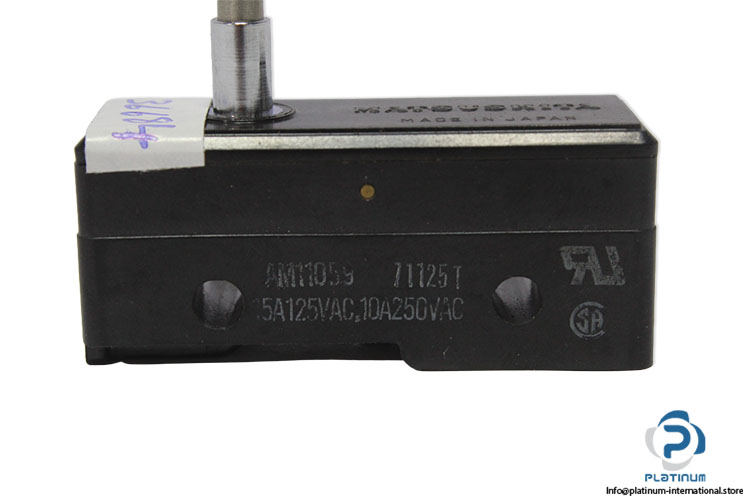

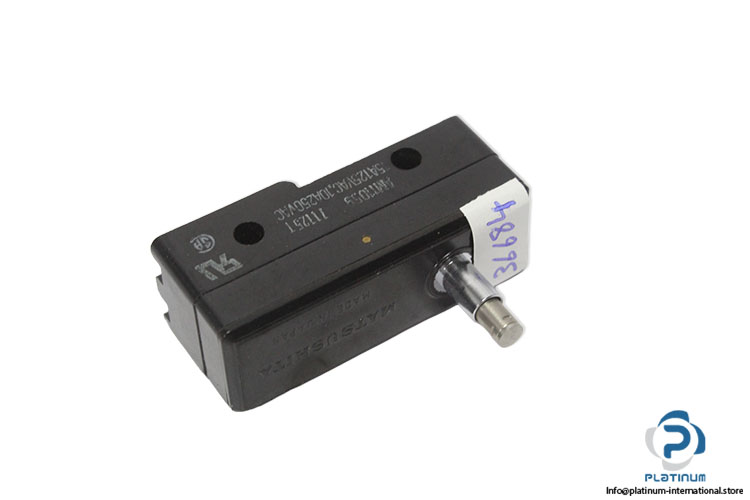

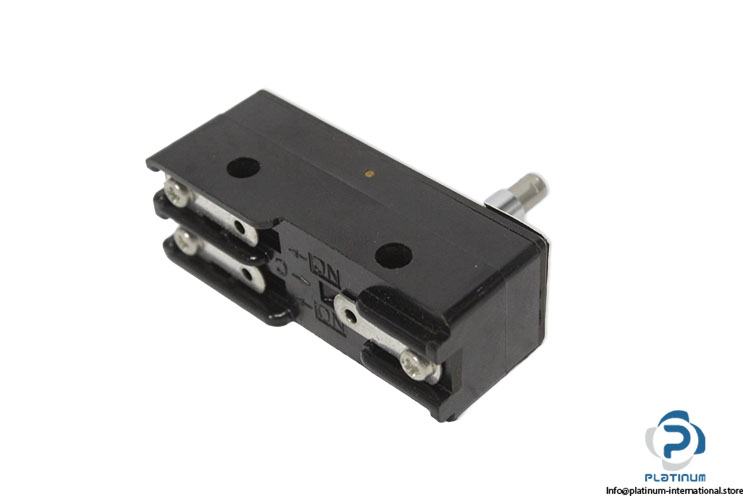

Matsushita AM11059 Plunger Basic Switch
Nouveau
En stock1 unitéPrêt à être expédié
Panasonic Matsushita AM11059 Basic Switch Industrial AM1 series basic switch with overtravel plunger actuator, screw terminal connections, and electrical ratings up to 10A at 250 VAC for automation and control applications.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
| Series | AM1 |
| Contact arrangement | Flat, screw terminal |
| Type of switch | NZ basic (AM1) switch |
| Type of Actuators | Overtravel plunger |
| Electrical rating | 5A,125VAC,10A,250VAC |
| Operating force, max. | 3.63 N |
| Release force, min. | 1.12 N |
| Pretravel, max. | 0.4 mm |
| Movement differential, max. | 0.05 mm |
| Allowable operating speed (at no load) | 0.1 to 1,000 mm/sec. (at pin plunger position) |
| Max. operating cycle rate (at no load) | 240 cpm |
| Ambient temperature | –25°C to +80°C |
| Condition | New |
| SKU | 1099396 |
| Weight | 0,03 |
