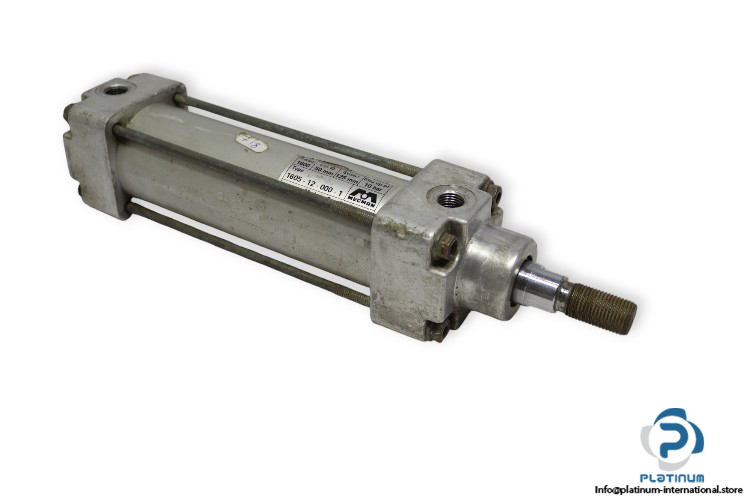

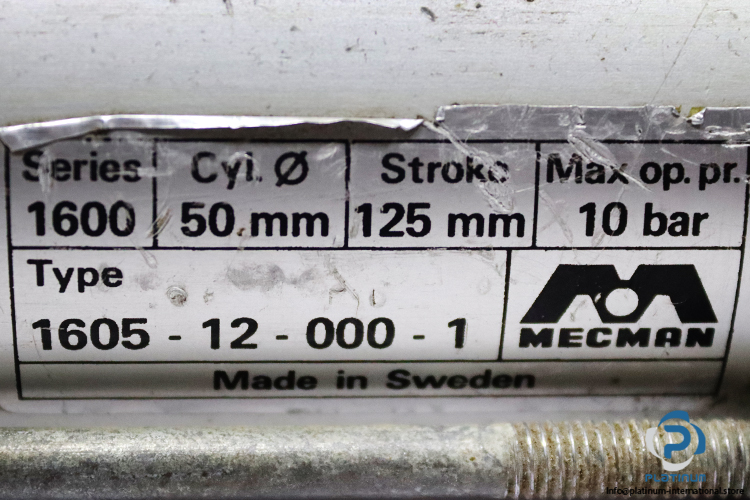

Mecman 1605-12-000-1 ISO Cylinder
Manufacturer: Mecman
Type: ISO Cylinder
Model: 1605120001
Media: Compressed Air
Stroke (mm): 125
Bore diameter (mm): 50
BorexStroke (mm): 50×125
Rod diameter (mm): 20
Fram Dimensions (mm): 250×63
Maximum pressure (bar): 10
Pneumatic connection: G1/4
Mode of operation: Double
Piston rod end: Male
Shape: Square
Rod Direction: One Side
