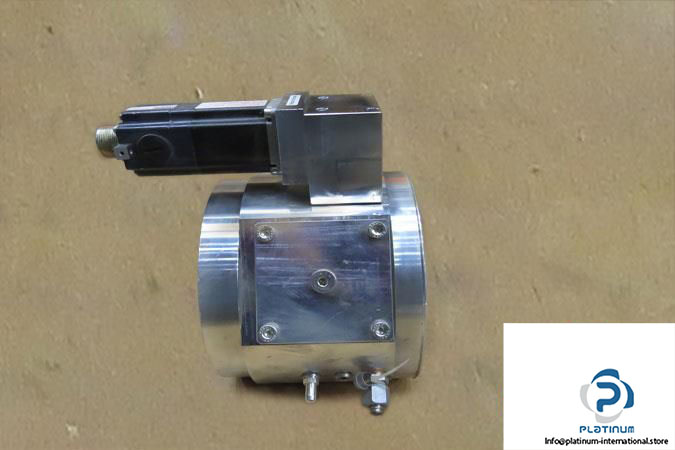

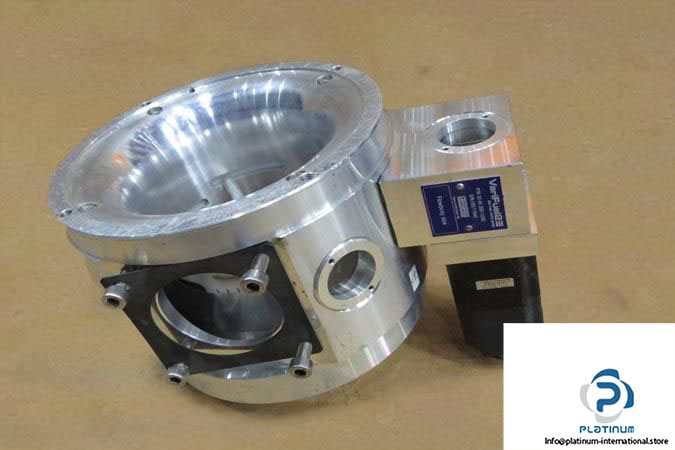

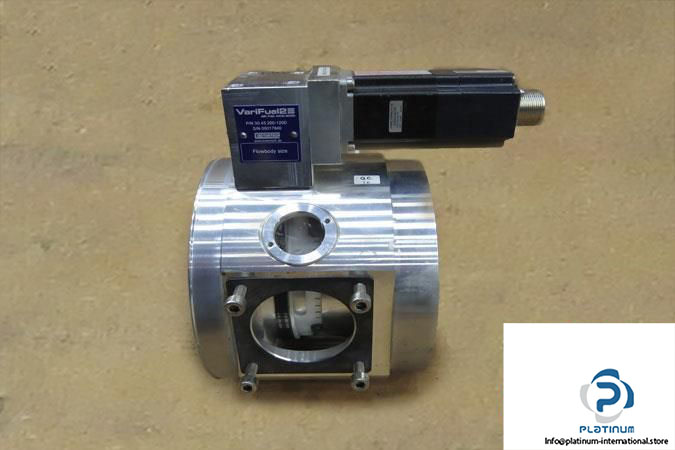

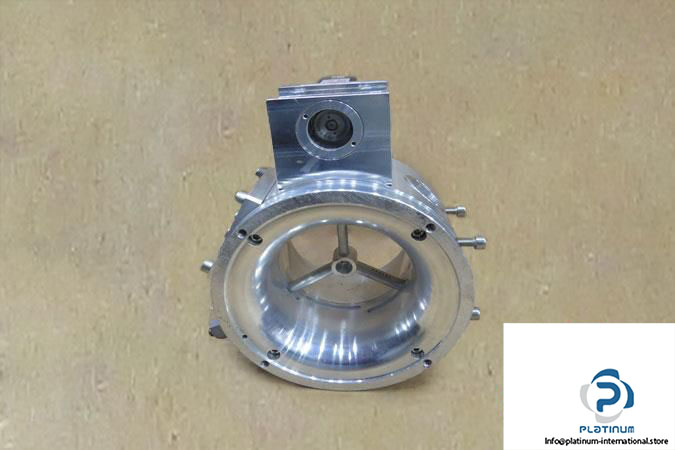

Motortech VARIFUEL2 30.45.200-120D Air/Fuel Ratio Mixer
900,00$
MIXEUR AIR/CARBURANT MOTORTECH VARIFUEL2 Série 200-120D assure un contrôle stable du mélange air/carburant avec un débit élevé jusqu'à 3200 m³/h et une modulation précise grâce à un moteur pas à pas biphasé intégré. Idéal pour l'optimisation des moteurs à gaz.
MOTORTECH VARIFUEL2 AIR/FUEL RATIO MIXER “ SERIES 200-120D
The MOTORTECH VARIFUEL2 air/fuel ratio mixer is engineered for precise gas engine control, offering high air throughput and integrated stepper motor actuation. Ideal for optimizing combustion across various industrial engine systems.
Manufacturer: MOTORTECH
Model: VARIFUEL2
Series: 200-120D
Type: AIR/FUEL RATIO MIXER

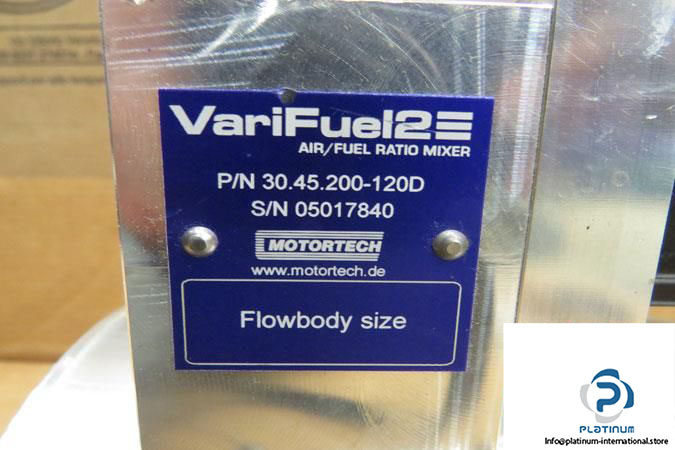

Product No.: 30.45.200-120D
INCLUDING MOTORTECH VARIFUEL2 STEPPER MOTOR

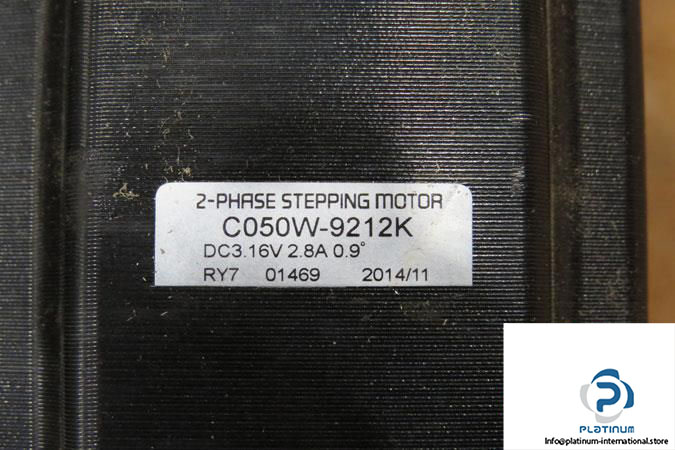

Stepper Motor Technical Information
| Air Consumption | 700 / 3200 m³/h |
| Suitable for Flow Bodies with Diameter | 23 / 107.5 mm |
| Temperature Range | -10 / 80 °C |

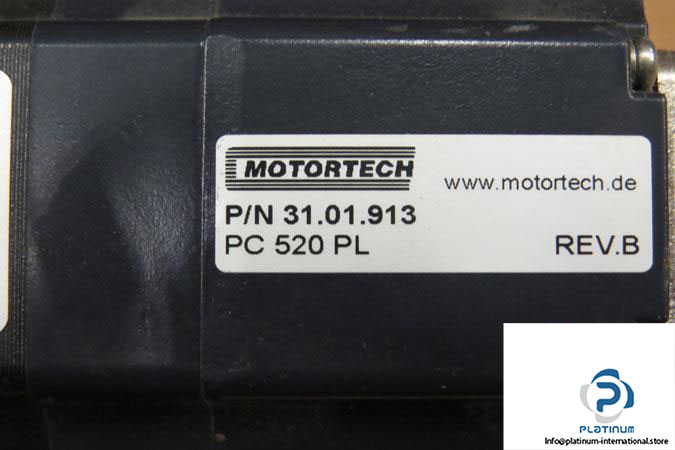

| Product No. | 31.01.913 / PC 520 PL |
| Production Code | 520 PL |
| Revision | B |
| Holding Torque | 1.75 Nm |
| Voltage | 3.16 V DC |
| Current | 2.8 A |
| Step Angle | 0.9° |
| Rotation Angle | 330° |
| Encoder Type | Incremental quadrature with index signal |
| Measuring Method | Magnetic |
| Resolution | 4096 CPR |
