Murr BN-MT BUS Node
Nœud de bus Murr Bus Node TCP BN-MT « Un nœud bus Modbus TCP Cube20S compact avec fonctionnement en 24 V DC, capacité de charge de 10 A, 8 pôles, et protection IP20. Supporte jusqu’à 64 modules d’extension pour systèmes d'automatisation industrielle."

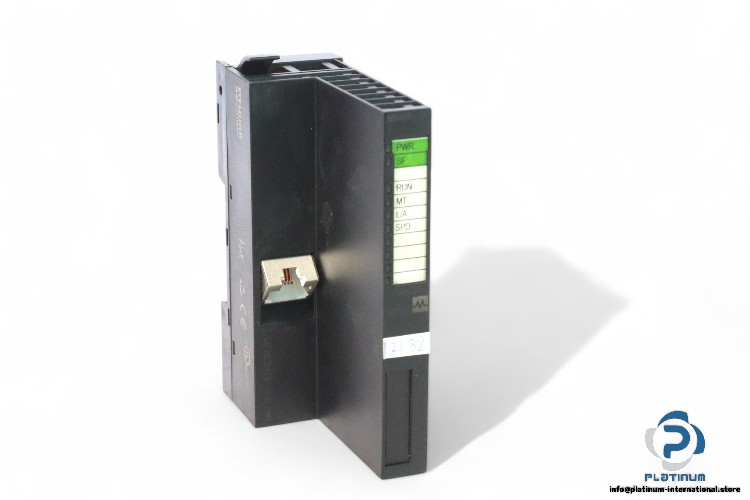

BUS NODE TCP BN-MT by Murr
The Murr Bus Node TCP BN-MT, also known as the Cube20S Modbus TCP Bus Node, is a high-performance passive junction block designed for reliable communication in industrial automation systems. This device features an IP20 degree of protection, ensuring durability in standard industrial environments.
Key features include:
- Operating Voltage (DC): 24 V DC
- Max Current Consumption: 95 mA
- Total Current UA Max.: 10 A
- Output Voltage (DC): 24 V
- Max Current Output Load Supply: 10 A
- Max Current Output Backplane Bus: 3 A
- Address Range Outputs Max.: 1024 Bytes
- Number of Poles: 8 (female)
- Max Number of Extension Modules: 64
- Family Construction Form: RJ45
- Degree of Protection: IP20
- Ambient Temperature: 0 / 60 °C
- Dimensions: 48.5 x 109 x 76.5 mm
With its compact design and robust construction, the Murr Bus Node TCP BN-MT ensures efficient and secure communication in networked systems, supporting up to 64 extension modules and offering versatile integration capabilities with Modbus TCP protocols.
