Nachi Ucfl 210 Oval Flange Ball Bearing Unit
Unité de palier à billes à bride ovale L'unité de palier à billes Nachi UCFL210 comprend un alésage cylindrique de 50 mm, un carter FL 210 et un roulement UC 210. Conçue pour la précision et la durabilité, elle garantit des performances fiables dans les systèmes industriels.

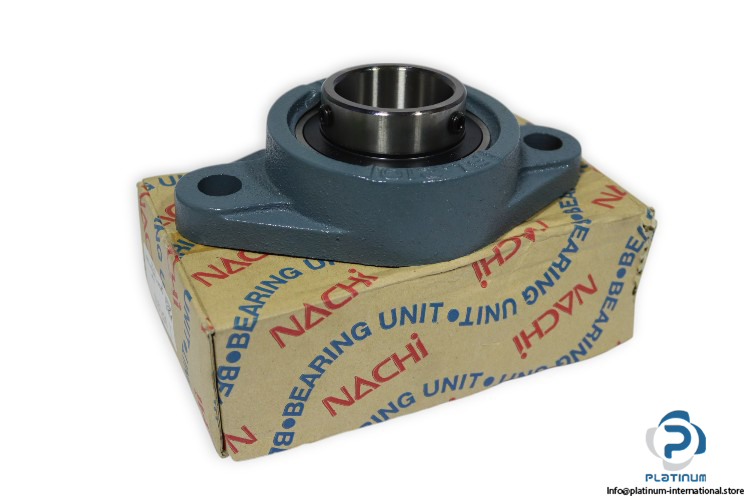

Nachi UCFL210 Oval Flange Ball Bearing Unit
The Nachi UCFL210 Oval Flange Ball Bearing Unit is a durable and precision-engineered solution for industrial applications. Featuring the FL 210 housing and UC 210 bearing, this unit delivers reliable performance and stability in demanding environments. Its cylindrical bore design ensures smooth operation and accurate alignment.
Manufacturer: Nachi
Type: OVAL FLANGE BALL BEARING UNIT (Cylindrical Bore)
Model: UCFL210
Basic Load Rating:
Designed for durability and reliability, the Nachi UCFL210 Oval Flange Ball Bearing Unit is an excellent choice for industrial systems requiring precision and consistent performance.
| Housing No. | FL 210 |
| Bearing No. | UC 210 |
| Bore Diameter (d) | 50 mm |
| Overall Length (L) | 115 mm |
| Width of Inner Ring (B) | 51.6 mm |
| Overall Height (H) | 197 mm |
| Distance Between Attachment Bolts (J) | 157 mm |
| Overall Unit Width (A0) | 54.6 mm |
| Diameter of Attachment Bolt Hole (N) | 19 mm |
| Dynamic (Cr) | 35500 N |
| Static (C0r) | 23200 N |
| Mounting | Oval Flange |
| Locking Device | Set Screw |
