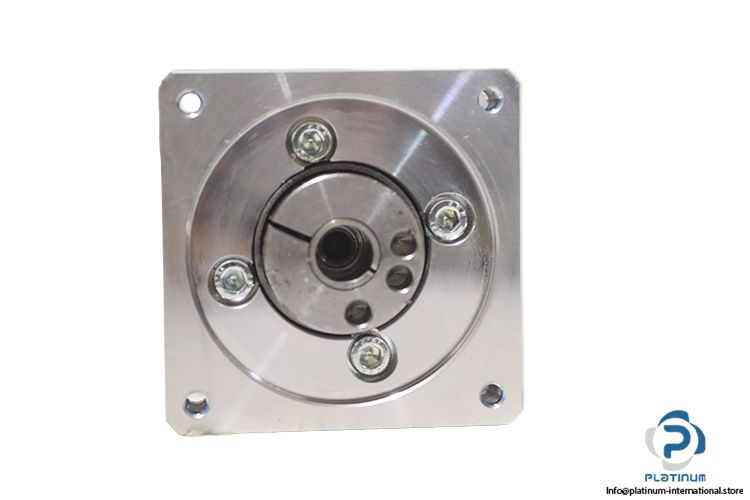

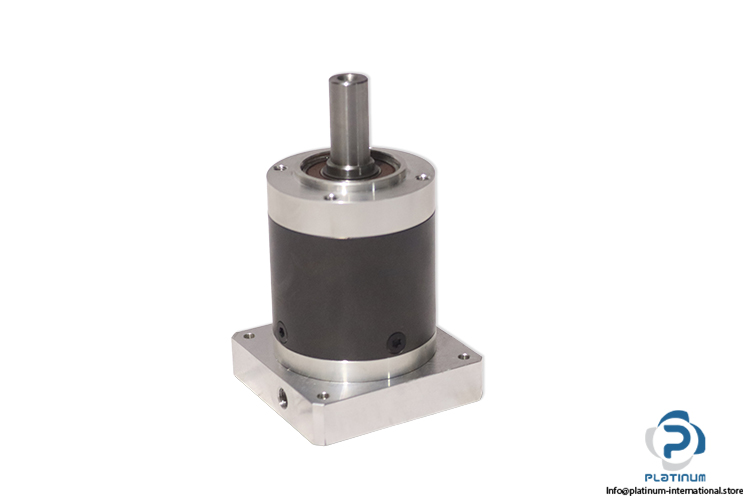

Neugart PLE060-025-SSSA3AD-R14 Planetary Gearbox
Réducteur planétaire de précision Neugart PLE060-025-SSSA3AD-R14 avec un rapport de transmission de 25:1, arbre de 14 mm, fixation à bride carrée et protection IP54 pour systèmes servo et automatisation de précision. Recommandé pour le contrôle de mouvement haute précision et les applications CNC.
Neugart PLE060-025-SSSA3AD-R14 Precision Planetary Gearbox
The Neugart PLE060-025-SSSA3AD-R14 precision planetary gearbox from the PLE series is engineered for high-precision motion control applications requiring compact design, high torque transmission, and low operating noise.
Manufacturer: Neugart
Type: Precision Planetary Gearbox
Model: PLE060-025-SSSA3AD-R14
Series: PLE

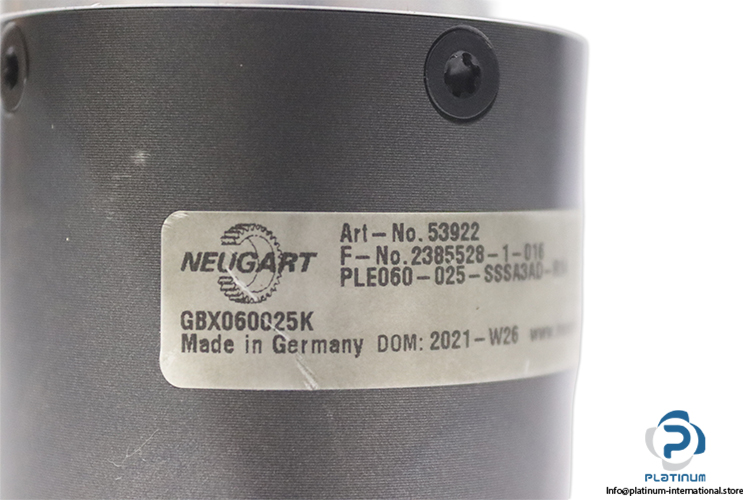

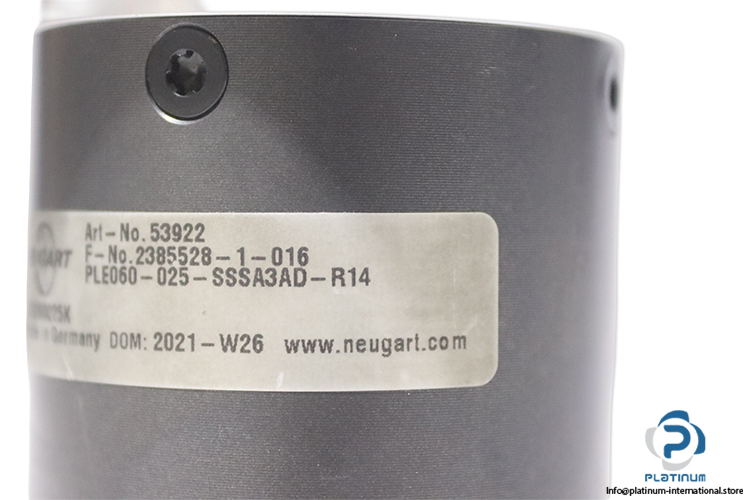

Article No.: 53922
F-No.: 2385528-1-016
Internal Code: GBX060025K
Ideal for servo motor applications, automation systems, CNC machinery, and precision positioning equipment.
Please contact us via Ask for assistance with any inquiries.
| Size | 60 |
| Ratio i | 25:1 |
| Shaft Diameter | 14 mm |
| Hollow Shaft | 10 mm |
| Flange Diameter | 70 mm |
| Output Shaft | Solid Shaft |
| Mounting Type | Square Flange Mount |
| Running Noise | 60 dB(A) |
| Maximum Radial Force | 700 N |
| Maximum Axial Force | 800 N |
| Maximum Tipping Moment | 25 Nm |
| Max. Mechanical Drive Speed | 13000 rpm |
| Operating Temperature | -25 to 90 °C |
| Protection Class | IP54 |
