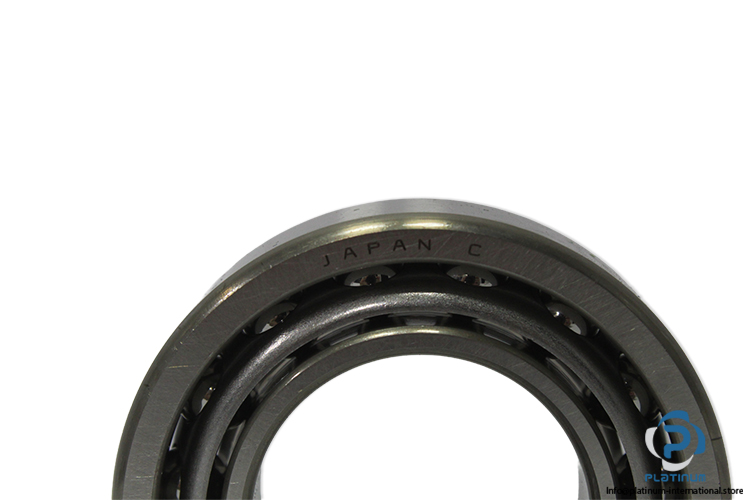

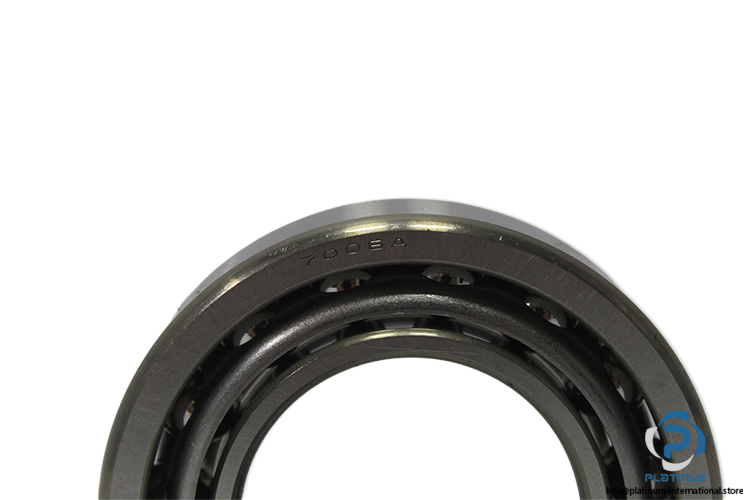

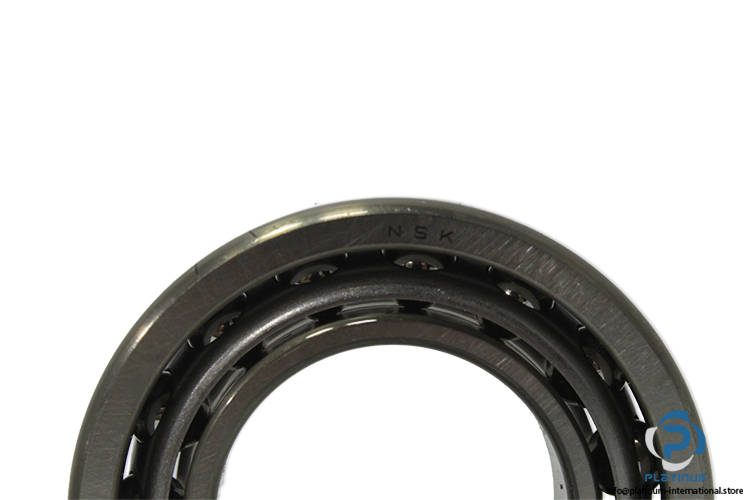

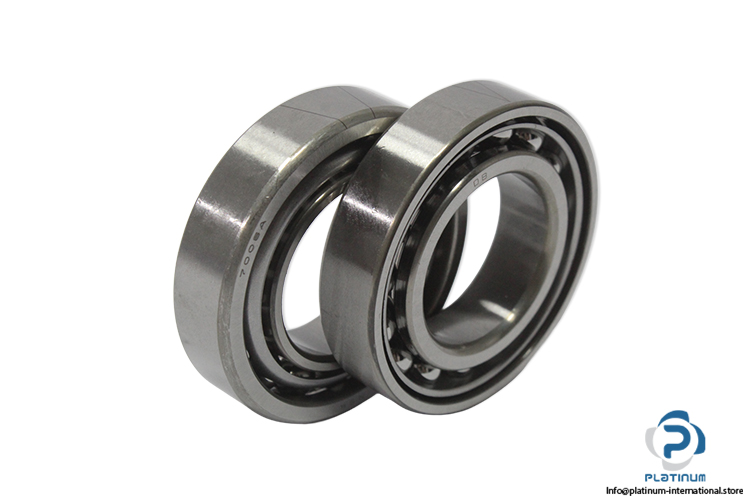

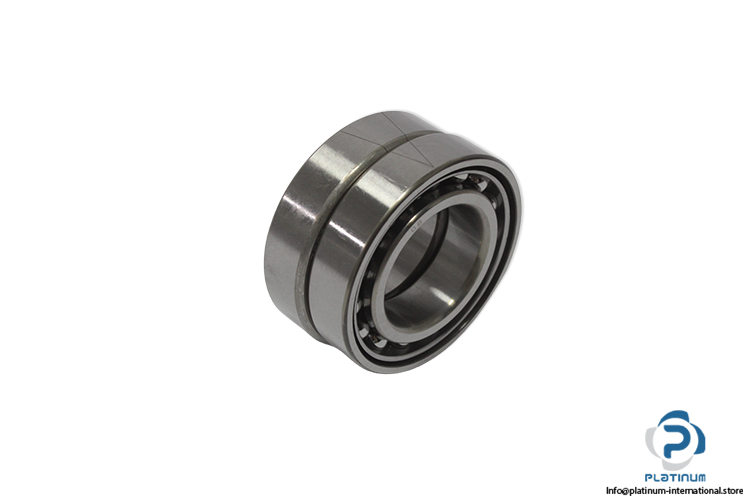

NSK 7006A Angular Contact Ball Bearing
Nouveau
En stock9 unitésPrêt à être expédié
Angular Contact Ball Bearing The NSK 7006A is a angular contact ball bearing designed for high-speed, accurate, and reliable operation in precision industrial applications.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
| Bore diameter d | 30 mm |
| Outer diameter D | 55 mm |
| Width B | 13 mm |
| Contact Angle | A: 30° |
| Effective Load Center a | 18.8 mm |
| Chamfer Dimension r(min.) | 1 mm |
| Chamfer Dimension r1(min.) | 0.6 mm |
| Limiting Speed Grease | 17700 min-1 |
| Limiting Speed Oil (Oil-air) | 23600 min-1 |
| Dynamic Load Capacity C | 17.5 kN |
| Static Load Capacity C0 | 9.45 kN |
| Permissible Axial Load | 6.20 kN |
| Item Per Set | 2 |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101156 |
| Weight | 0,25 |
