OGU 081 P3K-TSSL Fork Light Barrier
Utilisé
En stock1 unitéPrêt à être expédié

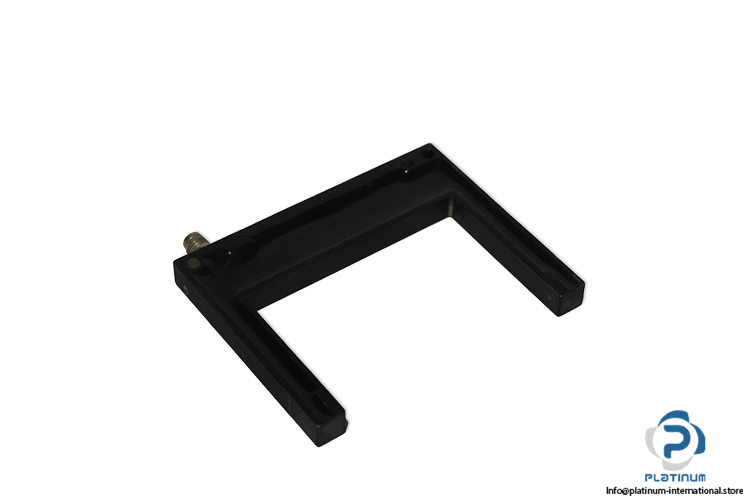

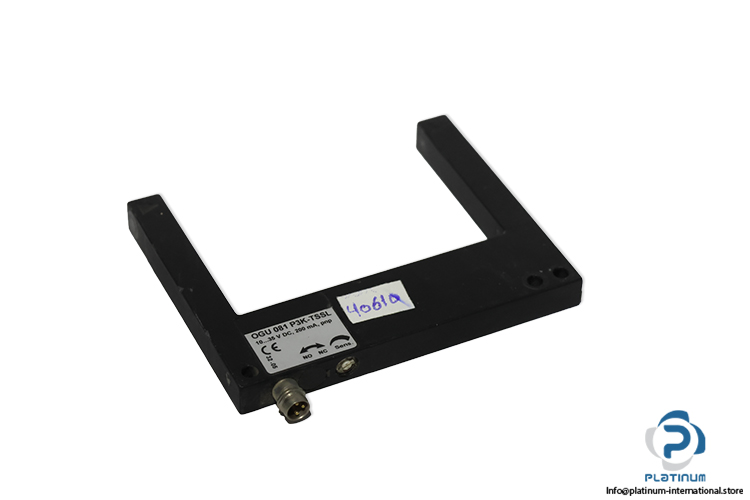

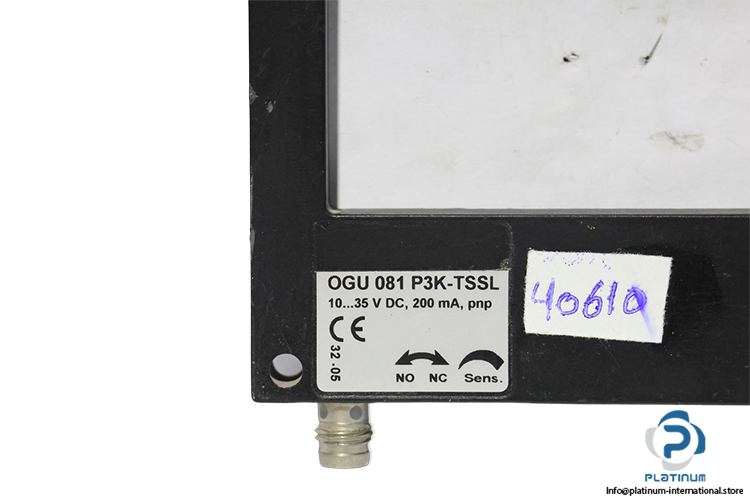

Fork Light Barrier Industrial optical fork sensor with 80 mm opening, PNP switching output, 0.5 mm resolution, and IP67 protection for precise object detection and automation applications.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie
| Fork Opening Width | 80 mm |
| Housing Dimensions | 100 x 80 x 10 mm |
| Operating Voltage | 10 to 35 V DC |
| Switching Output | PNP, 200 mA, NO/NC switchable |
| Emitted Light | Red clocked LED (660 nm) |
| Resolution | 0.5 mm |
| Operating Frequency | 4,000 Hz |
| Protection Class | IP 67 |

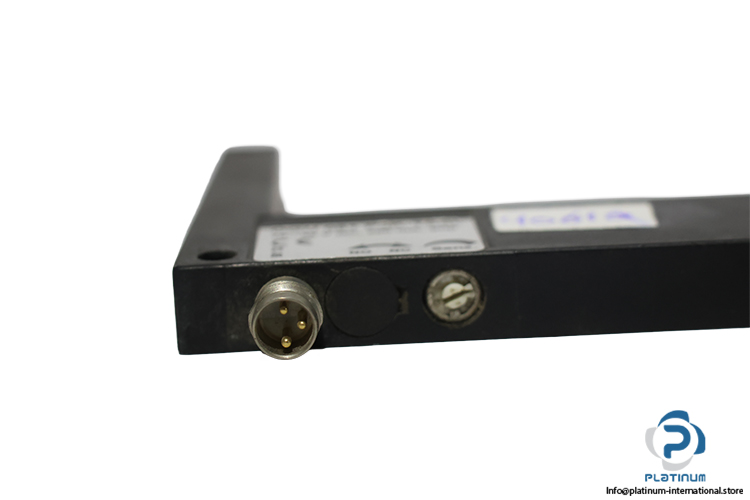

| Connection Type | M8 connector, 3-pin |
| Stock key | CON003 |
| Condition | Used |
| SKU | 1101528 |
| Weight | 0,11 |
