Omal SR030402S F03-F05 Pneumatic Actuator
Utilisé
En stock1 unitéPrêt à être expédié
259,99$
Pneumatic Actuator
The OMAL SR030402S F03-F05 is a spring return pneumatic actuator with 90-degree rotation, aluminum housing, and torque range from 15 Nm to 1920 Nm, built for industrial valve control applications.521190ActuatorAluminumAutomationDegreeDINF03-F05HousingIndustrialISOOmalPneumaticReturnspringSR030402SValve
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

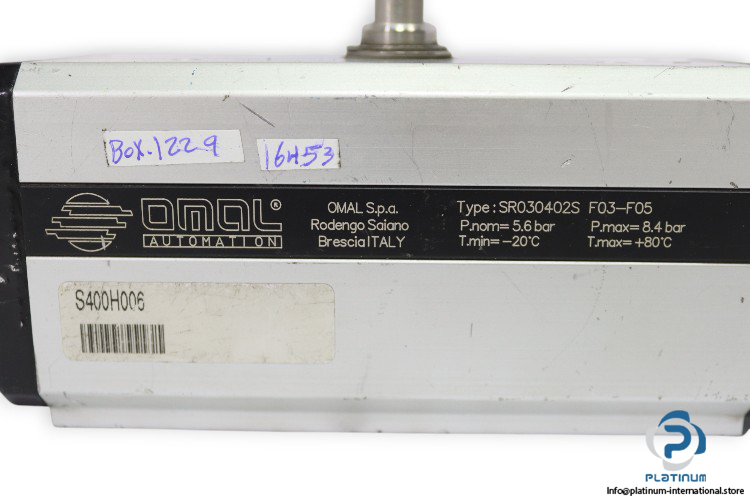

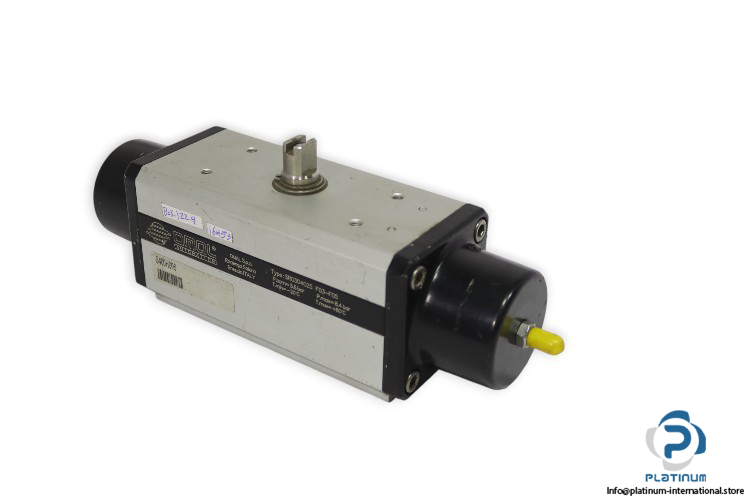

OMAL SR030402S F03-F05 Pneumatic Actuator
The OMAL SR030402S F03-F05 Pneumatic Actuator is a high-quality spring return actuator engineered for reliable valve automation. It delivers consistent torque and smooth operation, suitable for industrial pneumatic control systems.
Manufacturer: OMAL
Type: Pneumatic Actuator
Model: SR030402S F03-F05
Ref No.: S400H006
Series: SR
Size: SR 30
| Operating Media | Compressed filtered air, not necessarily lubricated |
| Actuation Type | Spring Return |
| Torque | From 15 Nm to 1920 Nm |
| Mounting Flange | According to DIN/ISO 5211 DIN 3337 F03-F05 |
| Pressure Rating | Max 8.4 bar |
| Nominal Pressure | 5.6 bar |
| Temperature Range | -20 to 80°C |
| Body Material | Aluminum housing |
| Thread Gas | G1/8 |
| Rotation Angle | 90° |
| Dimension (Length x Depth x Piston Dia) | 240 x 90.4 x 50 mm |
