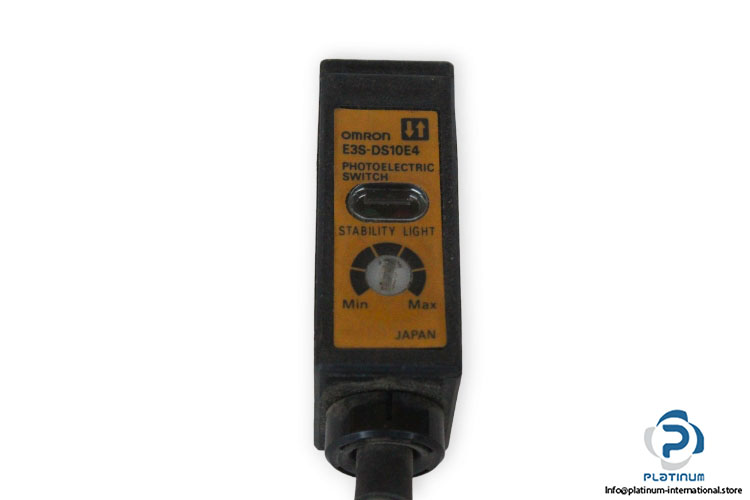

Omron E3S-DS10E4 Diffuse Photoelectric Switch

Manufacturer: OMRON
Type: Diffuse Photoelectric Switch
Model: E3S-DS10E4

Sensing Range: 100 mm
Sensing Method: Diffuse-Reflective
Rated Voltage: 12 … 24 V DC
Rated Switching Current Max.: 80 mA (sinking)
Rated Current Consumption Max.: 40 mA
Contact: NPN
Operation Mode: Light-ON / Dark-ON (Selectable)
Connection: Pre-Wired Cable
Material (Case): Polybutylene Terephthalate (PET)
Indicators: Light Indicator (Red), Stability Indicator (Green)
Response Time Max.: 1 ms
Dimensions: 50 x 15.4 x 21 mm
Protection Class: IP65
Temperature: -25 … 55 °C
