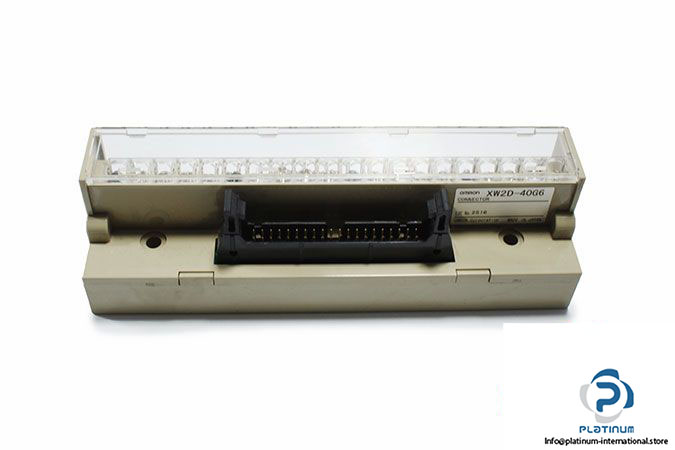

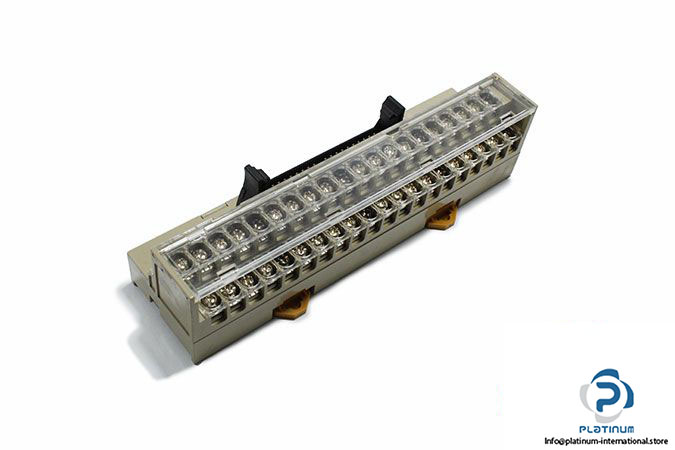

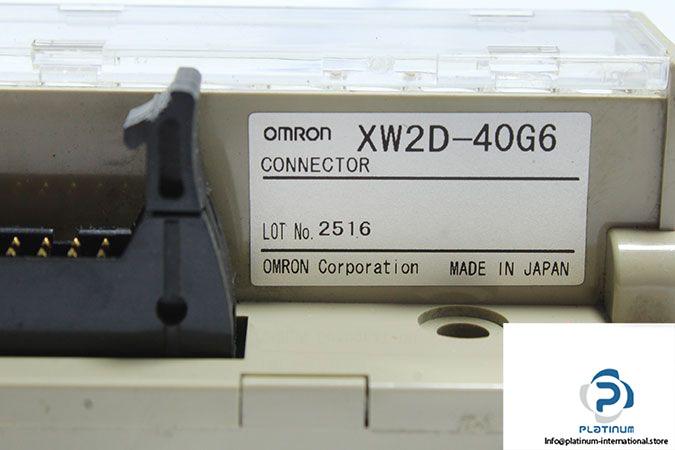

Omron XW2D-40G6 Slim Connector-Terminal Block

Manufacturer: OMRON

Type: Slim Connector-Terminal Block

Model: XW2D-40G6

Rated Current: 1 A

Rated Voltage: 125 VAC, 24 VDC

Insulation Resistance: 100 MΩ min. (at 500 VDC)

Dielectric strength: 500 VAC for 1 min (leakage current: 1 mA max.)

Ambient Temperature: 0 … 55°C

Mounted Connector Model: XG4A-4031

Cable Connector Model: XG4M-4030-T

Mounted Connector: XG4A MIL Connectors

No. of Poles: 40

Dimensions: 149 X 40 X 39 mm

Weight: 0.14 Kg
