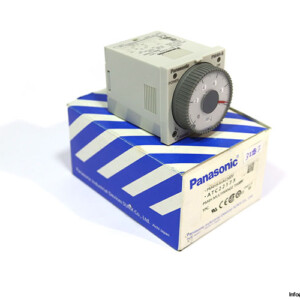

Panasonic ATC22173 Multi-Range Analog Timer

Name: PANASONIC ATC22173 MULTI-RANGE ANALOG TIMER
SKU: 1080605
Availability: LimitedAvailability

panasonic-PM4HS-H-AC240V-multifunction-timer-(Used)

panasonic-PM4HS-H-AC240V-multifunction-timer-(Used)-1

panasonic-PM4HS-H-AC240V-multifunction-timer-(Used)-2

panasonic-PM4HS-H-AC240V-multifunction-timer-(Used)-3

Utilisé

En stock1 unitéPrêt à être expédié

Multi-Range Analog Timer

The Panasonic PM4HS-H-AC240V provides 16 selectable timing ranges, DPDT contacts, and IP65 protection, making it ideal for precise industrial timing control.

Fabricant

PANASONIC

SKU

1080605

Catégorie

Timers

Condition

Utilisé

100“240V Analog Automation Dpdt Industrial IP65 Multi-Range Panasonic Panel PM4H PM4H-S PM4HS-H-AC240V Series Timer

Nouveau En stock

Ce produit est également disponible en neuf

Voir la nouvelle version →

Stock massif

Expédition mondiale

Support Expert

Qualité garantie

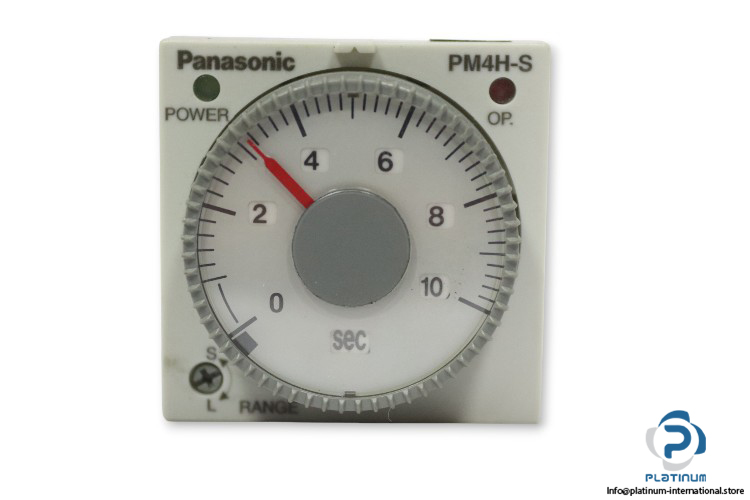

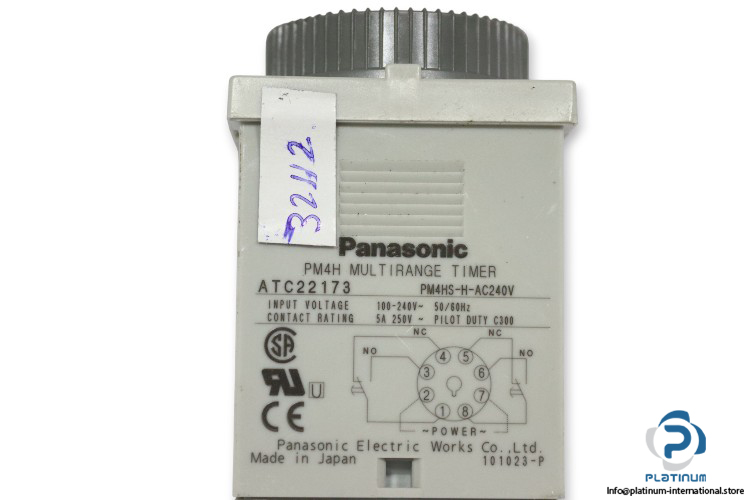

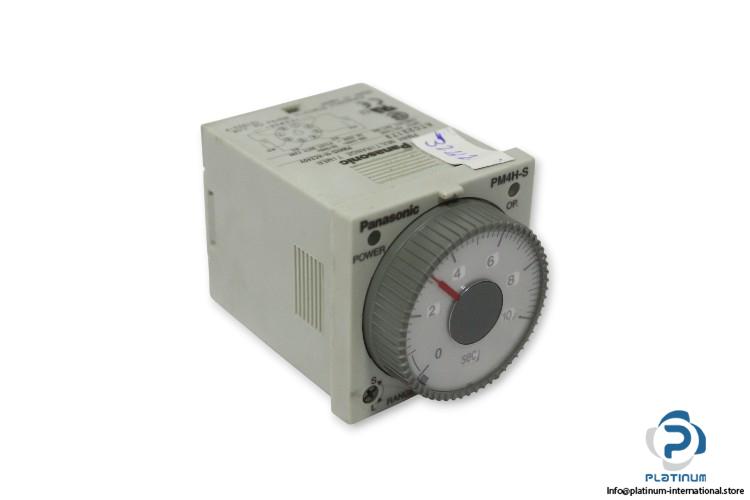

Panasonic PM4HS-H-AC240V Multi-Range Analog Timer

The Panasonic PM4HSHAC240V Multi-Range Analog Timer is a highly versatile timing device designed for precise control in industrial automation applications. Featuring 16 selectable time ranges and a durable IP65 front panel, it ensures reliable operation across a wide range of environments.

Manufacturer: Panasonic

Type: Multi-Range Analog Timer

Model: PM4HS-H-AC240V

Part No.: ATC22173

Series	PM4H-S
Supply Voltage	100 / 240 V AC / DC
Power Consumption	10 VA
Frequency	50 / 60 Hz
Timer Range	16 Selectable Ranges 1 s to 500 h
Contact	DPDT 2 Change Over (CO)
Contact Ratings	250 V AC, 5 A
Operation Mode	Power ON-Delay

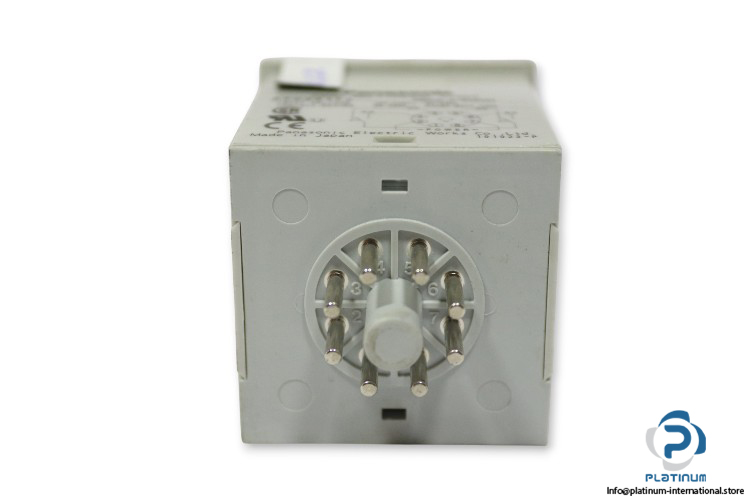

Terminal Type	8 Pin
Protection Class	IP65
Ambient Temperature	-10 / 50 °C
Dimensions	48 x 48 x 62.5 mm
