Parker P1A-S020DS-0125 Pneumatic Cylinder
Utilisé
En stock2 unitésPrêt à être expédié
Pneumatic Cylinder
PARKER P1A-S020DS-0125 Pneumatic Cylinder is a double-acting, high-performance cylinder with a 20 mm bore and 125 mm stroke. Designed for industrial applications with a maximum working pressure of 10 bar and a port size of G1/8, it operates reliably in temperatures from -20 to 80 °C.1012520ActingbarboreControlCylinderDoubledurableG1/8HighIndustrialmmMotionperformancePneumaticPortPressureSizeStrokeworking
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

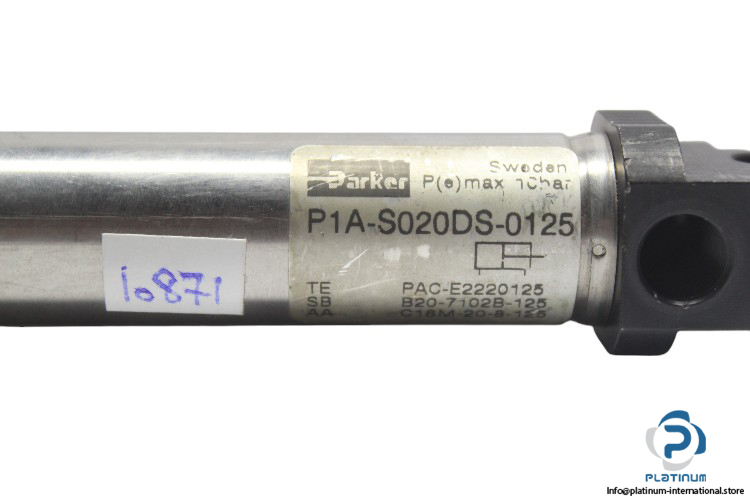

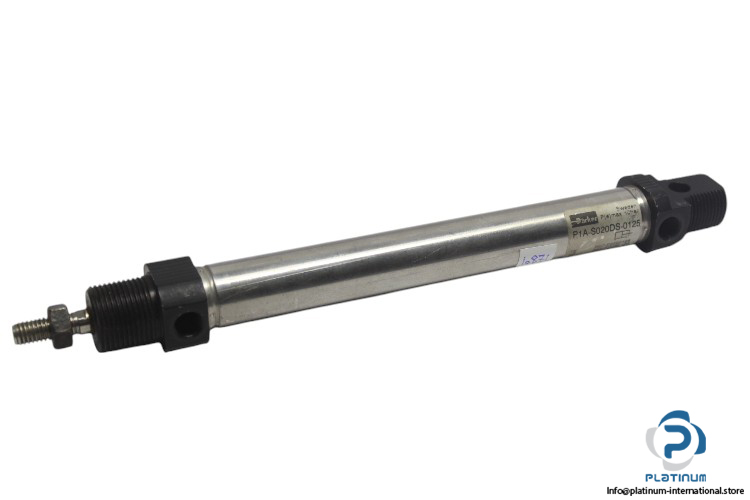

PARKER P1A-S020DS-0125 Pneumatic Cylinder
The PARKER P1A-S020DS-0125 Pneumatic Cylinder is a robust and reliable double-acting cylinder designed for high-performance pneumatic applications. With a cylinder bore of 20 mm and a stroke length of 125 mm, this cylinder provides precise and efficient motion control under a maximum working pressure of 10 bar. Built with durability in mind, it operates smoothly within a temperature range of -20 to 80 °C, making it ideal for various industrial environments.
- Manufacturer: PARKER
- Type: Pneumatic Cylinder
- Model: P1A-S020DS-0125
Technical Specifications
- Cylinder Bore: 20 mm
- Stroke: 125 mm
- Maximum Working Pressure: 10 bar
- Mode of Operation: Double acting
- Port Size: G1/8
- Working Temperature: -20 to 80 °C
