Parker P1C-S063MS-0160 ISO Cylinder
Nouveau
En stock2 unitésPrêt à être expédié
ISO Cylinder
PARKER P1C-S063MS-0160 ISO Cylinder is a high-precision pneumatic actuator designed for industrial applications. With a 63 mm bore diameter, 160 mm stroke, and double-acting operation, it ensures efficient motion control. Featuring a male piston rod end and G 3/8 pneumatic connection, it is built for reliability and high-performance automation.160mm3/863mmActuatorAutomationboreconnectionControlCylinderdouble-actingEndGhigh-performanceHigh-SpeedIndustrialISOmaleMotionP1C-S063MS-0160ParkerPistonPneumaticRODShapeSquareStroke
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

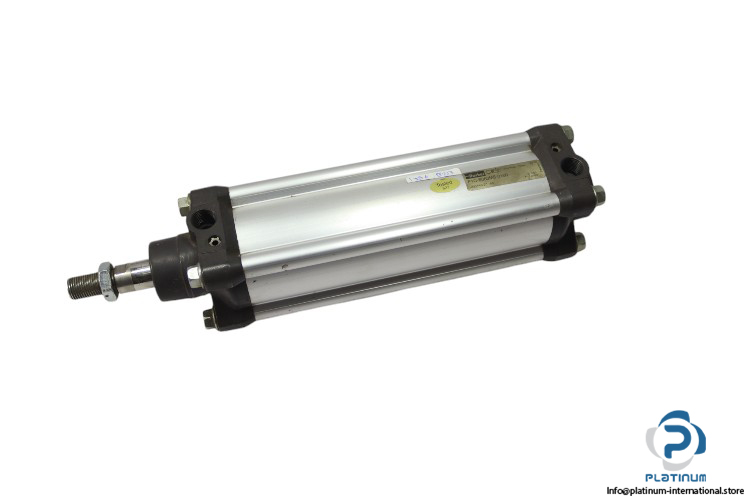

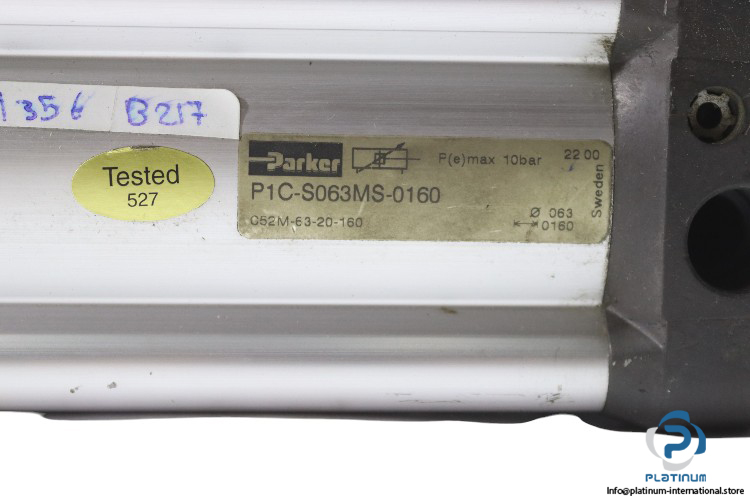

PARKER P1C-S063MS-0160 ISO Cylinder
The PARKER P1CS063MS0160 ISO Cylinder is a high-precision pneumatic actuator engineered for demanding industrial applications. Designed for durability and efficient performance, this double-acting cylinder ensures reliable motion control with optimal force transmission.
Manufacturer: PARKER
Type: ISO Cylinder
Model: P1C-S063MS-0160
| Media | Compressed Air |
| Bore Diameter | 63 mm |
| Stroke | 160 mm |
| Bore x Stroke | 63 x 160 mm |
| Rod Diameter | 20 mm |
| Frame Dimensions | 78 x 315 mm |
| Pneumatic Connection | G 3/8 |
| Maximum Pressure | 10 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
