Parker PXA-T100MCB-0350 Pneumatic Cylinder
Nouveau
En stock1 unitéPrêt à être expédié
Pneumatic Cylinder
The PARKER PXA-T100MCB-0350 is a durable double-acting pneumatic cylinder with 100 mm bore, 350 mm stroke, and G 1/2 connection, ideal for high-performance industrial automation.100x350ActingActuatorAutomationCylinderDoubleDutyg1/2HeavyIndustrialLinearMotionParkerPneumaticPXPXA-T100MCB-0350Series
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

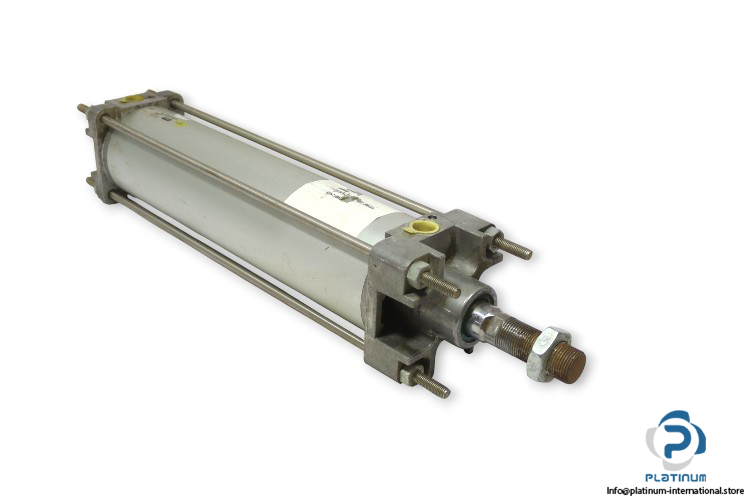

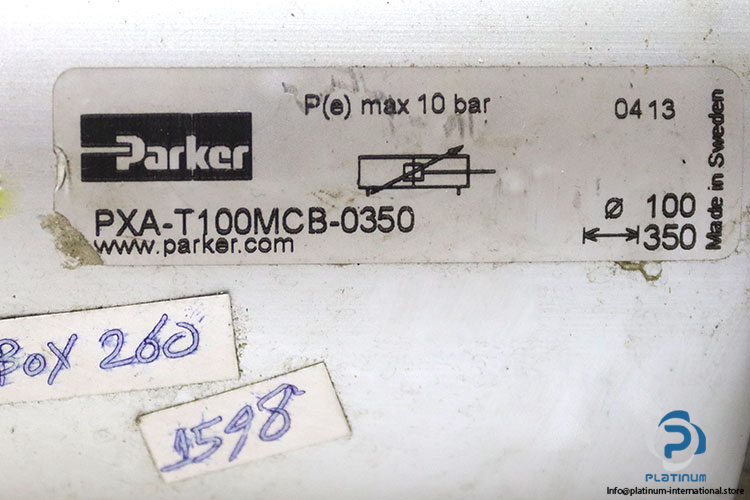

PARKER PXA-T100MCB-0350 Pneumatic Cylinder
The PARKER PXA-T100MCB-0350 Pneumatic Cylinder is a robust double-acting actuator designed for high-performance industrial automation. It provides precise linear motion and long service life for demanding pneumatic systems.
Manufacturer: PARKER
Type: Pneumatic Cylinder
Model: PXA-T100MCB-0350
Ref No.: 0413
Series: PX
| Media | Compressed Air |
| Bore Diameter | 100 mm |
| Stroke | 350 mm |
| Bore x Stroke | 100 x 350 mm |
| Rod Diameter | 30 mm |
| Frame Dimensions | 115 x 525 mm |
| Pneumatic Connection | G 1/2 |
| Pressure Max. | 10 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
