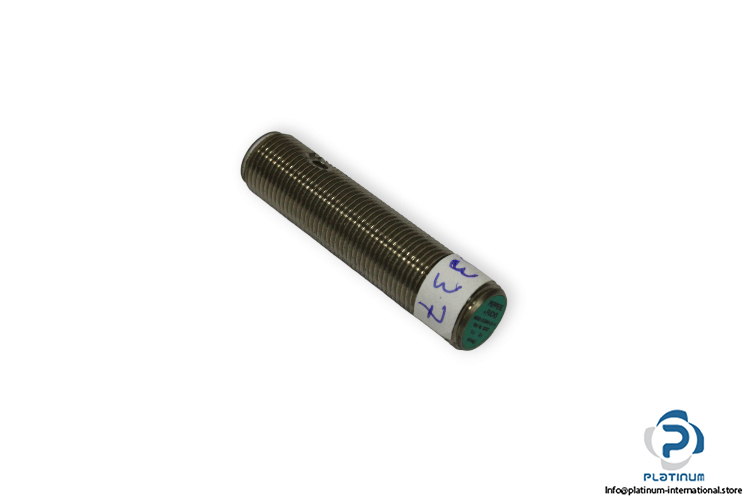

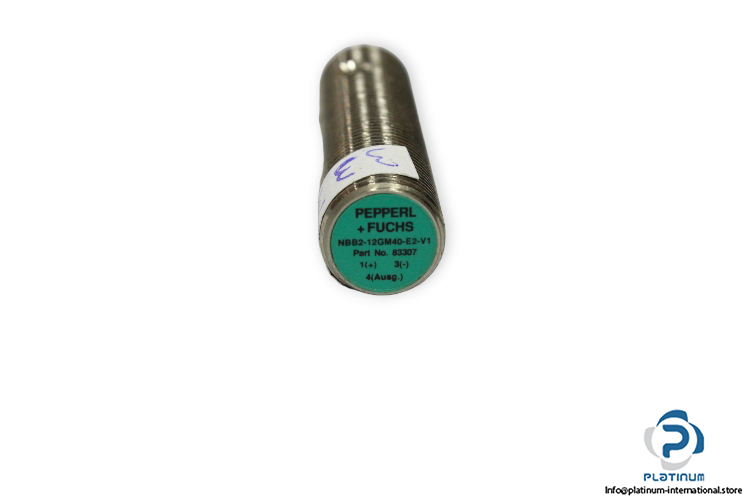

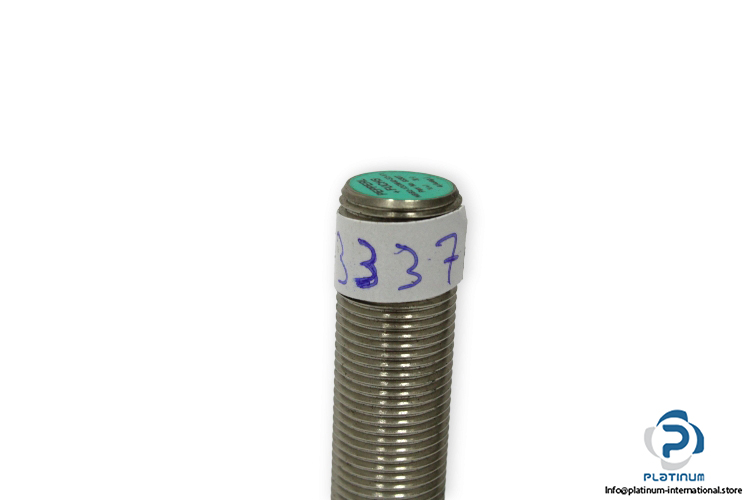

Pepperl+Fuchs NBB2-12GM40-E2-V1 Inductive Sensor

Manufacturer: Pepperl+Fuchs
Type: Inductive Sensor
Model: NBB2-12GM40-E2-V1
Part No: 83307

Switching Function: Normally Open (NO)
Output Type: PNP

Rated Operating Distance: 2 Mm
Installation: Flush
Operating Voltage: 5 … 36 V DC

Switching Frequency: 0 … 3500 Hz
Operating Current: 0 … 200 Ma
Rated Insulation Voltage: 36 V
Ambient Temperature: -40 … 85 °C
Connection Type: Connector Plug

Housing Material: Brass, White Bronze Coated

Sensing Face: PBT, Green

Degree Of Protection: IP68
Connector: M12 X 1, 3 Pins
Tightening Torque: 0 … 10 Nm
Length: 54.5 mm
