Pepperl+Fuchs NBB2-8GM40-E2-V1-3G-3D Inductive Sensor
Nouveau
En stock1 unitéPrêt à être expédié
Inductive Sensor
A compact and explosion-proof inductive sensor offering precise detection, PNP output, and IP67 protection. Ideal for industrial automation and hazardous environments requiring reliable proximity sensing.AutomationExplosionInductiveIndustrialIP67NBB2-8GM40-E2-V1-3G-3DPepperl+FuchsPNPProofProximitySensor
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

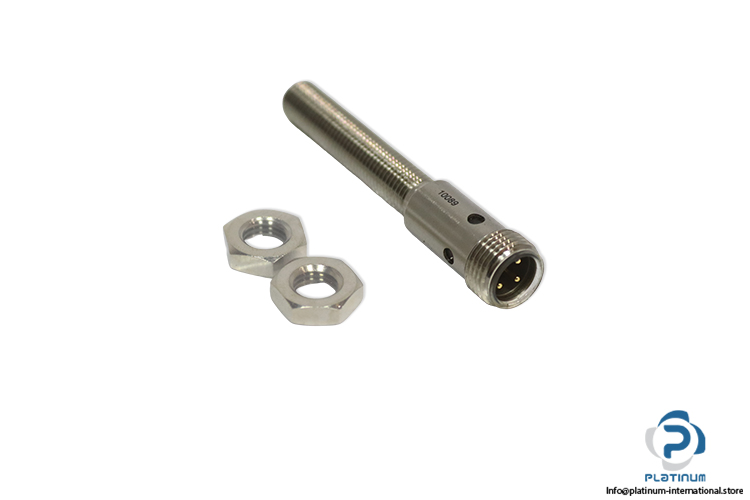

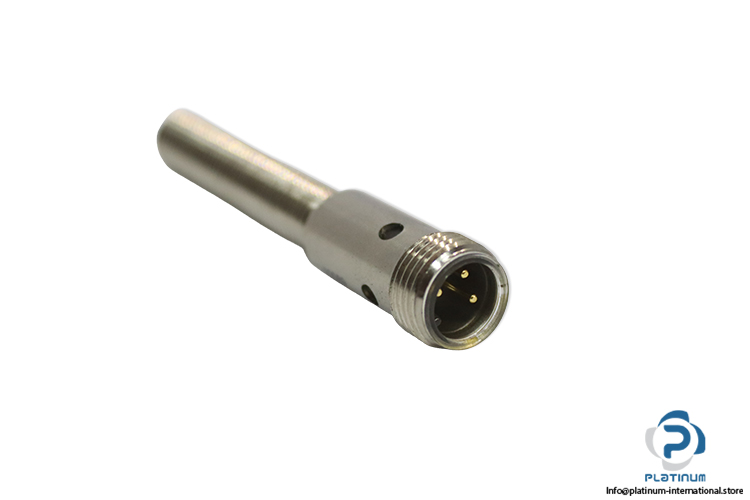

PEPPERL+FUCHS NBB2-8GM40-E2-V1-3G-3D Inductive Sensor
A high-precision inductive proximity sensor designed for reliable object detection in industrial automation environments. This sensor provides stable switching performance, high resistance to harsh conditions, and explosion-proof protection, making it suitable for safety-critical and demanding applications. Manufacturer: PEPPERL+FUCHS
Type: Inductive Sensor
Model: NBB2-8GM40-E2-V1-3G-3D

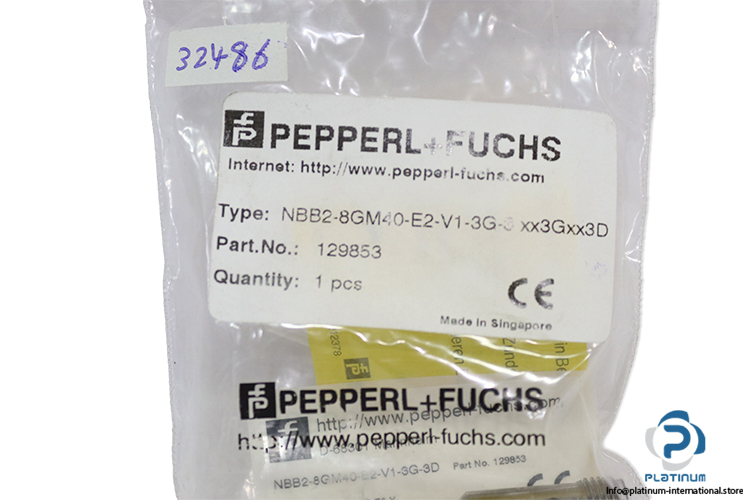

Part No.: 129853
| Switching Function | Normally Open (NO) |
| Length | 65 mm |
| Output Type | PNP |
| Rated Operating Distance (sn) | 2 mm |
| Installation | Flush |
| Output Polarity | DC |
| Assured Operating Distance (sa) | 0 ... 1.62 mm |
| Reduction Factor rAl | 0.45 |
| Reduction Factor rCu | 0.35 |
| Reduction Factor r304 | 0.75 |
| Output Type | 3-Wire |
| Operating Voltage (UB) | 10 ... 30 V DC |
| Switching Frequency (f) | 0 ... 1500 Hz |
| Hysteresis (H) | typ. 5 % |
| Reverse Polarity Protection | Reverse polarity protected |
| Short-Circuit Protection | Pulsing |
| Ambient Temperature | ˆ’25 ... +70 °C |

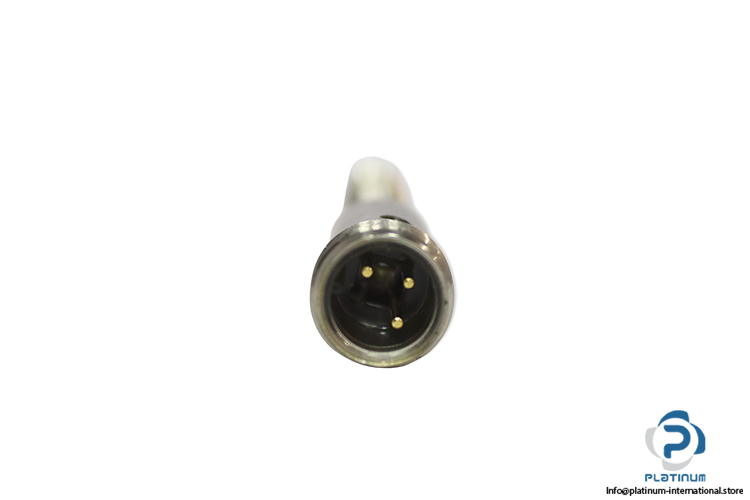

| Connection Type | Connector plug M12 × 1, 4-pin |
| Housing Material | Brass, nickel-plated |
| Sensing Face | LCP |
| Degree of Protection | IP67 |
| Explosion Protection | Explosion Proof |
