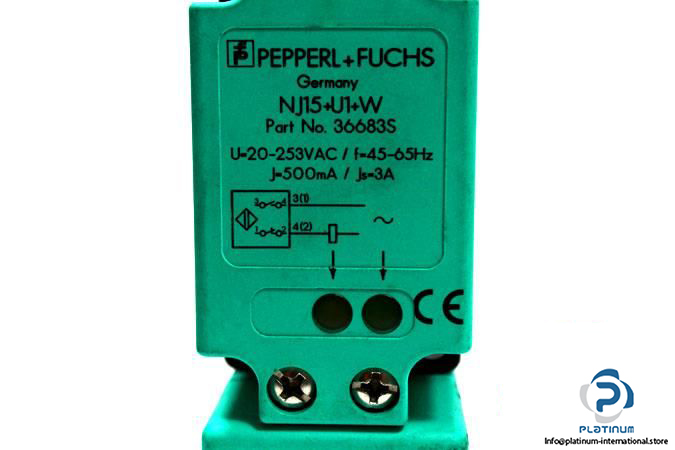

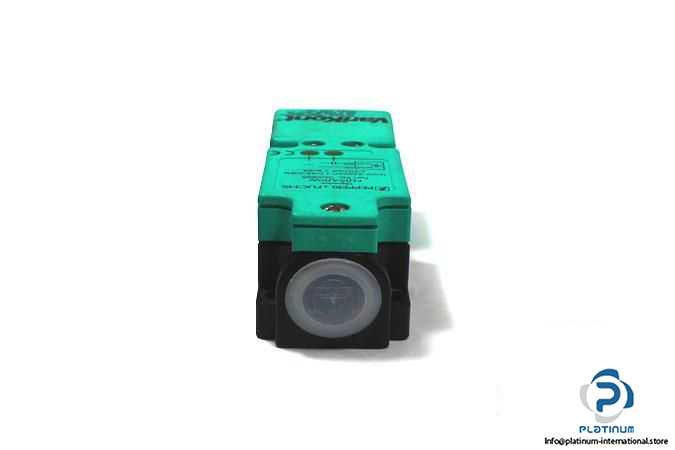

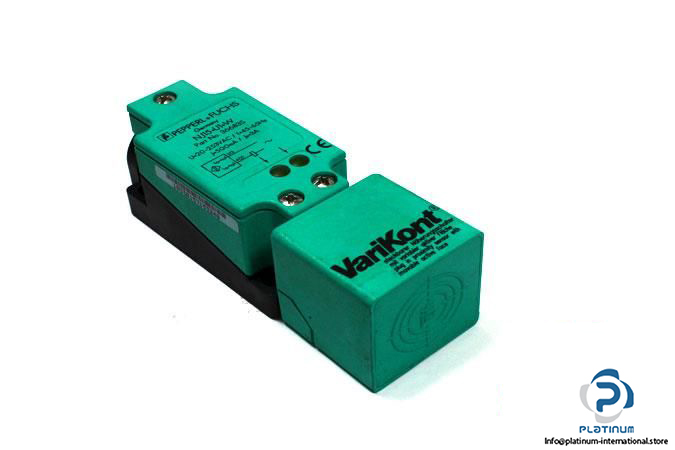

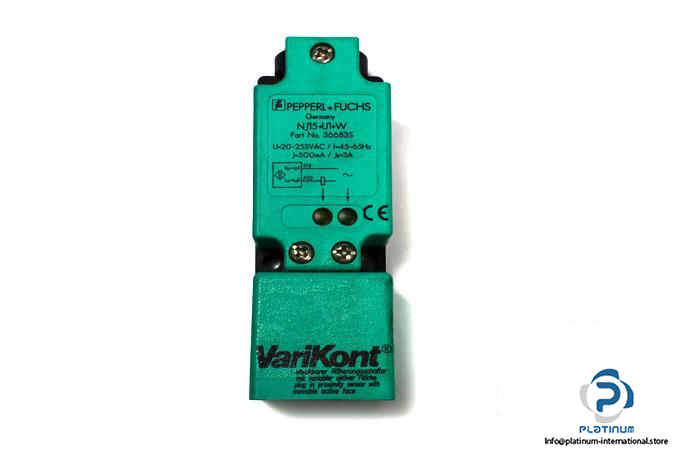

Pepperl+Fuchs NJ15+U1+W Inductive Sensor

Manufacturer: PEPPERL FUCHS
Series: VariKont
Type: Inductive Sensor
Model No.: NJ15U1W
Part No.: 36683S

Rated operating distance: 15 mm
Assured operating distance: 0 … 12.5 mm
Operating Voltage: 20 … 253 V AC,45 … 65 Hz
Operating Current: 8 … 500 mA
Switching frequency: 0 … 20 Hz
Switching output: Normally open / normally closed
Connector type: Terminal Compartment
Enclosure rating: IP68
Ambient Operating temperature: -25 … 70°C
Dimensions: 40 x 40 x 118 mm
Housing: Rectangular
Housing material: PBT
Sensing face material: PBT
