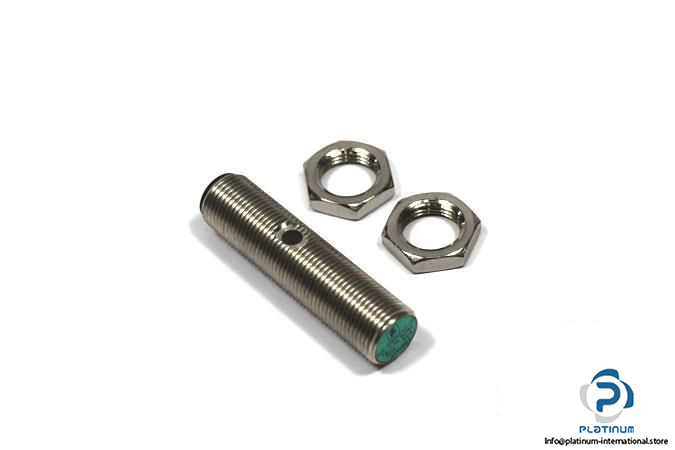

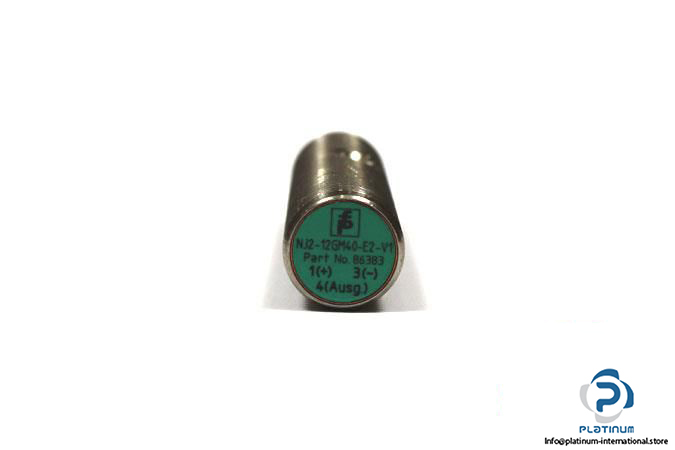

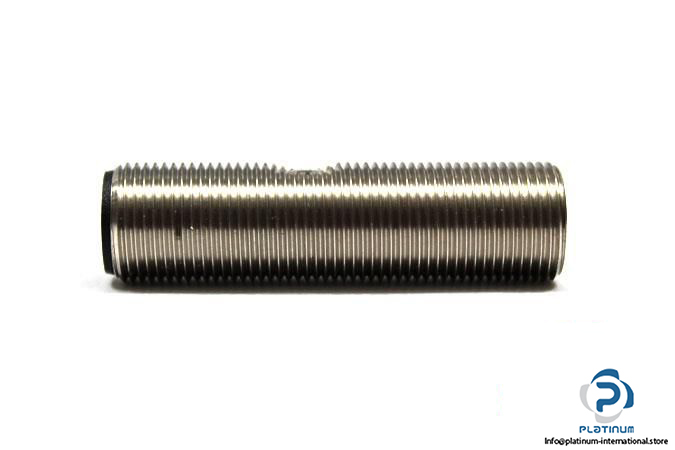

Pepperl+Fuchs NJ2-12GM40-E2-V1 Inductive Sensor

Manufacture: PEPPERL FUCHS

Type: INDUCTIVE SENSOR

Model No.: NJ212GM40E2V1

Part No.: 86383

Rated operating distance: 2 mm

Assured operating distance: 0 … 1.62 mm

Actual operating distance: 1.8 … 2.2 mm

Operating Voltage: 10 … 60 V DC

Operating Current: 200 mA

Switching frequency: 0 … 3000 Hz

Electrical design: PNP

Switching output: Normally open

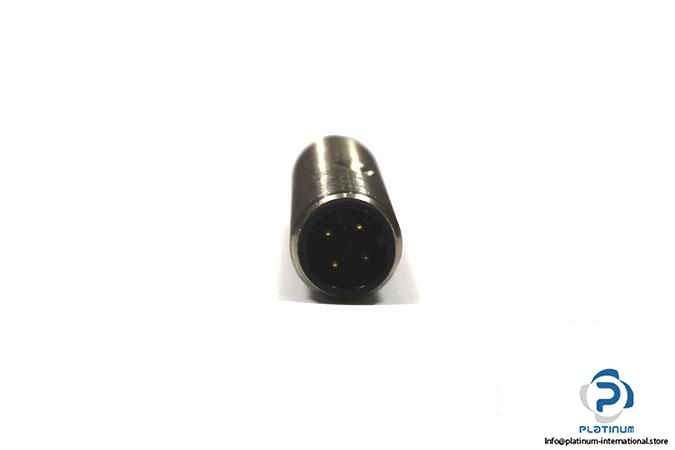

Connector type: M12 Connector, 4-pin

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -25 … 70°C

Diameter, housing length: 12, 40 mm

Housing material: Stainless steel

Sensing face material: PBT

Mounting: Flush-mountable

Condition: New
