Pepperl+Fuchs NJ30+U1+E2 Inductive Sensor
Fabricant : PEPPERL+FUCHS Type : Capteur inductif Série : VariKont Modèle : NJ30+U1+E2 Remplacé par : NBN30-U1-E2
Manufacturer: PEPPERL+FUCHS
Type: Inductive Sensor
Series: VariKont
Model: NJ30+U1+E2
Replaced by: NBN30-U1-E2
Rated operating distance: 30 mm
Assured operating distance: 0 … 24.3 mm
Operating Voltage: 10 … 60 V DC
Operating Current: 200 mA
Switching frequency: 0 … 100 Hz
Electrical design: PNP
Switching output: Normally open
Connector type: Terminal compartment
Enclosure rating: IP68
Dimensions: 40 x 40 x 118 mm
Housing: Rectangular
housing material: PBT
Sensing face material: PBT
Mounting: Non-flush mountable
Operating Temperature: -25 … 70°C
You May Also Need
Plus de PEPPERL+FUCHS
PEPPERL+FUCHS
Pepperl+Fuchs Z779.H.F Zener Barrier
SKU: 1084599
Disponible sur demande
PEPPERL+FUCHS

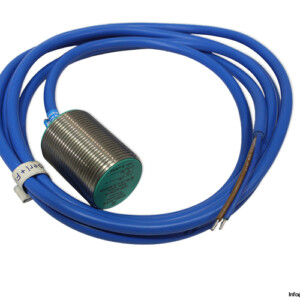

Pepperl+Fuchs NJ10-30GM-N 14580S Inductive Sensor
