Pepperl+Fuchs NJ30+U1+W Inductive Sensor
Utilisé
En stock1 unitéPrêt à être expédié
Inductive Sensor
The Pepperl+Fuchs NJ30+U1+W VariKont sensor offers a 30 mm sensing range, wide voltage capability, and IP68 explosion-proof protection”ideal for heavy-duty metal detection in industrial environments.ACBreakDetectionExplosionHeavy-DutyInductiveIndustrialIP68MakeMetalNJ30+U1+WPepperl+FuchsPFProofProximitySensorVariKont
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

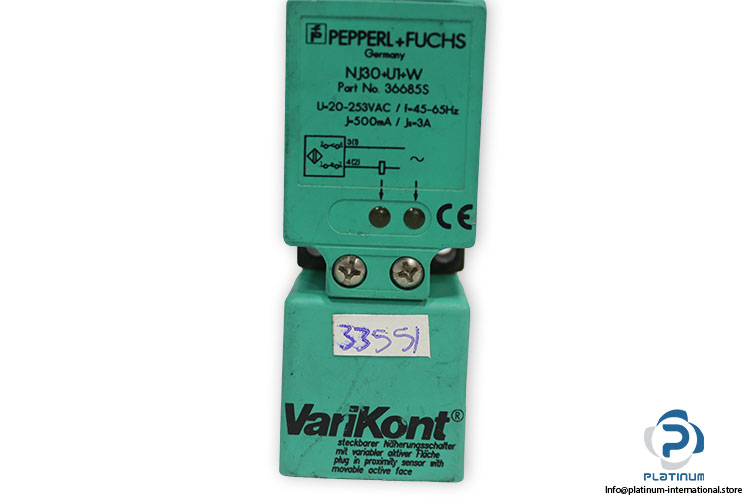

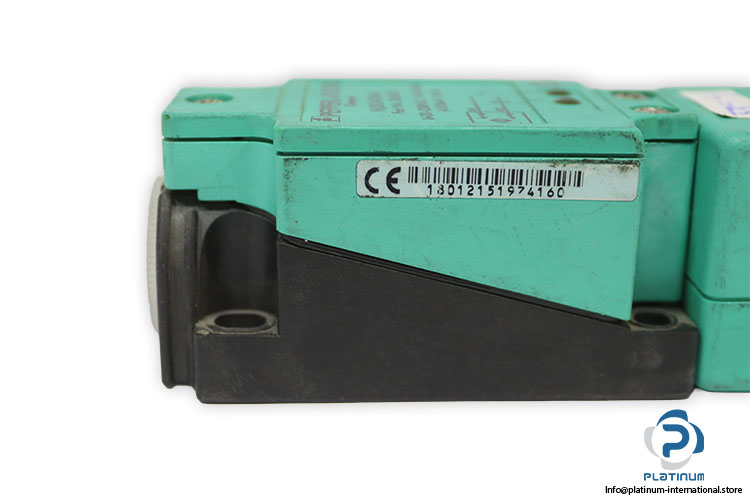

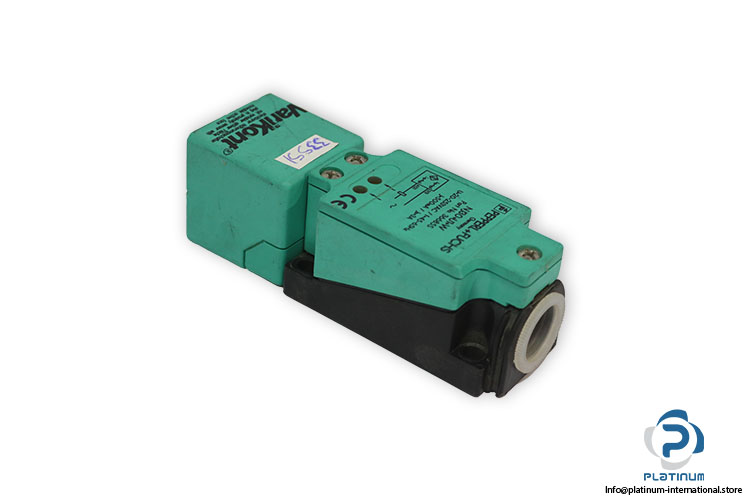

Pepperl+Fuchs NJ30+U1+W Inductive Sensor
The Pepperl+Fuchs NJ30+U1+W is a rugged and high-performance inductive sensor engineered for reliable metal detection in demanding industrial environments. Part of the VariKont series, it offers a large 30 mm sensing range, wide operating voltage, and an exceptionally durable PBT housing. With IP68 protection and explosion-proof capability, this sensor is ideal for severe-duty applications requiring maximum reliability and safety.
Manufacturer: PEPPERL+FUCHS
Type: Inductive Sensor
Model: NJ30+U1+W
Part No.: 36685S
Series: VariKont
| Switching Element Function | AC Make/Break Function |
| Rated Operating Distance (sn) | 30 mm |
| Installation | Not Embeddable |
| Assured Operating Distance (sa) | 0 ... 24.3 mm |
| Operating Voltage (UB) | 20 ... 253 V |
| Switching Frequency (f) | 0 ... 20 Hz |
| Momentary Current | 0 ... 3000 mA |
| Ambient Temperature | -25 ... +70 °C |
| Connection Type | Terminal Compartment |
| Core Cross-Section | Up to 2.5 mm² |
| Housing Material | PBT |
| Sensing Face | PBT |
| Degree of Protection | IP68 |
| Dimensions | 118 × 40 × 40 mm |
| Explosion Proof | Yes |
