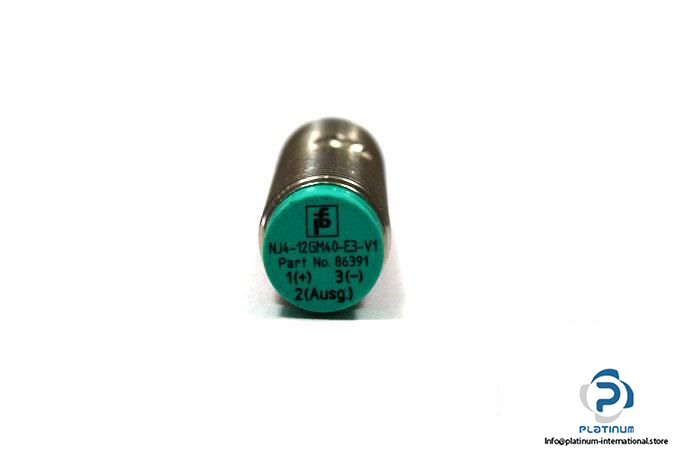

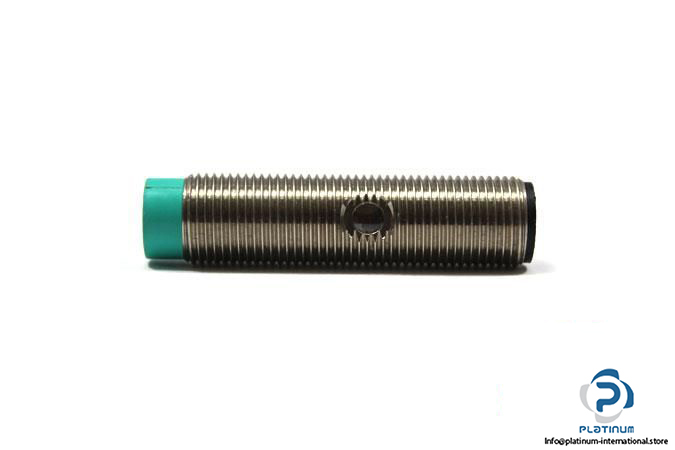

Pepperl+Fuchs NJ4-12GM40-E3-V1 Inductive Sensor

Manufacturer: PEPPERL FUCHS

Type: INDUCTIVE SENSOR

Model No.: NJ412GM40E3V1

Part No.: 86391

Rated operating distance: 4 mm

Assured operating distance: 0 … 3.24 mm

Actual operating distance: 3.6 … 4.4 mm

Operating Voltage: 10 … 60 V DC

Operating Current: 200 mA

Switching frequency: 0 … 2000 Hz

Electrical design: PNP

Switching output: Normally closed

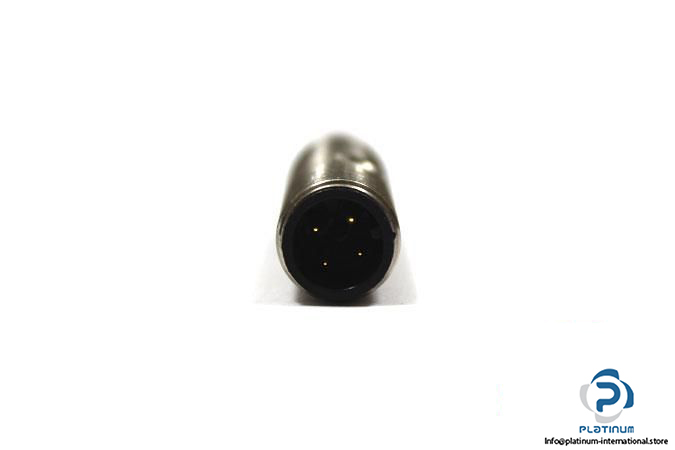

Connector type: M12 Connector, 4-pin

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -25 … 70°C

Diameter, housing length: 4, 50 mm

Housing material: Stainless steel

Sensing face material: PBT

Mounting: Non-flush mountable

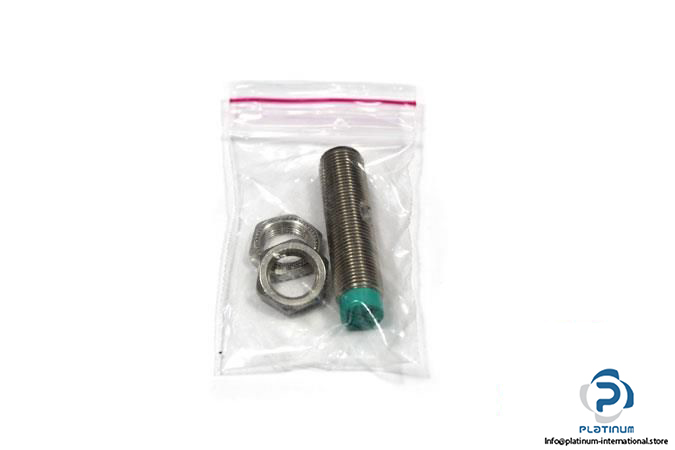

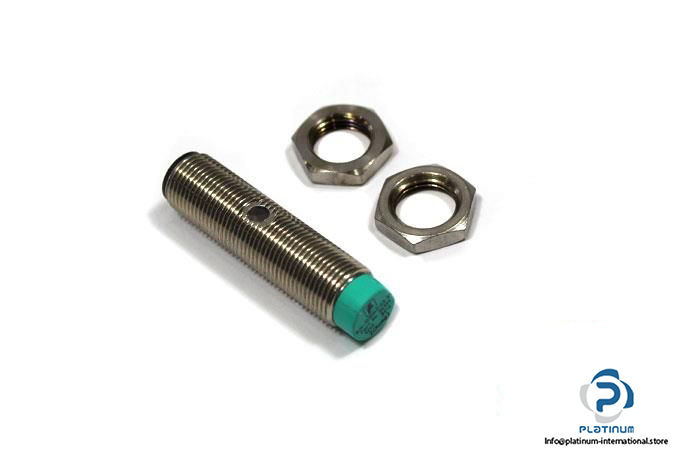

Supplied items: 2 lock nuts

Condition: New
