Pepperl+Fuchs NJ40+U1+E Inductive Sensor
Nouveau
Disponible sur demande
139,99$
Inductive Sensor
The PEPPERL+FUCHS NJ40+U1+E is a non-flush inductive sensor with 40 mm sensing range, NPN output, and IP68 housing for reliable metal detection in industrial systems.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

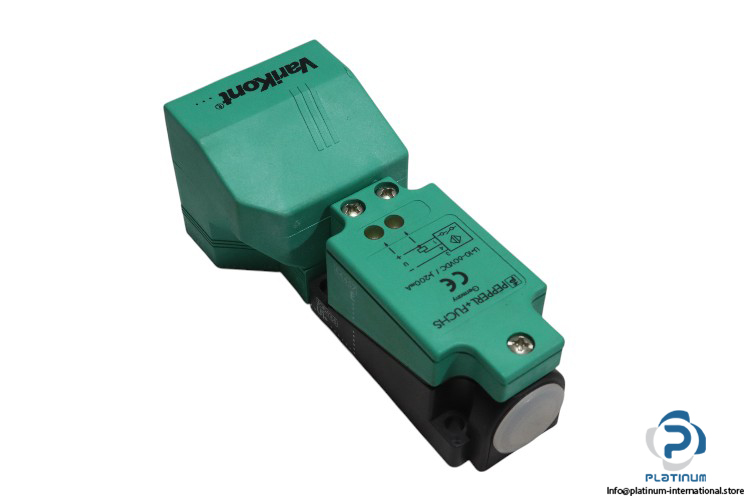

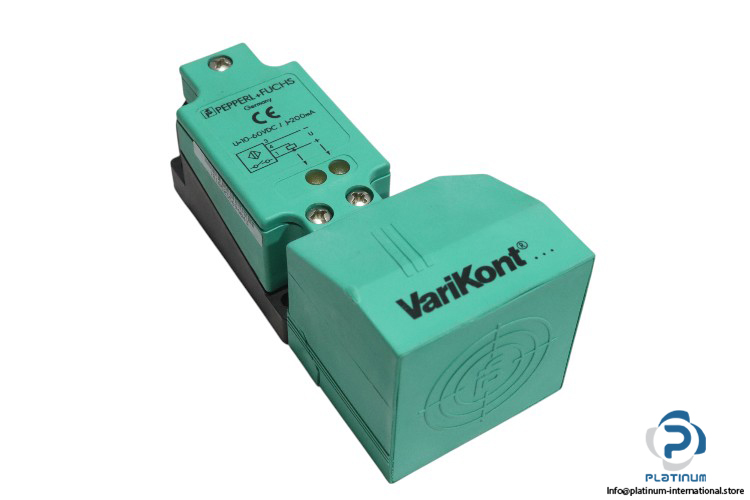

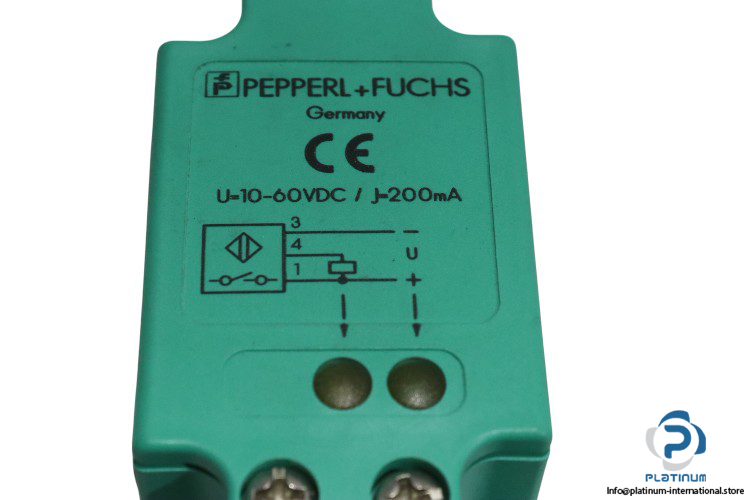

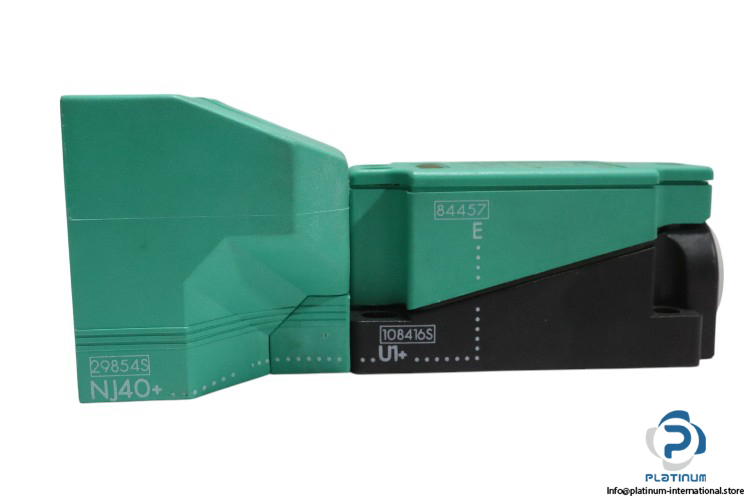

PEPPERL+FUCHS NJ40+U1+E Inductive Sensor
The PEPPERL+FUCHS NJ40+U1+E (Part No. 084526, MNR: 070305 M20) is a robust inductive sensor engineered for precise, non-contact detection of metal objects. With a large sensing range, wide voltage tolerance, and IP68 protection, it is ideal for demanding industrial automation environments.
Manufacturer: PEPPERL+FUCHS
Type: Inductive Sensor
Model: NJ40+U1+E
Part No.: 084526
MNR: 070305 M20
| Switching Function | Normally Open (NO) |
| Output Type | NPN |
| Rated Operating Distance (sn) | 40 mm |
| Installation | Non-flush |
| Output Type | 3-wire |
| Operating Voltage (UB) | 10 ... 60 V |
| Ambient Temperature | -25 ... 70 °C |
| Connection Type | Screw Terminals |
| Housing Material | PBT |
| Degree of Protection | IP68 |
| Dimensions (H x W x D) | 55 x 55 x 128 mm |
