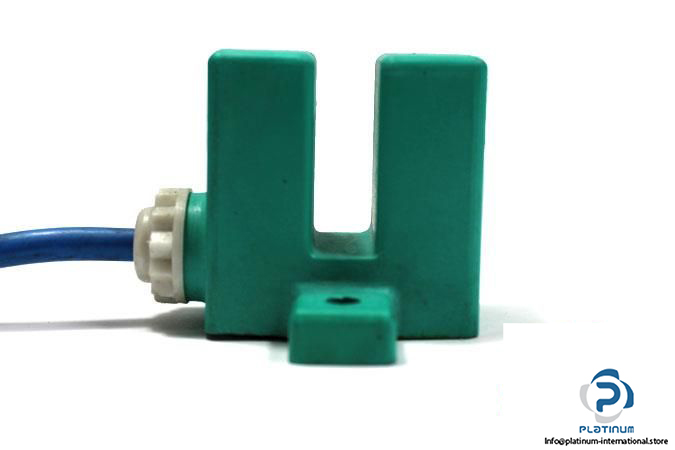

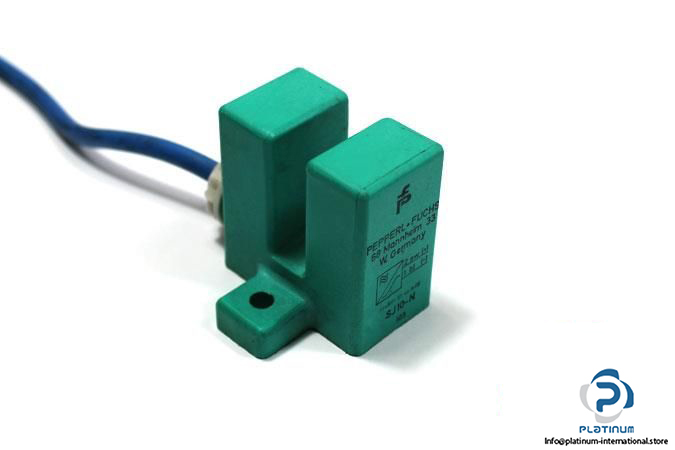

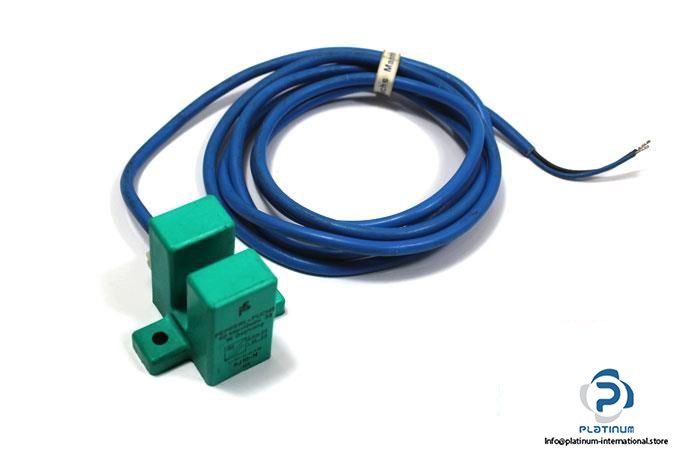

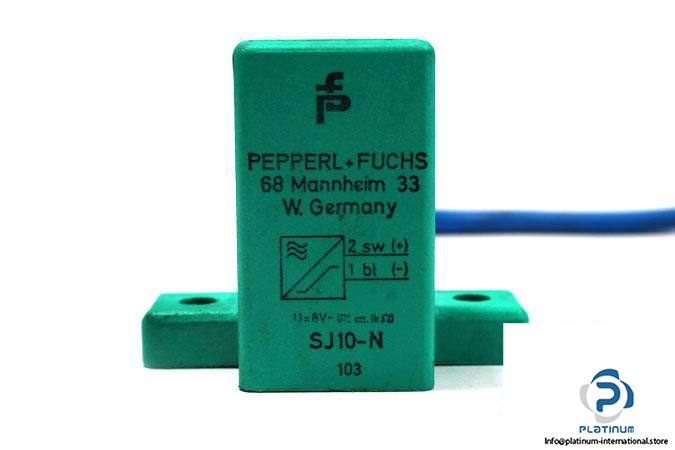

Pepperl+Fuchs SJ10-N Inductive Slot Sensor

Manufacturer: PEPPERL FUCHS
Type: Inductive Slot Sensor
Model: SJ10-N

Slot width: 10 mm
Depth of immersion: 13.5 … 16.5 mm, typ. 15 mm
Hysteresis: 0.1 … 0.5 mm
Operating Voltage: 8 V DC
Current consumption (Measuring plate not detected): ≥ 3 mA
Current consumption (Measuring plate detected): ≤ 1 mA
Switching frequency: 0 … 1000 Hz
Switching output: Normally closed
Output type: NAMUR
Connector type: PVC Cable, 2 m
Protection class: II
Enclosure rating: IP67
Ambient Operating temperature: -25 … 100°C
Dimensions: 44 x 25 x 45 mm
Housing Material: PBT
