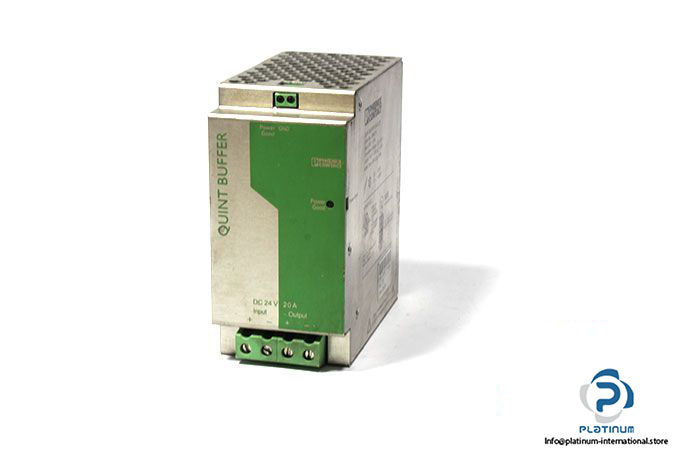

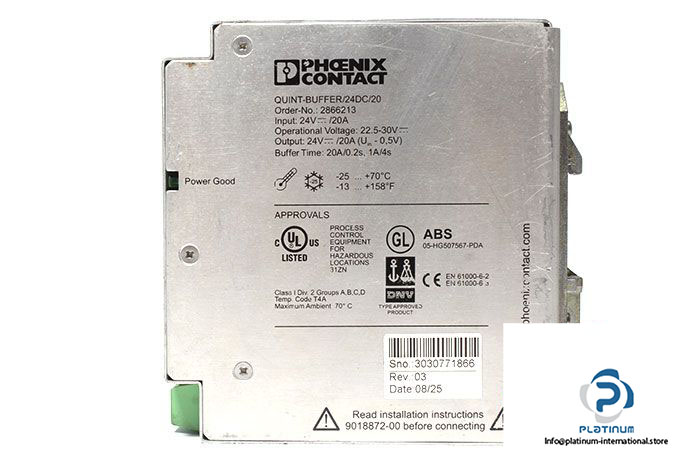

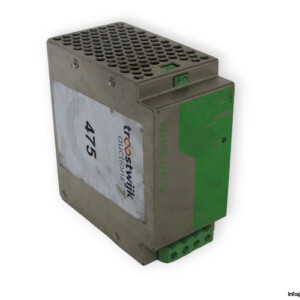

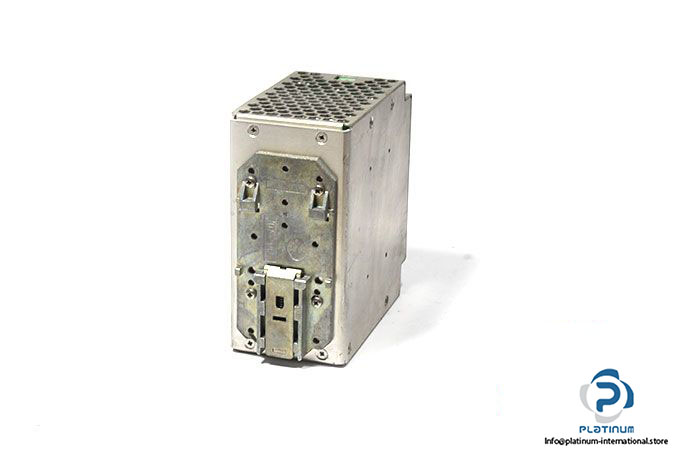

Phoenix Contact 2866213 Buffer Module

Manufacturer: PhoenixContact

Type:  Buffer module

Model:  QUINT-BUFFER/24DC/20

Part No.: ‎2866213 ‎

Inputs

Voltage: 24 V DC; 22.5 V … 30 V DC

Current Consumption: approx.  0.1 A, 0.6 A (charging process), 20.6 A (max.)

Buffer period: 0.2 s (20 A)

Type of protection: Transient surge protection

Outputs

Voltage: 24 V DC (depending on the input voltage)

Setting range of the output voltage (U_Set): 22 V DC … 28.5 V DC

Current: 20 A

Output power: 480 W

Connection method: Screw connection

Efficiency: > 95 %

Dimensions: WxHxD 64x130x125 mm

Protection: IP20

Weight: 0.96 kg
