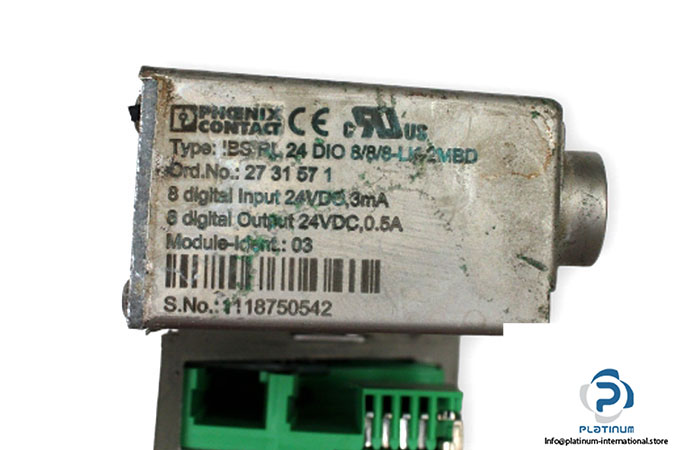

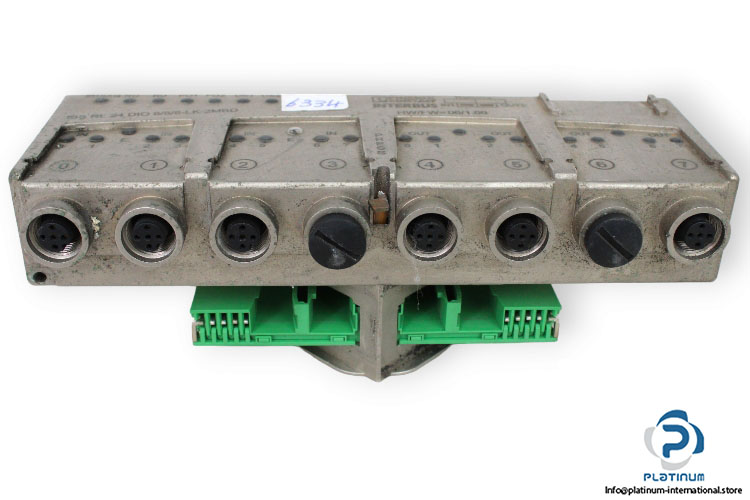

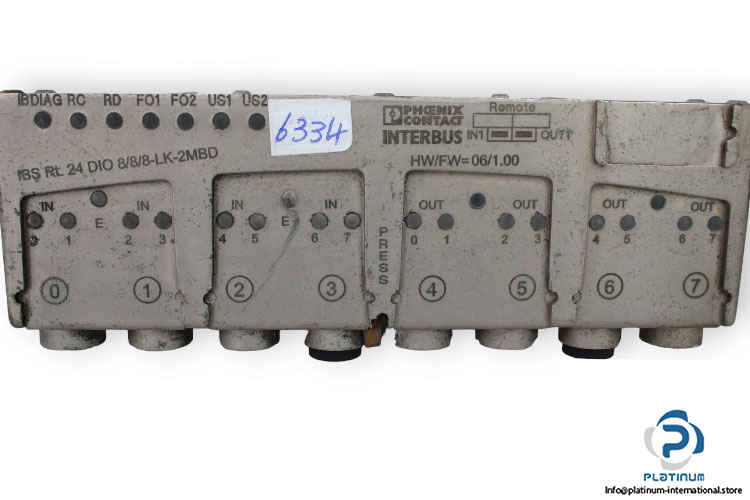

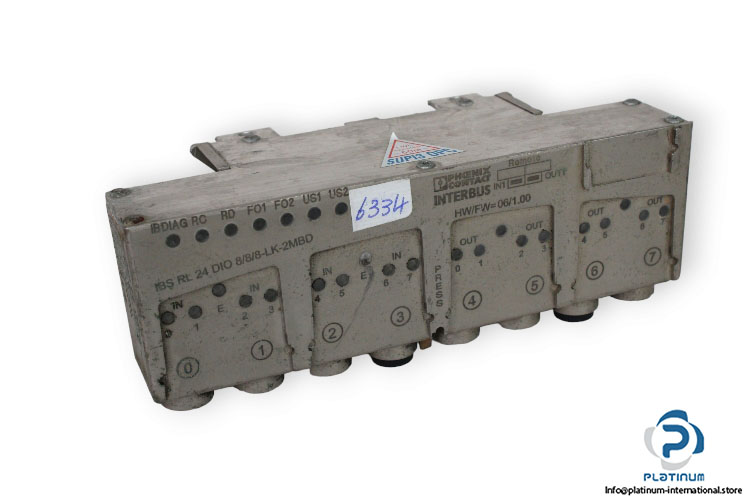

Phoenix Contact IBS RL 24 DIO 8/8/8-LK-2MBD Distributed I/O Device
69,99$
Fabricant : Phoenix Contact Type : Dispositif d'E/S distribué Modèle : IBSRL24DIO8/8/8-LK-2MBD Numéro de pièce : 2731571
Manufacturer: Phoenix Contact
Type: Distributed I/O device
Model: IBSRL24DIO8/8/8-LK-2MBD
Part No.: 2731571
Supply voltage: 24 V DC
Output voltage: 24 V DC
Output current: 0.5 A
Input voltage: 24 V DC
Input current: 3 mA
No. of digital input (DI): 8
No. of digital output (DO): 8
Nominal load, lamp, ohmic: 12 W
No. of channels: 16
Interbus Connection method: Optic fiber (polymer fiber 980/1000 µm)
Connection method: Fiber optic
Mounting type: Wall mounting
Transmission speed: 2 Mbps
Ambient temperature (operation): 0 … 55 °C
Degree of protection: IP65/IP67
Dimensions: 179 x 67 x 71 mm
