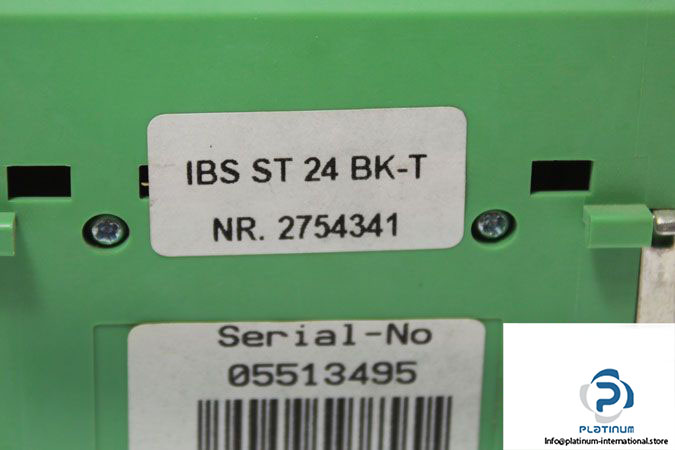

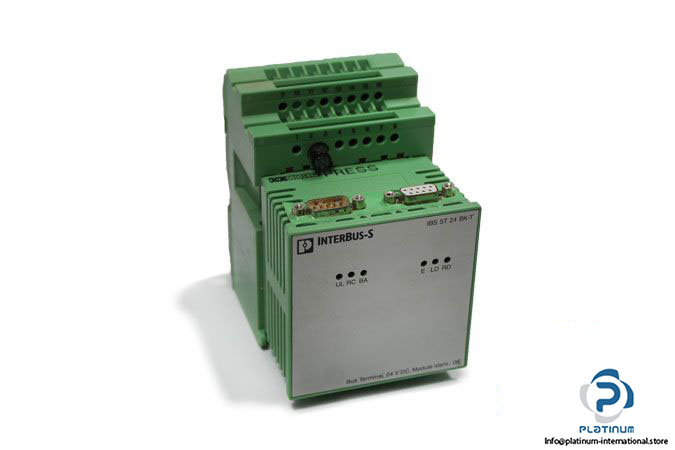

Phoenix Contact IBS ST 24 BK-T – 2754341 BUS Coupler

Manufacturer: Phoenix Contact

Type: Bus Coupler

Model: IBS ST 24 BK-T – 2754341

Order No.:  2754341

Connection Method: ST local bus connector

Transmission Speed: 500 kBit/s

Supply Voltage: 24 VDC

Supply Voltage Range: 18.5 … 30.5 V DC (including ripple)

Ripple: 3.6 Vpp

Current Consumption: typ. 150 mA (without ST module expansion

Number of Positions: 9

Connection Method: Screw connection

Fieldbus System: INTERBUS

Air Pressure (Operation): 86 … 108 kPa

Degree of Protection: IP20

Ambient Temperature (Operation): 0 … 55 °C

Dimensions: 116 X 81 X 116 mm
