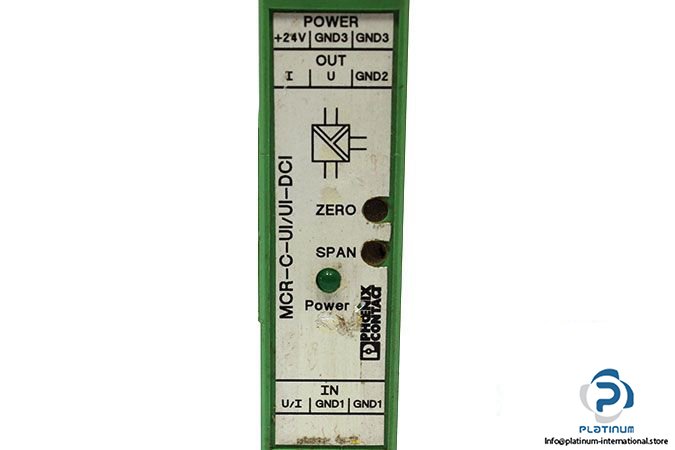

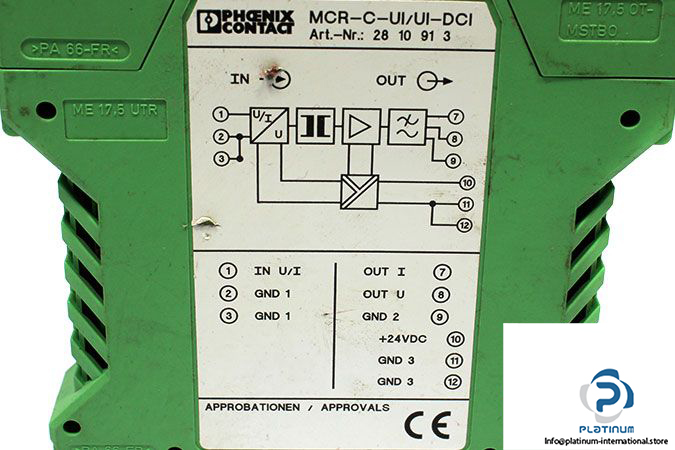

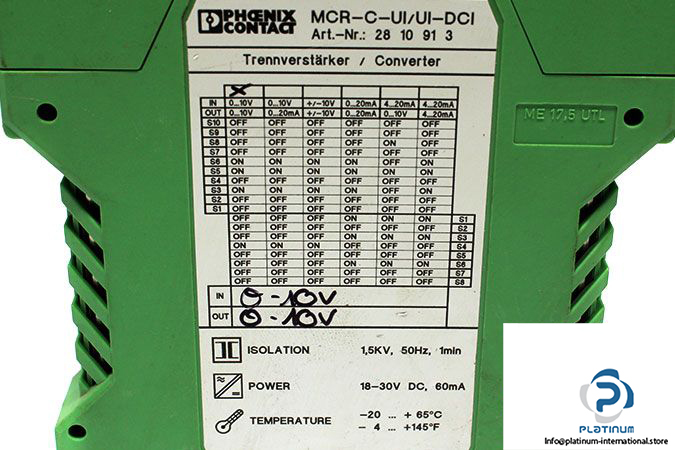

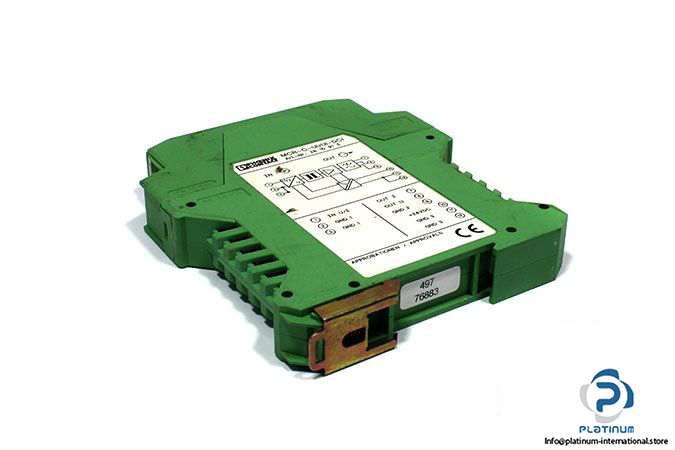

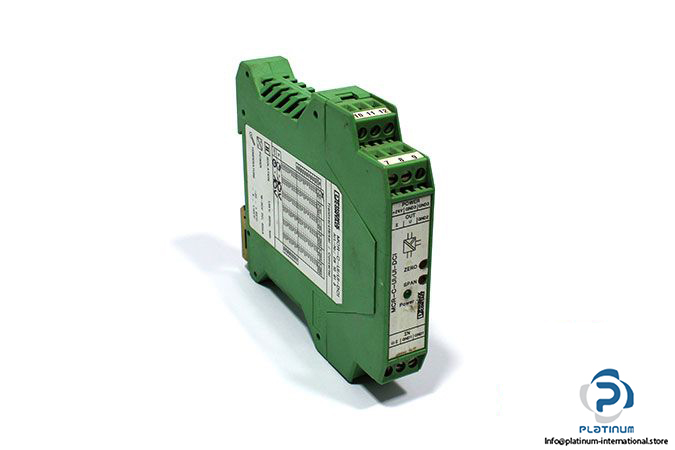

Phoenix Contact MCR-C-UI-UI-DCI Signal Conditioner

Manufacturer: PHOENIX CONTACT

Type: SIGNAL CONDITIONER

Model: MCR-C-UI-UI-DCI

Art No.: 2810913

Supply Voltage Range: 18 V DC … 30 V DC

Max. Current Consumption: 60 mA

Ambient Temperature: -20 °C … 65 °C

Analog Input/Output: 0/4 … 20 mA, 0 … 10 V

Degree of protection: IP20

Number of Channels: 1 Channel

Connection Method: Pluggable screw connection

Housing Material: Polyamide PA non-reinforced

Mounting Type: DIN rail mounting

Dimensions: 114 x 99 x 18 mm
