Pilz Pnoz X11P 24VAC 24VDC 7N/O 1N/C 2SO Safety Relay
Relais de sécurité Pilz PNOZ X11P relais de sécurité conçu pour les circuits de sécurité industriels avec alimentation 24 V AC/DC, contacts 7NO/1NC et performance de commutation fiable pour les systèmes de protection des machines.

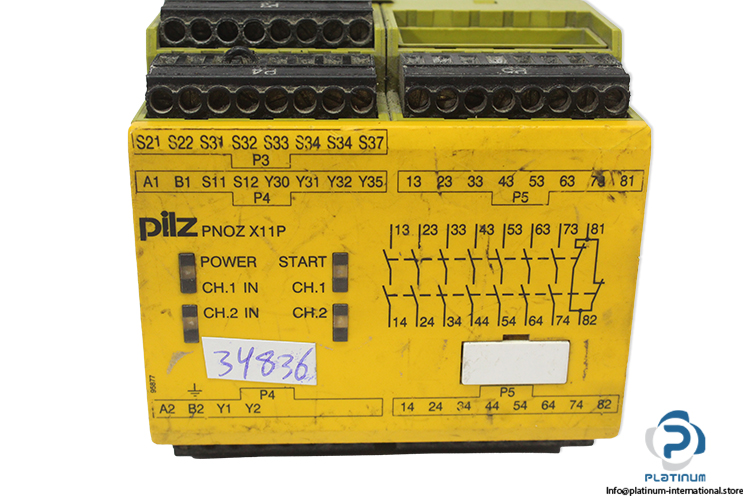

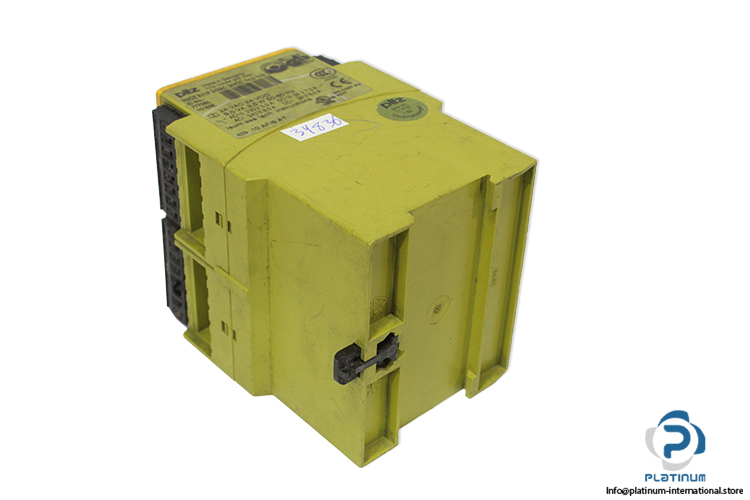

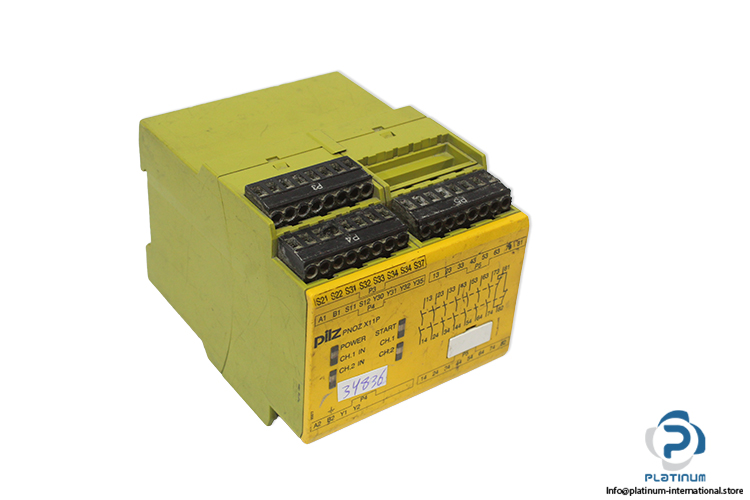

Pilz PNOZ X11P Safety Relay
The Pilz PNOZ X11P Safety Relay is a reliable safety monitoring relay designed for industrial automation systems and machine protection circuits. It provides dependable safety control with multiple normally open and normally closed contacts, ensuring secure switching for safety applications.
Manufacturer: Pilz
Type: Safety Relay

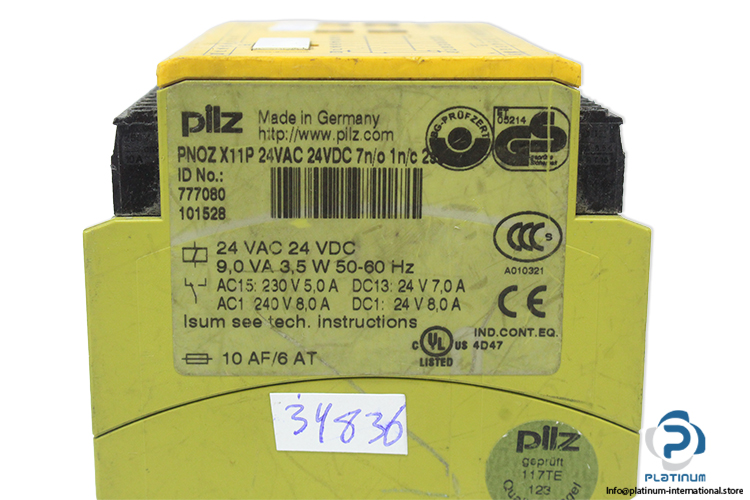

Model: PNOZ X11P 24VAC 24VDC 7N/O 1N/C 2SO
ID No.: 777080
Part No.: 101528
Series: PNOZX11
Switching Rating:
| Supply Voltage | 24 V AC/DC |
| Power Consumption | 9 VA / 3.5 W |
| Frequency | 50“60 Hz |
| Contact | 7 NO / 1 NC |
| AC15 | 230 V AC “ 5.0 A |
| DC13 | 24 V DC “ 7.0 A |
| AC1 | 240 V AC “ 8.0 A |
| DC1 | 24 V DC “ 8.0 A |
| Fuse | 10 AF / 6 AT |
| Protection Type (Housing) | IP40 |
| Ambient Temperature | -10 / 55 °C |
| Connection Terminal | Screw Terminal |
| Terminal Style | Plug-In |
| Dimensions | 94 x 90 x 121 mm |
| Recommendation | Ideal for machine safety circuits, emergency stop monitoring, and industrial safety control systems requiring reliable switching performance. |
