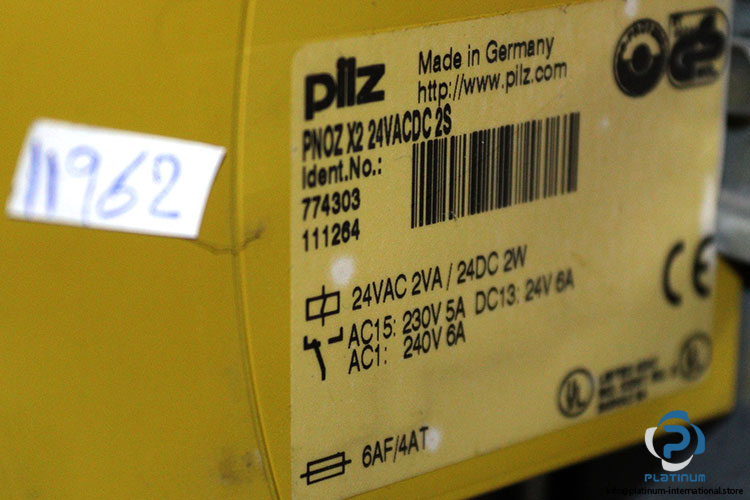

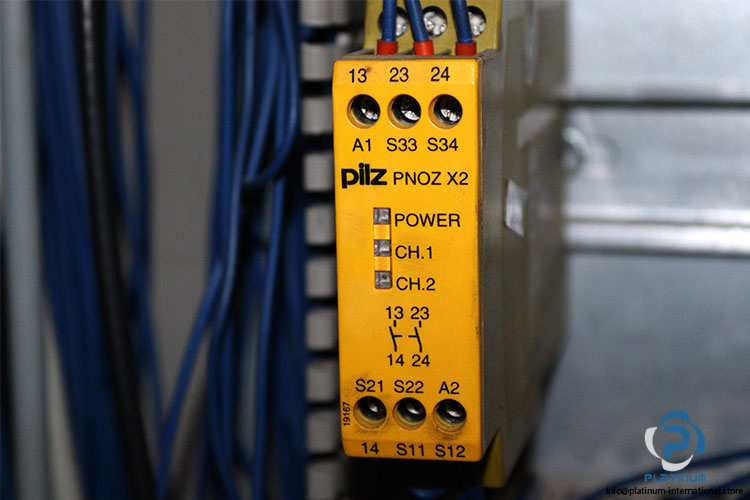

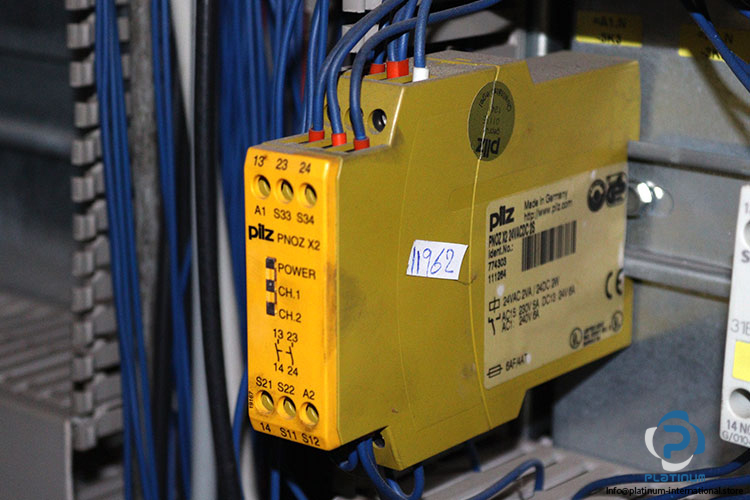

Pilz Pnoz X2 24VACDC 2S Safety Relay

Manufacturer: PILZ
Type: Safety Relay
Model: PNOZX224VACDC2S
Part No.: 774303 / 111264

Rated Supply Voltage: 24 V AC / DC
Power Consumption: 4.5 VA / 2 W
Inputs No.: 2-Channels
Contact: 2 Normally Open (NO)
Rated Contact Voltage:
AC1: 240 V
AC15: 230 V
DC13: 24 V
Rated Contact Current:
AC1 240 V: 5 A
AC15 230 V / DC13 24 V: 6 A
Type of Electrical Connection: Screw Terminals
Housing Material:
Front Plate: ABS UL 94 V0
Upper Part: PPO UL 94 V1
Ambient Temperature: -10 … 55 °C
Dimensions (H x W x D): 87 x 22.5 x 121 mm
