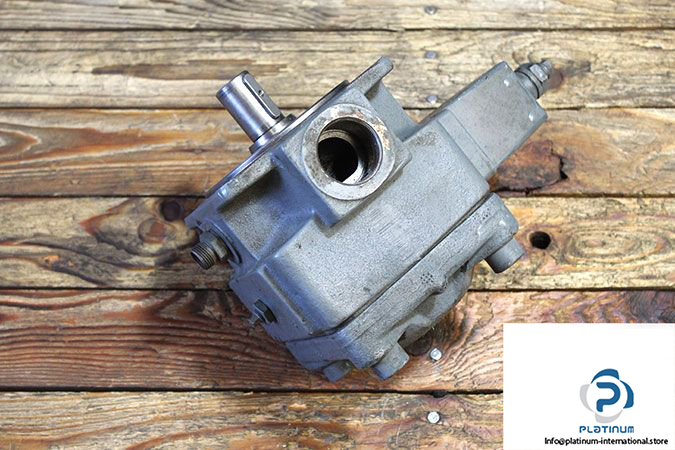

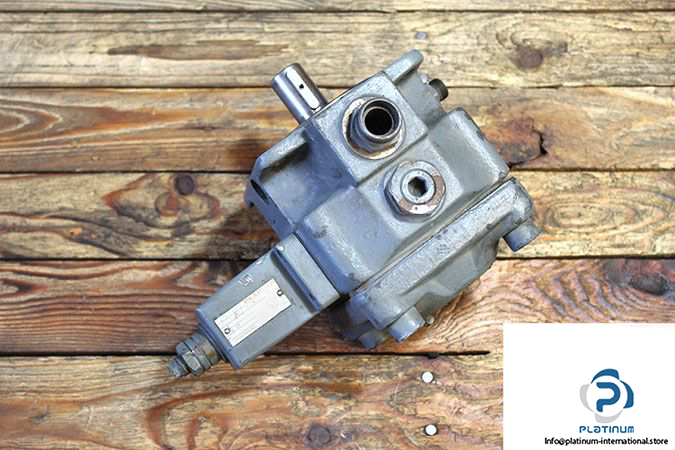

Rexroth 1PV2V3-30/40RA01MC40A1 Variable Vane Pump

Manufacturer: Rexroth

Type: Variable vane pump

Model: 1PV2V3-30/40RA01MC40A1

size: 40

Displacement: 32 cm³

Direction of Rotation: Clockwise

Shaft Diameter: 28 mm

Operating pressure: 40 bar

Speed Range: 950 …. 1800 rpm

Flow Rate at 1450 rpm: 47 l/m

Max. Torque: 235 N.m

Viscosity Range: 16…160 mm²/s

Weight: 23.2 Kg
