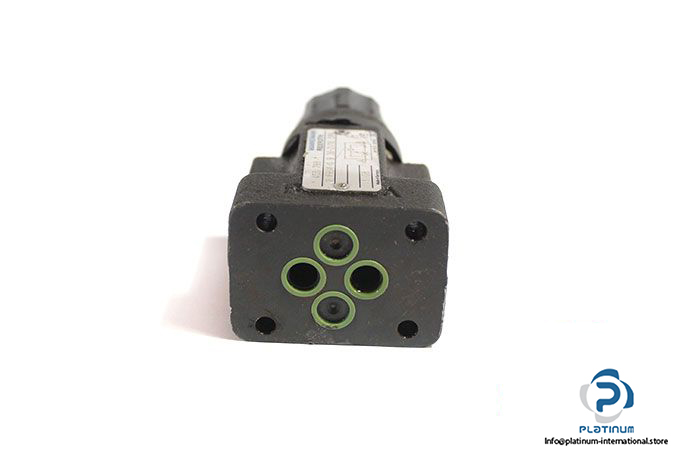

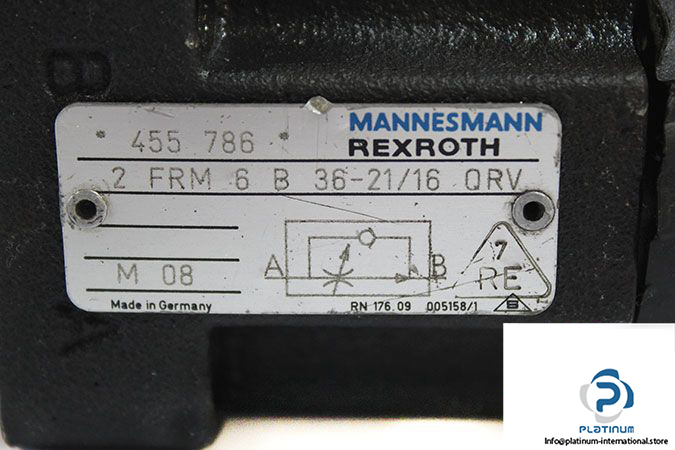

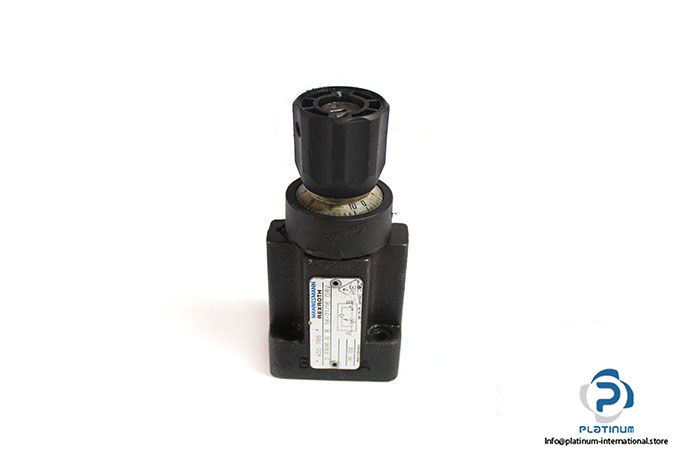

Rexroth 2 FRM 6 B 36-21/16 QRV Flow Control Valve

Manufacturer: MANNESMANN REXROTH

Type: Flow Control Valve

Model: 2 FRM 6 B 36-21/16 QRV

Size: 6

Adjustment Elements: Lockable Rotary Knob with Scale

Ambient Temperature Range: –20 …. +50 ^oC

Maximum Operating Pressure in Port A: 315 bar

Maximum Operating Pressure: 210 bar

Maximum Flow Rate: 32 l/min

Opening pressure: 0.7 bar

Hydraulic Fluid Temperature Range: –20 …. +80 ^oC

Viscosity Range: 10 … 800 mm²/s

Connection: Sup-plate

Weight: 1.11 kg
