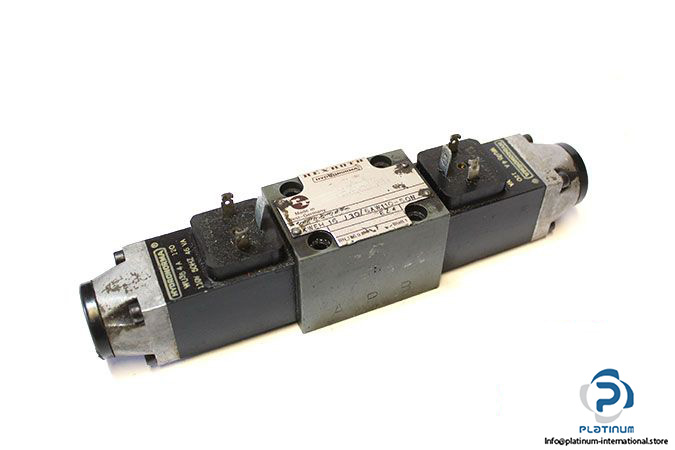

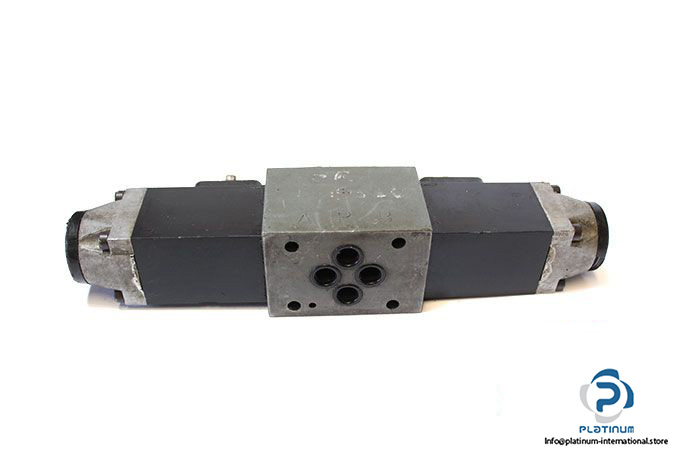

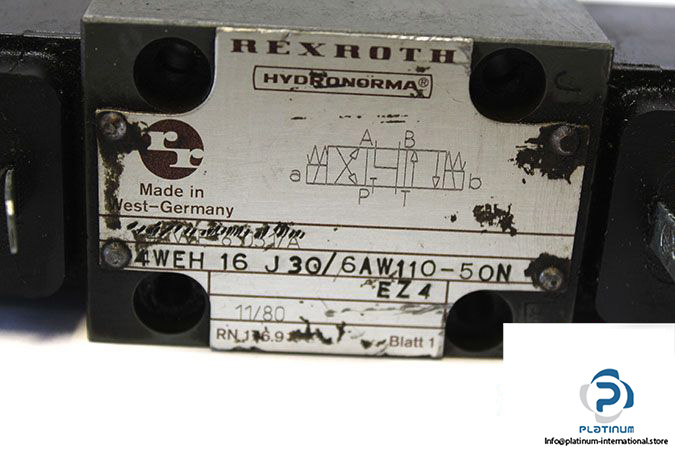

Rexroth 4WEH 16 J30/6AW110-50NEZ4 Pilot Operated Directional Valve
VANNE DIRECTIONNELLE PILOTÉE AVEC BOBINE SOLÉNOÏDE Vanne directionnelle pilotée Rexroth Hydronorma NG16 avec bobine solénoïde Hydronorma WU35 4A 120, offrant un contrôle hydraulique précis, des débits élevés et des performances robustes dans des applications exigeantes.
REXROTH HYDRONORMA 4WEH16J306AW11050NEZ4 PILOT OPERATED DIRECTIONAL VALVE WITH HYDRONORMA WU35 4A 120 SOLENOID COIL
The Rexroth Hydronorma 4WEH 16 J30/6AW110-50NEZ4 is a high-performance pilot operated directional valve engineered for precise control in hydraulic systems. Built to handle demanding industrial operations, it offers excellent flow capacity, high operating pressures, and compatibility with a wide viscosity range. Supplied with a Hydronorma WU35 4A 120 solenoid coil for reliable actuation.
Manufacturer: Rexroth Hydronorma
Type: Pilot Operated Directional Valve
Model: 4WEH 16 J30/6AW110-50NEZ4
Main Valve Technical Information
- Fluid: Oil
- Size: NG16
- Operating Pressure Max.: 280 bar
- Pilot Pressure Max.: 250 bar
- Flow Rate Max.: 1100 l/min
- Viscosity Range: 2.8 / 500 mm²/s
- Connection: Sub-Plate
- Ambient Temperature Range: -30 / 50 °C

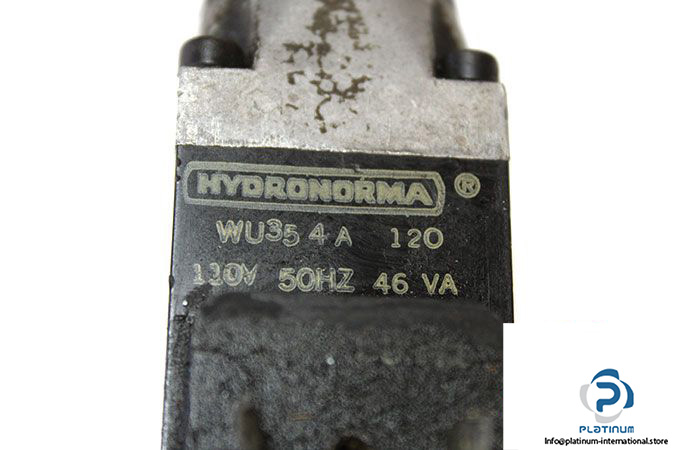

Attachment: Hydronorma WU35 4A 120 Solenoid Coil
Solenoid Coil Technical Information
- Manufacturer: Hydronorma
- Type: Solenoid Coil
- Model: WU35 4A 120
- Supply Voltage: 110 V AC
- Frequency: 50 Hz
- Power Consumption: 46 VA
