Rexroth 521 209 500 0 ISO Cylinder

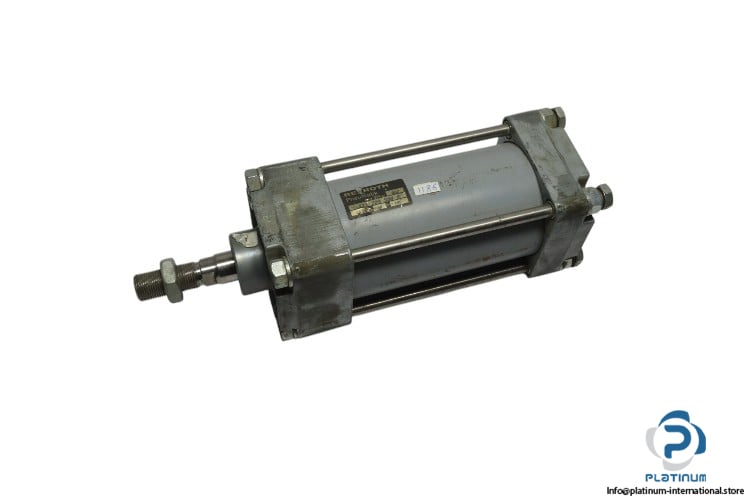

REXROTH ISO Cylinder 521 209 500 0

The REXROTH ISO Cylinder 5212095000 is designed for high-performance pneumatic applications. With a bore diameter of 80 mm and a stroke length of 100 mm, this cylinder offers reliable and efficient operation for various industrial needs. It features a square shape, male piston rod end, and operates on compressed air with a maximum pressure of 10 bar.

Manufacturer: REXROTH

Type: ISO Cylinder

Model: 521 209 500 0

Technical Specifications

• Media: Compressed Air
• Bore Diameter: 80 mm
• Stroke: 100 mm
• Bore x Stroke: 80 x 100 mm
• Rod Diameter: 22 mm
• Frame Dimensions: 95 x 255 mm
• Pneumatic Connection: G 3/8
• Pressure Max.: 10 bar
• Operation Mode: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
