Rexroth 522 205 012 0 ISO Cylinder
Utilisé
En stock1 unitéPrêt à être expédié
ISO Cylinder
REXROTH ISO Cylinder 522 205 012 0 designed for compressed air applications with a bore diameter of 80 mm, stroke of 125 mm, and a maximum pressure of 10 bar. It features a square shape with a male piston rod end for efficient operation in pneumatic systems.001212520552280AirboreCompressedControlCylinderDoubleEndISOmalemmOperationPistonPneumaticRexrothRODStrokeSystems
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

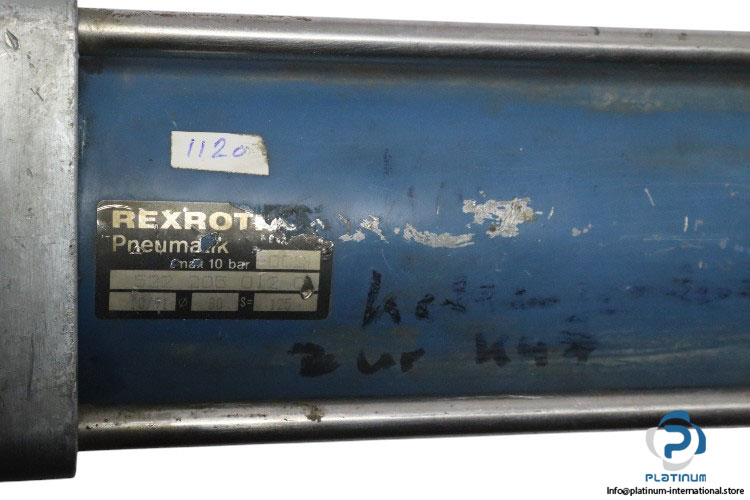

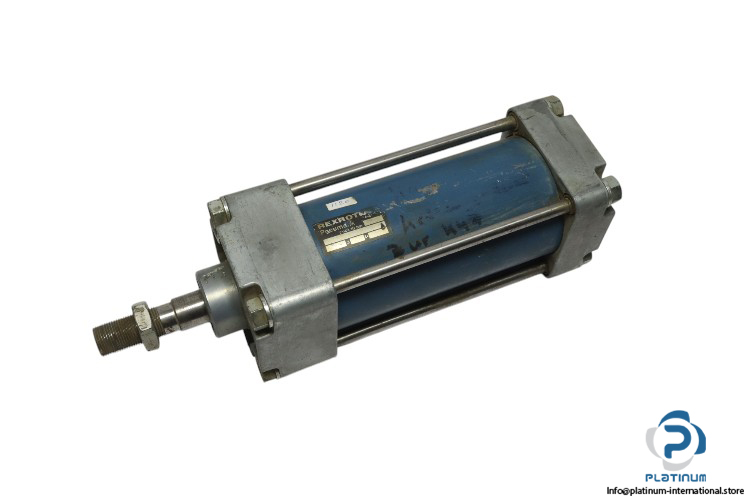

REXROTH ISO Cylinder 522 205 012 0
The REXROTH ISO Cylinder 5222050120 is engineered for high-performance pneumatic applications. With its robust construction, it provides reliable motion control for various industrial systems. Featuring a bore diameter of 80 mm and a stroke length of 125 mm, this cylinder is designed for precise and efficient operation in demanding environments.
Manufacturer: REXROTH
Model: 522 205 012 0
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 80 mm
- Stroke: 125 mm
- Bore x Stroke: 80 x 125 mm
- Rod Diameter: 22 mm
- Frame Dimensions: 95 x 275 mm
- Pneumatic Connection: G 3/8
- Pressure Max.: 10 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
