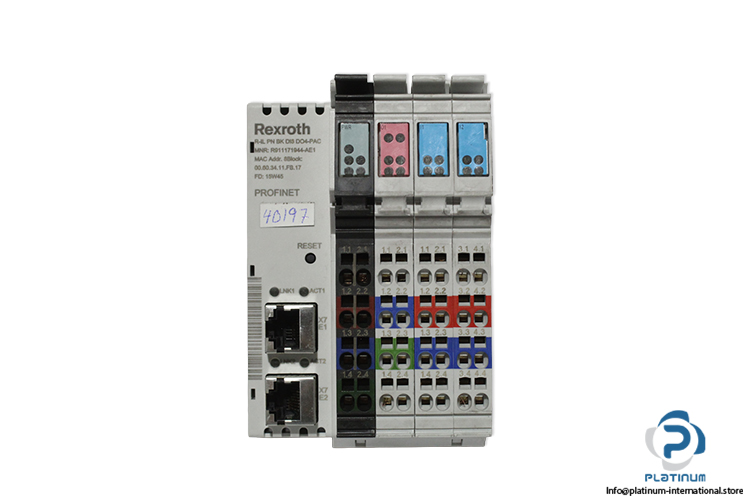

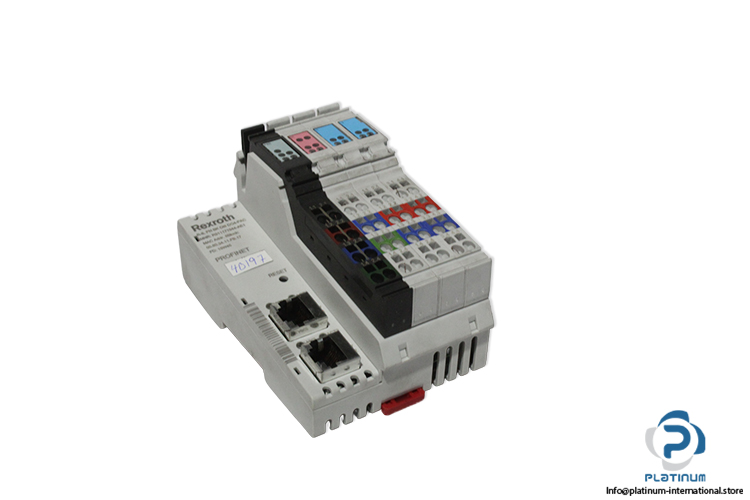

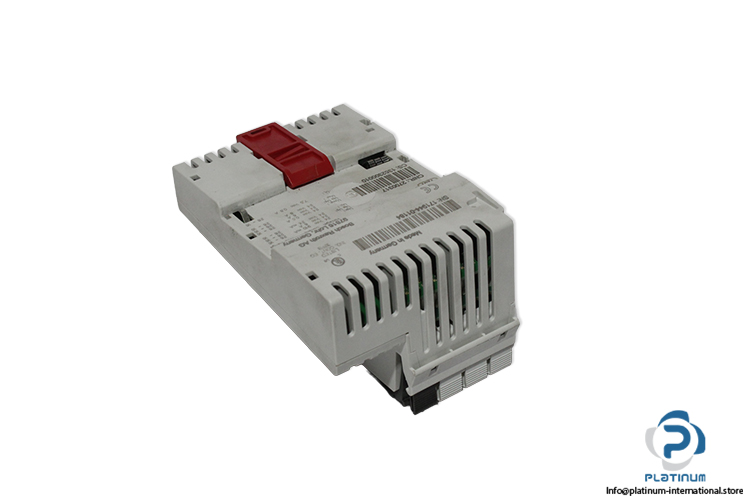

Rexroth R911171944 Interface Module
Nouveau
En stock1 unitéPrêt à être expédié
777,77$
Interface Module The Rexroth R-IL PN BK DI8 DO4-PAC is a 12-channel PROFINET interface module with dual RJ45 ports, designed for reliable industrial automation and I/O connectivity.
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

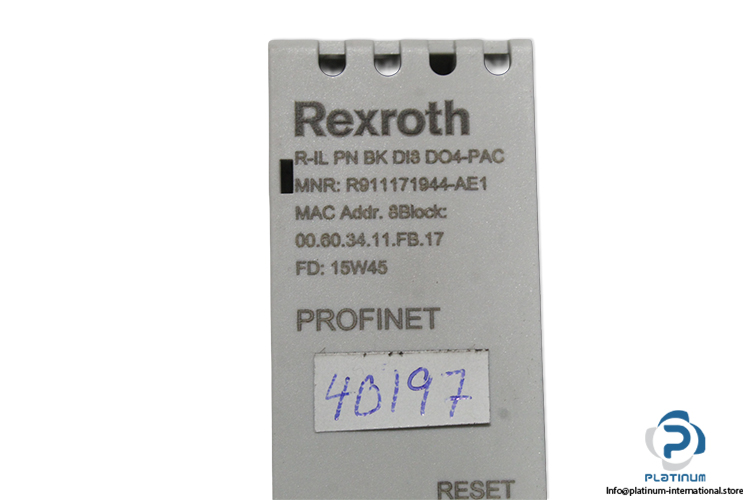

| MNR. | R911171944 |
| MAC Addr. | 8Block 00.60.34.11.FB.17 |
| FD | 15W45 |

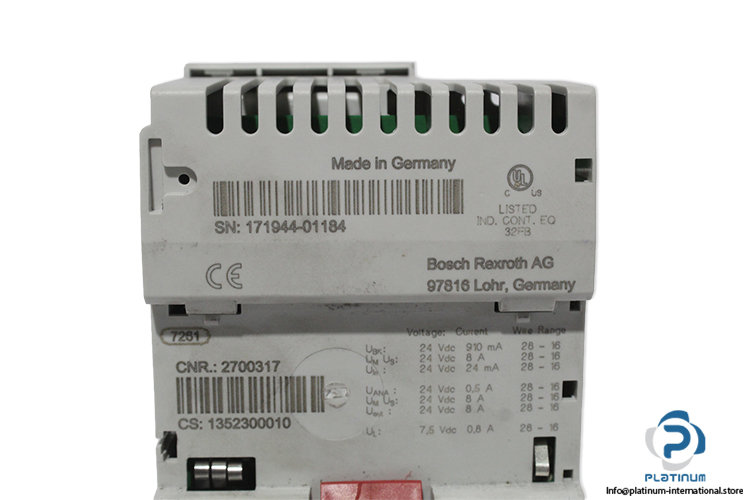

| CNR . | 2700317 |
| CS | 1352300010 |
| SN | 171944-01184 |
| Communication | Profinet |
| Connection type | Tension spring connection |
| Connectivity technology | 2-wire, 3-wire technique |
| Number of channels | 12 |
| Width [mm] | 80 |
| Height [mm] | 120 |
| Depth [mm] | 71.5 |
| International protection code | IP20 |
| Short circuit protection, overload protection of the outputs | Free-wheeling circuit in the output driver |
| Total current [A] | 2 |
| Conductor cross-section | AWG: 28 ... 16 |
| Flexible | 0.08-0.5 mm²:rigid: 0.08-0.5 mm² |
| Permissible air humidity (during operation) [%] | 10-95 |
| Permissible air humidity (storage) [%] | 10-95 |
| Permissible air humidity (transport) [%] | 10-95 |
| Ambient temperature (storage and transport) [°C] | -40-85 |
| Ambient temperature (during operation) [°C] | -25-55 |
| Air pressure (operation) | 70-106 kPa (up to 3,000 m above sea level) |

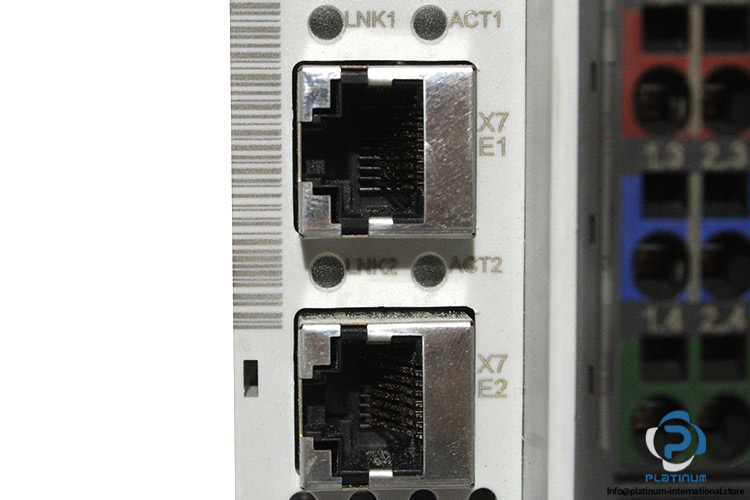

| Physical Ports | 2 x RJ45 |
| Stock key | CON-003 |
| Condition | New |
| SKU | 1100603 |
| Weight | 0,26 |
