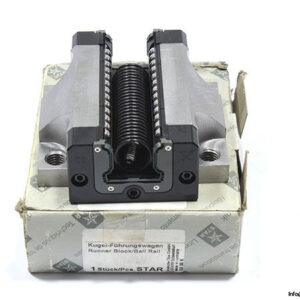

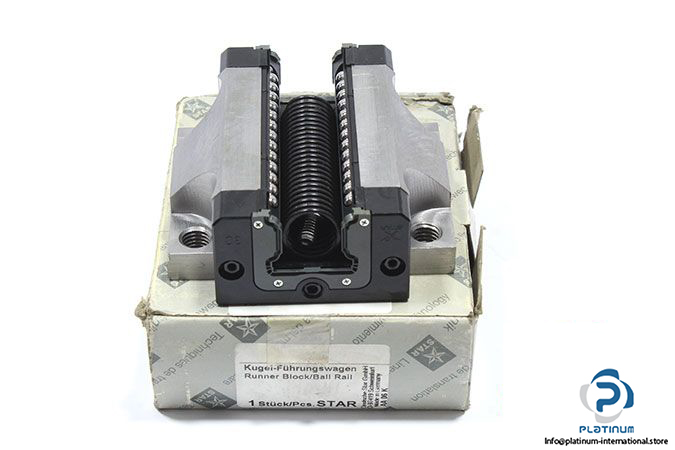

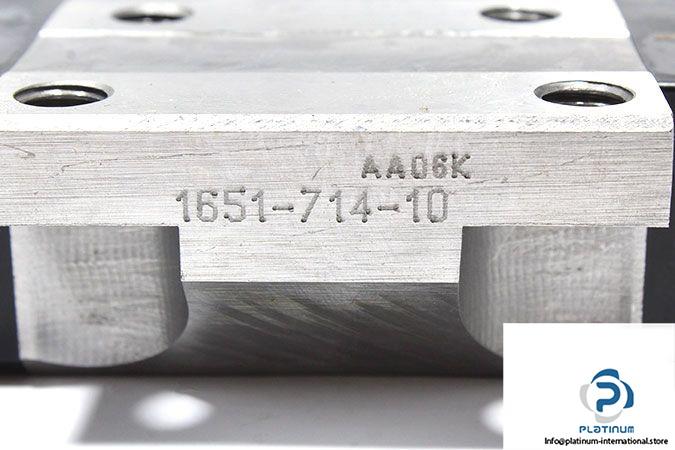

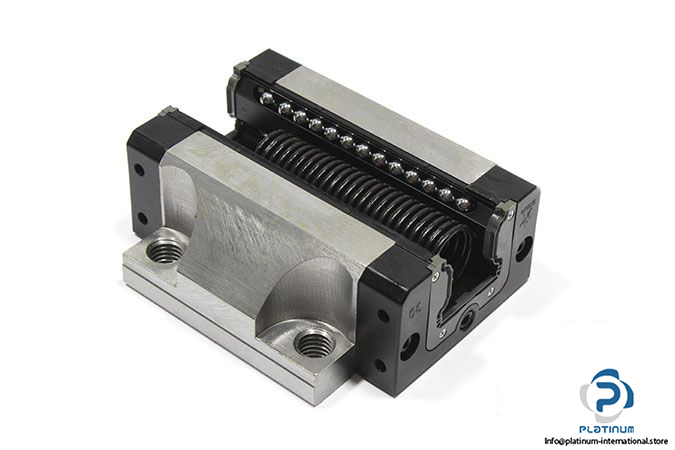

Rexroth Star 1651-714-10 Ball Runner Block FNS

Manufacturer: Rexroth Star

Type: Ball Runner Block FNS

MNR: 165171410

Size: 30 mm

Mechanical Format: KWC

Design: FNS – Flanged, Normal, Standard Height

Format: CS – Carbon Steel

Maximum Acceleration Travel a_max: 500 m/s²

Maximum Permissible Speed v_max: 5 m/s

Dynamic Load Capacity C: 31700 N

Static Load Capacity C₀: 41300 N

Dynamic Torsional Moment Load Capacity M_t:  540 Nm

Dynamic Longitudinal Moment Load Capacity M_L: 290 Nm

Accuracy Class: N – Normal

Preload Class: C1 – Low

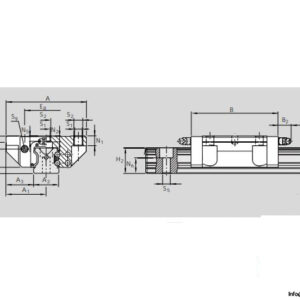

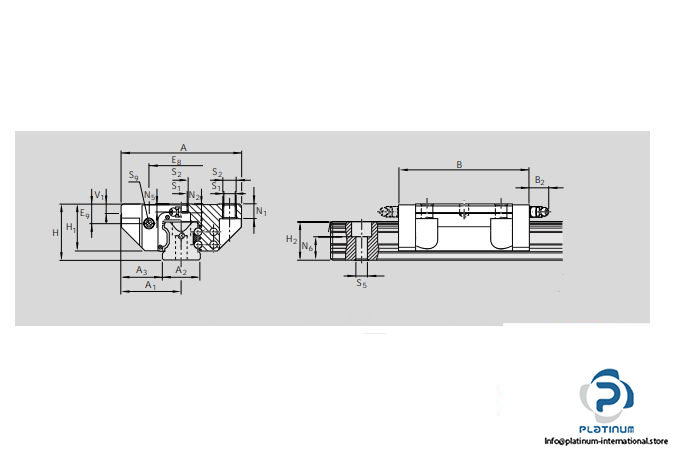

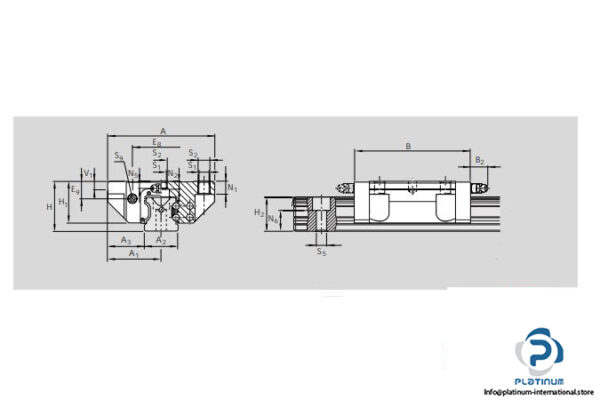

Dimensions

Width (A): 90 mm

Length (B): 94 mm

Height (H₁): 35 mm

Admissible Operating Temperature: -10 … +80 °C

Weight: 1.1 kg
